Buy Schellenberg 22637 RD35 Electric belt winder 14 mm Tensile force (max.) 12 kg Structure

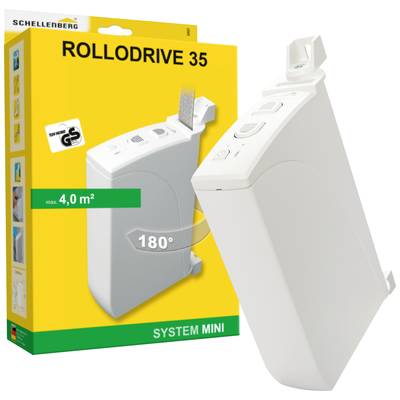

Packaging for the Schellenberg Rollodrive 35, suitable for roller shutters up to 4 m². Displays the device with buttons and mounting brackets.

Automatic seat belt retractor in an unfolded state against a white background, showing the housing and mechanism.

'A hand is pressing a button on a blind control panel on the wall.'

Roller Shutter Motor with Power Supply, Instructions, Screws and Plugs for Installation.

A white, rectangular roller shutter motor with 180-degree rotational capability. At the top, there is a belt that is inserted into the device.

Technical drawing of a rectangular device with three views: side view, front view, and top view, with dimensions in millimetres.

1/6

19 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 72.26 / piece)

€

Report legal concerns

Highlights & Details

Schellenberg Electric belt winder RD35 14 mm

Motorized screw-on winderFor plastic shutters up to 4 m² areaWith timer and safety cut-offMini roller blind system with 14 mm belt width, hole spacing 180 mmPower supply via a mains cable, end-position protection in case of power failure

Technical specifications

Hole spacing: 180 mmRoller shutter system: MiniShutter surface: Max. 4.0 m²Surface area for plastic roller shutters: Max. 4.0 m²Surface area for aluminum roller shutters: Max. 2.0 m²Area for wooden roller shutters: Max. 1.0 m²Belt length at 14 mm Width: 5.5 m at 1.0 mm Belt thickness, 4.3 m at 1.3 mm Belt thicknessPower cable length 1.9 mStandby consumption: Less than 0.7 W.POWER CABLE 24 V DC/1.2 ASpeed: Max. 34 rpmTensile force/initial tensile force: Max. 12 kgEnd tensile force: 7 kg on belt strapShort-term operation: 5 minutesProtection class IIIProtection class: IP20, only for dry roomsPosition accuracy 5 mmNumber of switching times: 2 (up and down)Setting range for automatic sun system: 3,000 to 10,000 LuxPermissible ambient temperature: 0 °C to +40 °C.Accuracy of the clock: Approx. +/- 1 minute/month

Nominal power: 29 W

Factory colour: White

Dim: (W x H x D) 38.5 x 199 x 135.5 mm

Depth: 135.5 mm

Height: 199 mm

Width: 38.5 mm

Belt width: 14 mm

Hub: Not required

Mounting type: Structure

Operating voltage: 230 V

Tensile force (max.): 12 kg

Nominal torque: 2.5 Nm

Product type: Electric belt winder

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2624176 Schellenberg 22637 RD35 Electric belt winder 14 mm Tensile force (max.) 12 kg Structure

Description

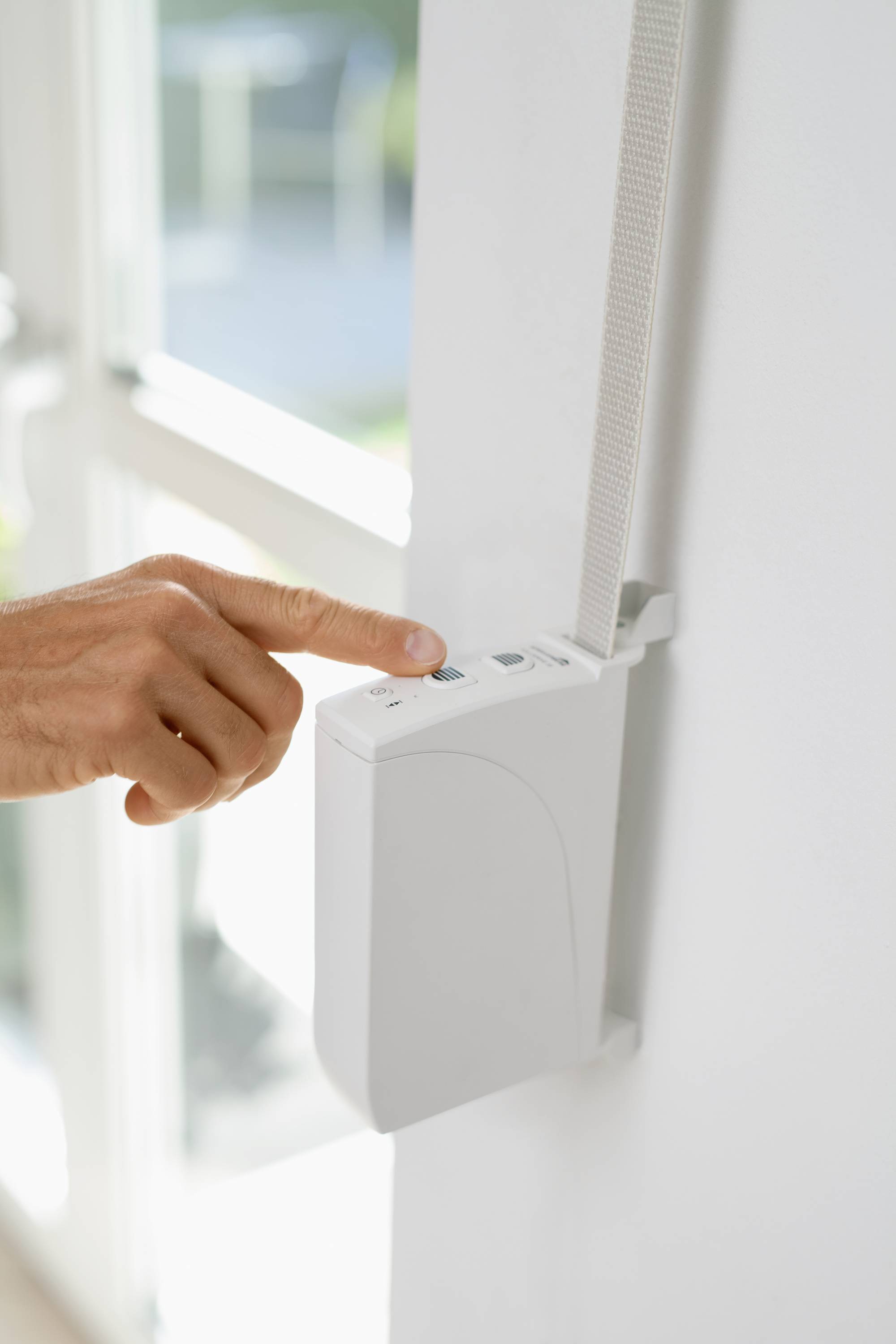

The Schellenberg RolloDrive 35 allows you to operate a shutter conveniently at the push of a button or with automatic time control. The electric belt winder is suitable for plastic roller shutters up to a surface of 4 m² and is compatible with the mini roller shutter system with a belt width of 14 mm. It is surface-mounted on the wall or in the window glazing and is ideal for rental objects, as the opening of the roller shutter box is not necessary for installation.The built-in timer makes it possible to have the shutter automatically up or down at the desired times. For this purpose, an up or down ramp can be programd. If the roller shutter blocks or hits an obstacle, the electric belt winder stops automatically. Large buttons on the RolloDrive 35 make it easier to operate and adjust the end positions. The power is supplied via a mains cable.As an extension, the roller shutter can be controlled according to the position of the sun with a separately available sun sensor. This means, for example, that Furniture and plants are protected from excessive sunlight.
