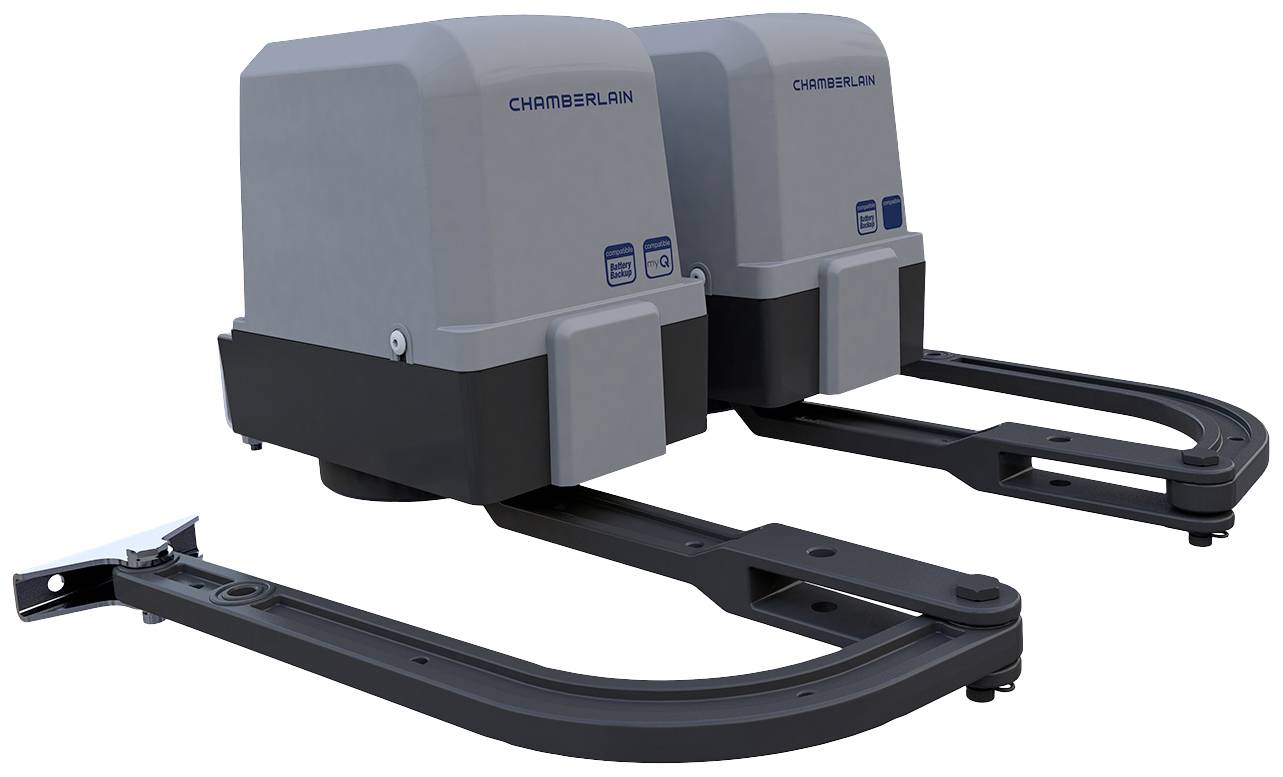

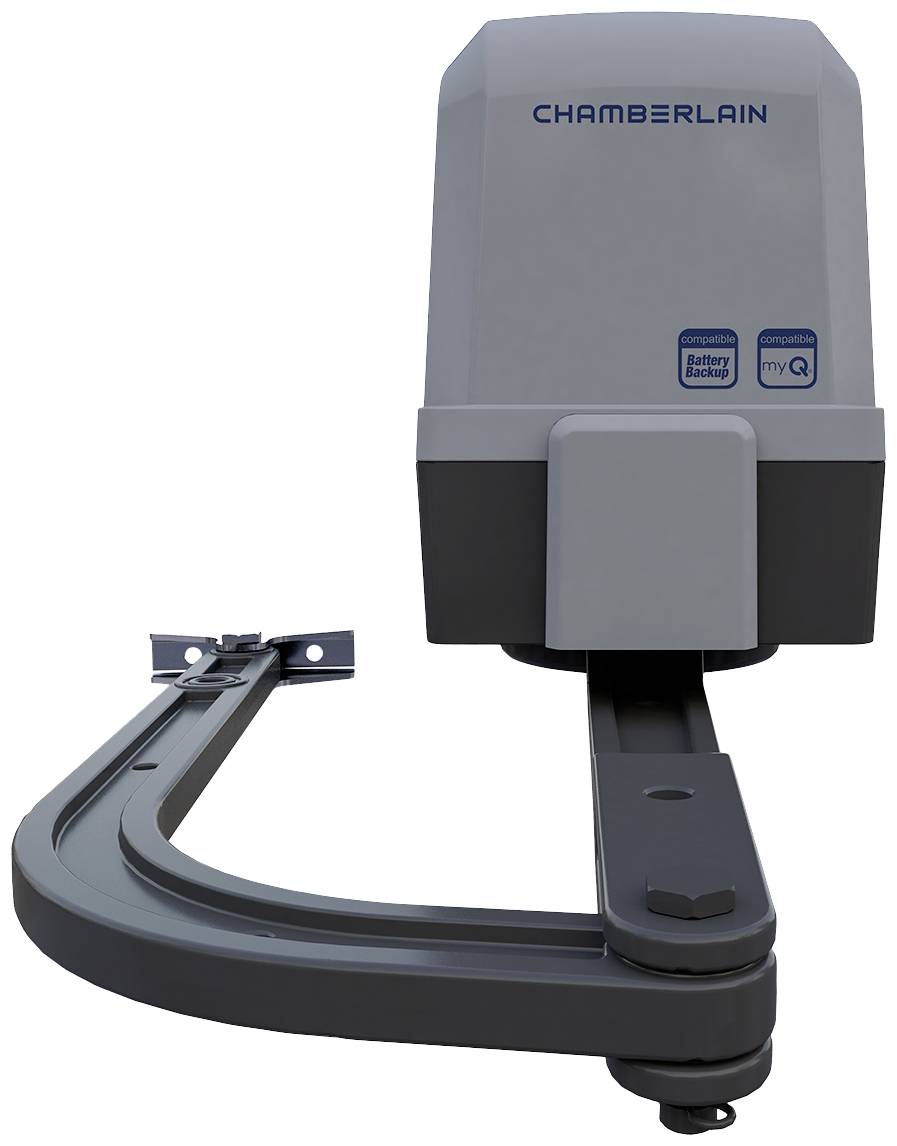

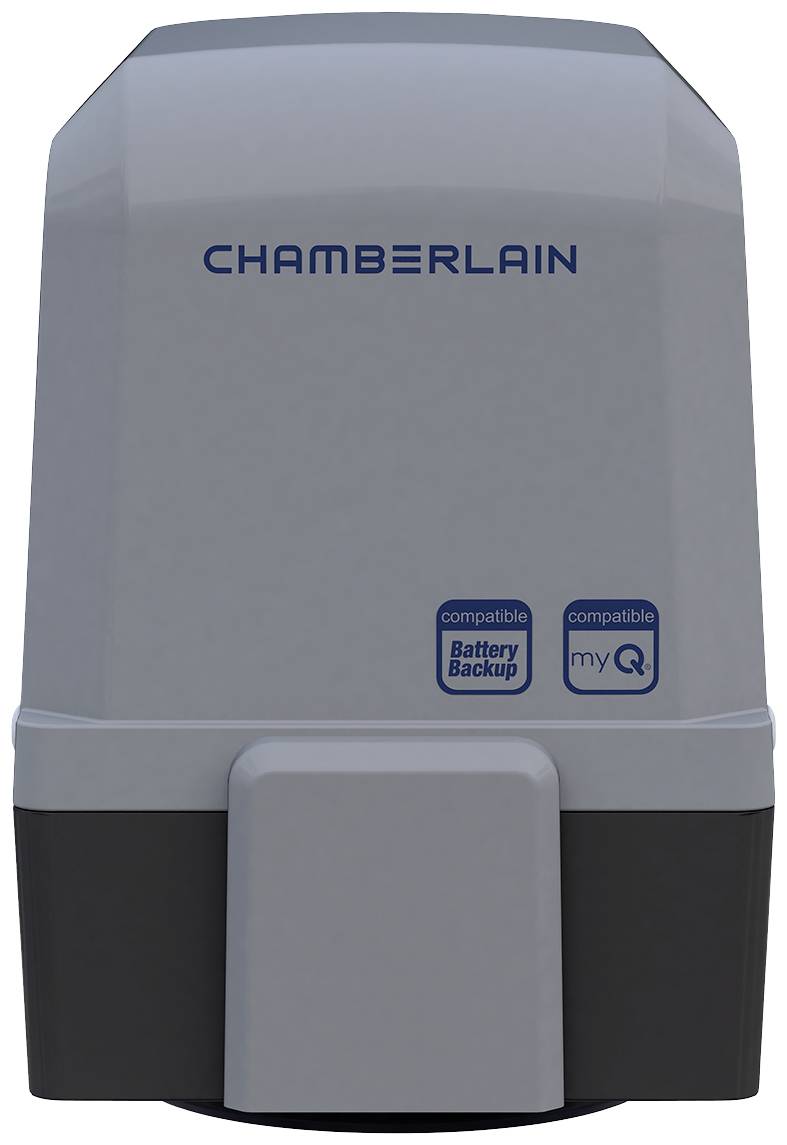

Chamberlain CHAA250EVC CHAA250EVC Side hinge door opener
EAN:
Part number:
Item no:
Number
Total (€ 617.65 / piece)
€ 617.65
plus VAT.
Only 2 Piece(s) available
Highlights & Details
High-powered model CHAA250EVC
- For one and two-wing revolving doors with wide postsapp-controlled with optional MyQ starterIncl. Two 4-channel hand-held transmitters
Technical specifications
- Opening time for 90 degrees: 13 - 15 secondsMaximum cycles per day: 30Standby consumption: 3.2 W.Max. Wing width/weight: 2.5 m - 100 kg / 2.0 m - 150 kg / 1.5 m - 200 kgWorking temperature: -20 °C to +55 °CProtection class: IP44
- Product type
Side hinge door opener
n.rel.
- Factory colour
Grey
- Operating voltage
230 V
- Weight
20 kg
- Hub
Not required
- Data exchange
Bidirectional (bi)
- Frequency
433 MHz
868 MHz
- Features
incl. 2 remote controls
- Power consumption
100 W
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2587770 Chamberlain CHAA250EVC CHAA250EVC Side hinge door opener
Description

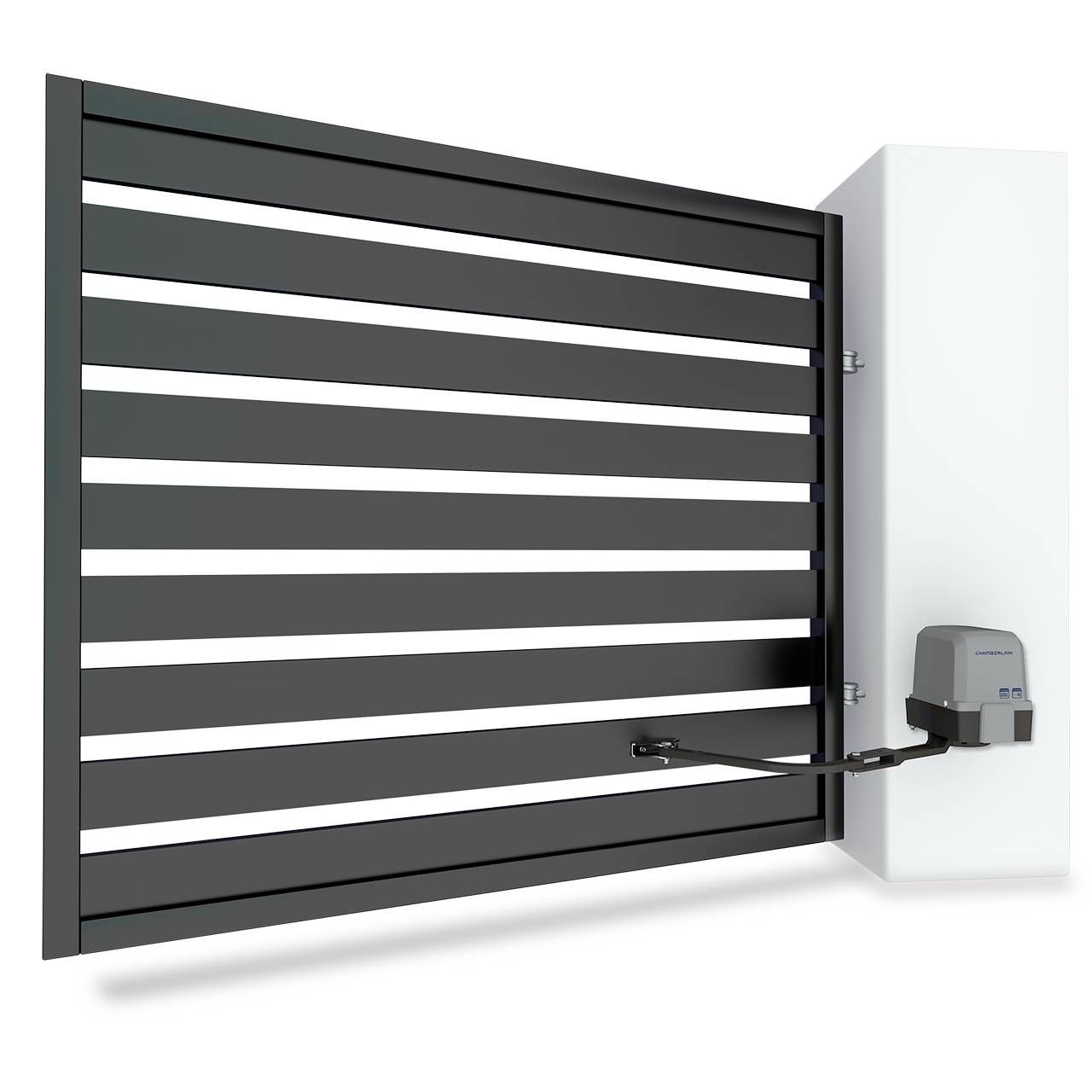

More quality of life thanks to an intuitively operable technology – this is what the CHAA250EVC rotary gate drive promises for one and two-wing rotary doors with wide posts. The model is MyQ-compatible on request and can be controlled from anywhere via smartphone or tablet – no matter where you are. With the optional MyQ Starter Kit, you can connect your external door drive via the router to the Internet.
This text is machine translated.
This text is machine translated.
Features
- Automatic obstacle detectionManual unlocking or opening of a wing is possible.
Scope of delivery
- 2 x drive
- 2 x articulated arm
- Control
- Fasteners

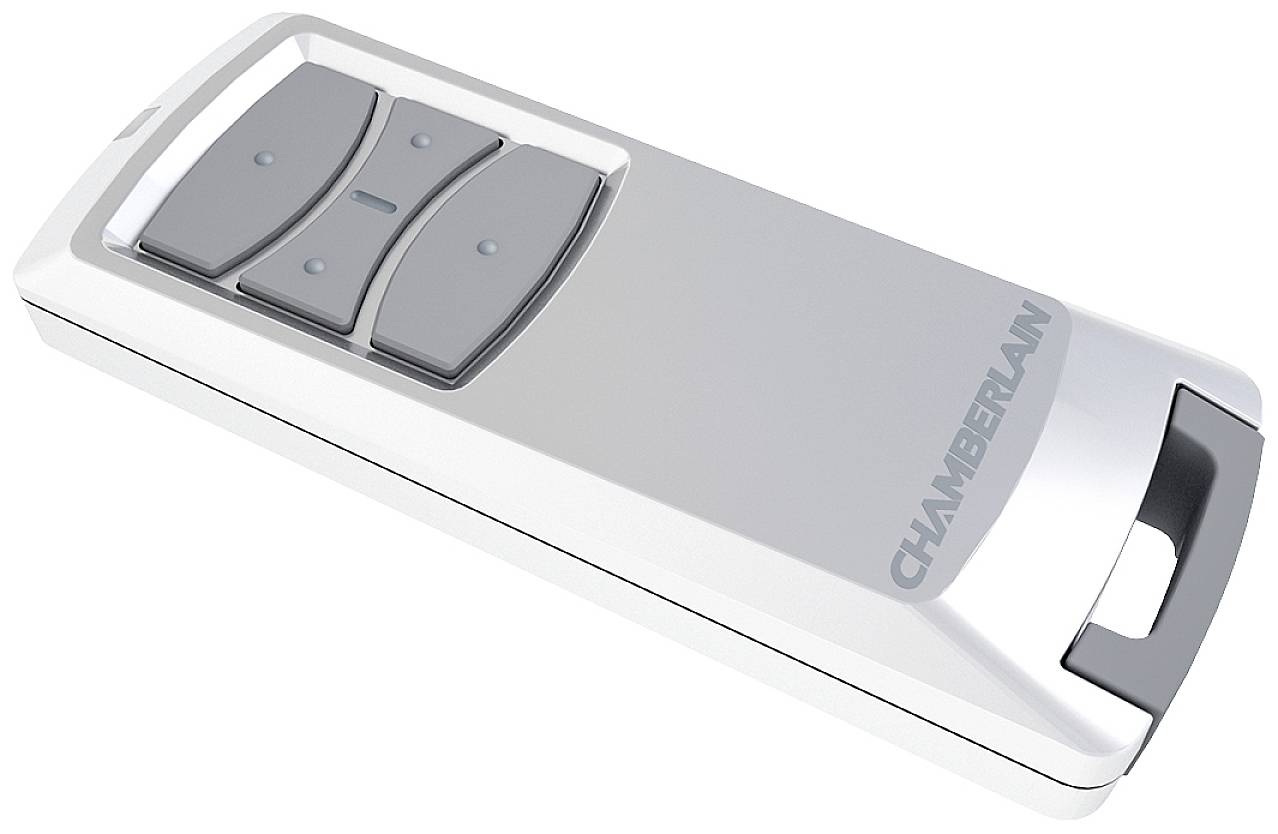

- 2 x hand-held transmitter 4-channel

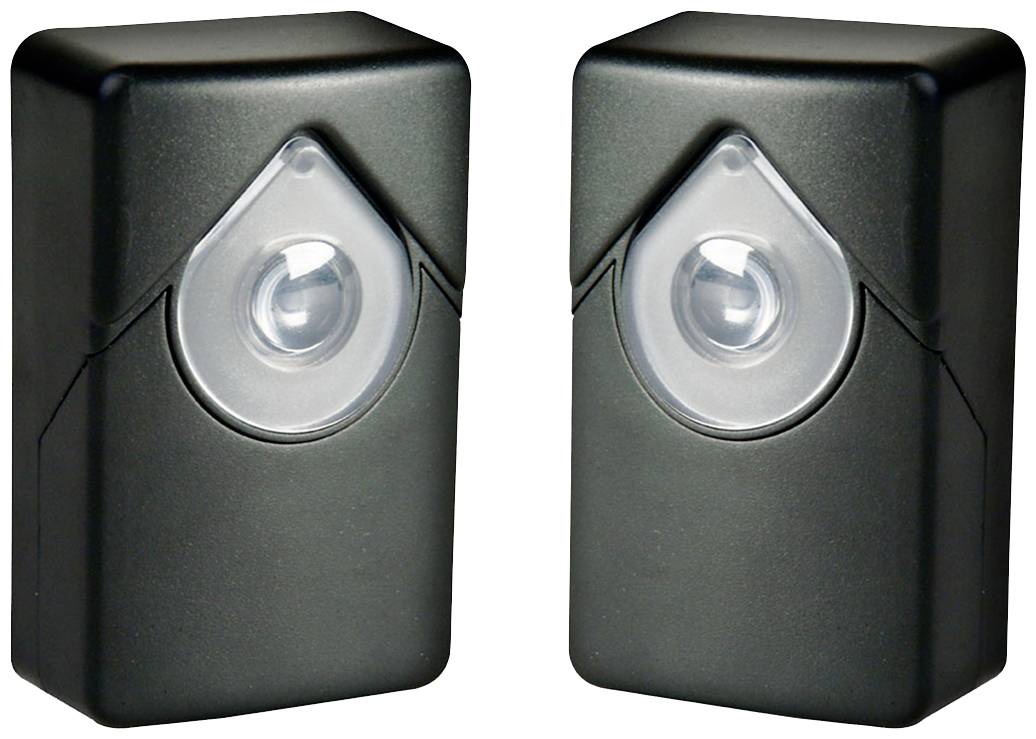

- Infrared light barrier set
- 2 x 2 keys for emergency release.
System requirements
- IOS, Android
