Buy HOMEPILOT 10142345 RolloTron classic smart Electric belt winder 23 mm Tensile force (max.) 45 kg Flush mount

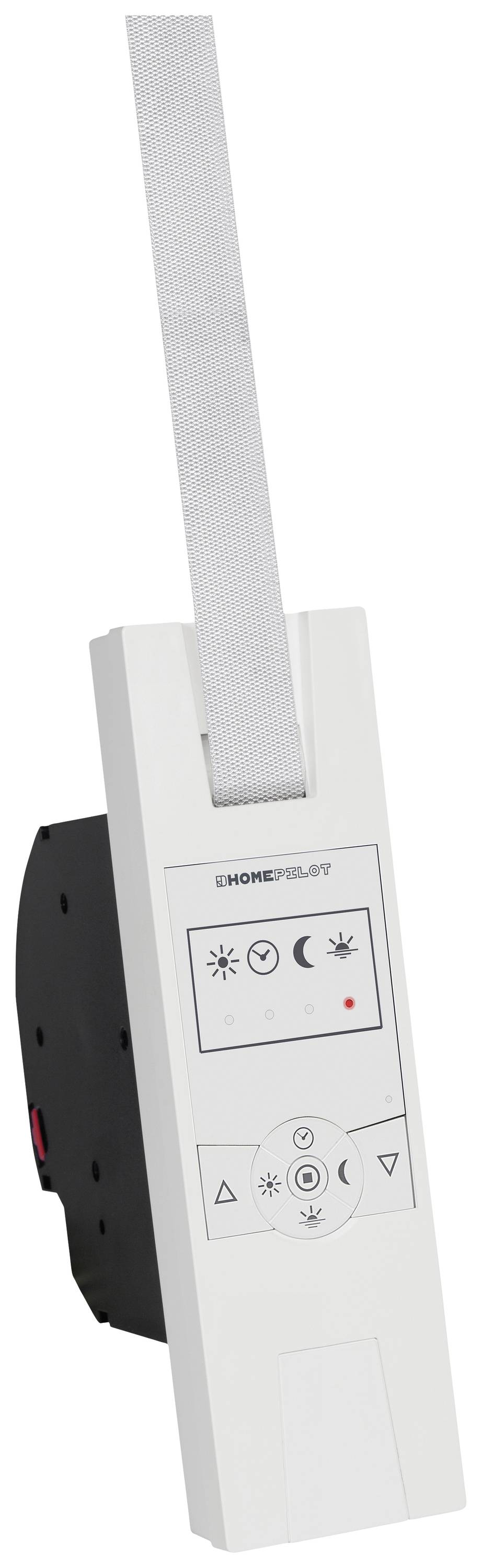

White remote control with small buttons and display for controlling sun protection solutions, with a grey strap attached.

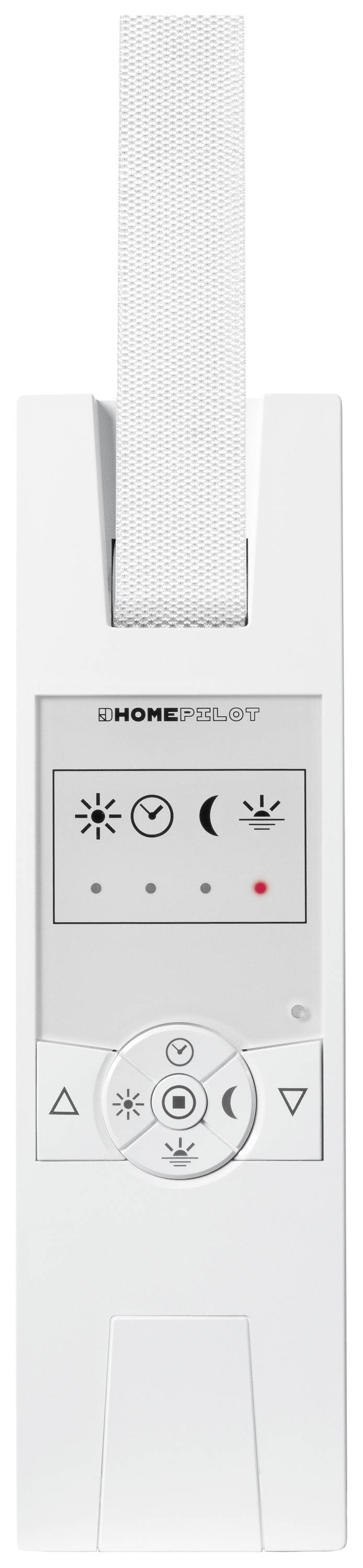

Remote control with button and display control for window blinds. Contains symbols for sun, moon, heart and arrow buttons.

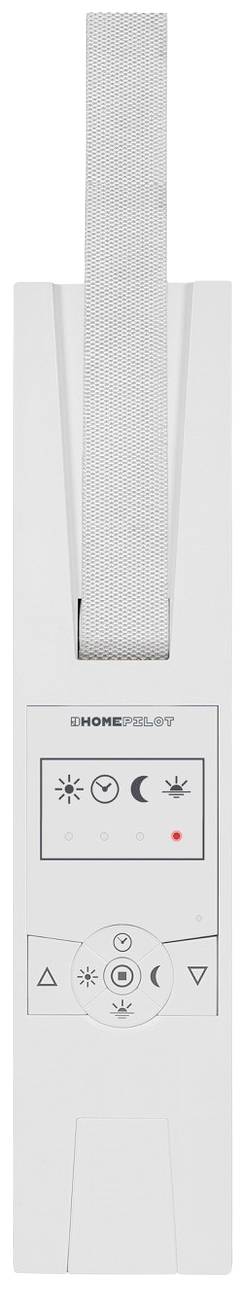

White remote control device with symbolic buttons for sun, moon, triangle, and plus sign. LED display glows red.

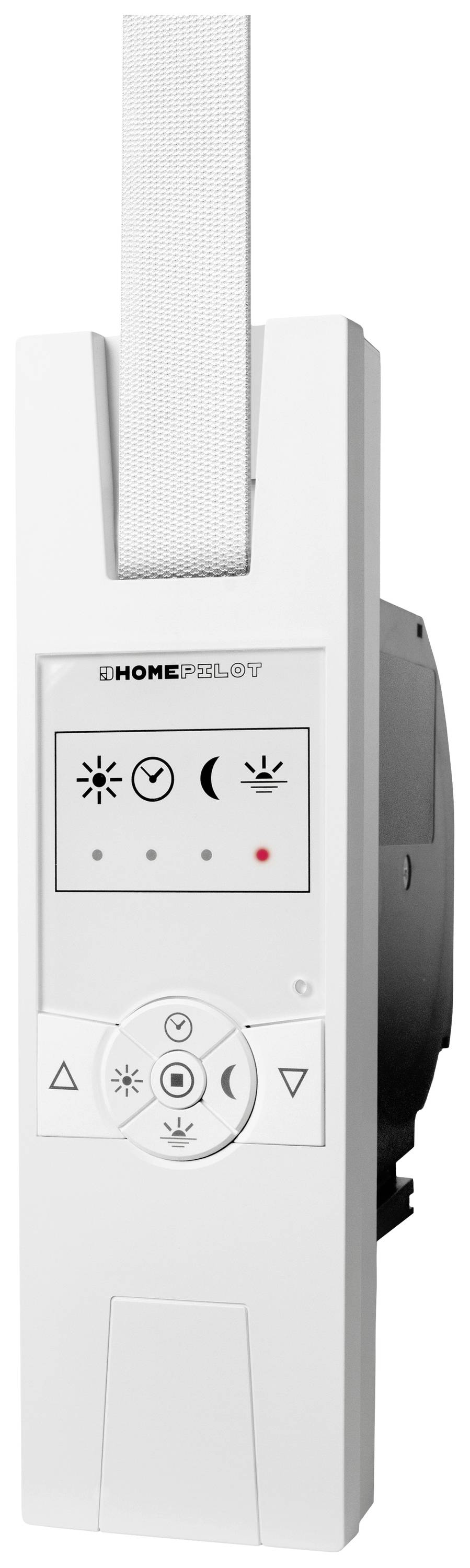

Electric roller blind winder in white with control panel for day, night, stop and control buttons. Manages roller blinds automatically.

1/4

Fast track dispatch on Fri, 11 Sep

3 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 172.26 / piece)

€ 172.26

plus VAT.

Only 3 Piece(s) available

Report legal concerns

Highlights & Details

HOMEPILOT Electric belt winder RolloTron classic smart 23 mm

Drive and control in one device.Manual control is possible on the deviceExtensive automatic functions and control via APP in combination with gateway premiumMax. Traction output 45 kgFor a belt width of 23 mm

Technical specifications

Power supply voltage 230 V/50 Hz, 60 HzProtection class: IIProtection type: IP20 (dry rooms only)Standby consumption: 0.6 W.4 min. short-term operationDelayed travel 0.4 UTransmission frequency 434.5 MHzTransmitted power 10 mW max.Range: In buildings approx. 10 - 15 m (depending on the construction material)Operation at: +0°C to +40°C.Smart devices: Max. 20Belt length max. 7.6 m.

Product type: Electric belt winder

Belt width: 23 mm

Nominal torque: 10 Nm

Weight: 998 g

Mounting type: Flush mount

Nominal power: 70

Operating voltage: 230 V

Aperture size: 60 x 211 x 27 mm

Factory colour: Ultra white

Assembly dimensions: 35 x 139 x 132 mm

Dim: (W x H x D) 60 x 211 x 166 mm

Hub: Not required

Data exchange: Bidirectional (bi)

Belt length: 7.6 m

Width: 60 mm

Height: 211 mm

Depth: 166 mm

Tensile force (max.): 45 kg

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2827226 HOMEPILOT 10142345 RolloTron classic smart Electric belt winder 23 mm Tensile force (max.) 45 kg Flush mount

Warranty Terms

Warranty Terms 2827226 HOMEPILOT 10142345 RolloTron classic smart Electric belt winder 23 mm Tensile force (max.) 45 kg Flush mount

Description

With the electric blind winder RolloTron classic Smart, you can automate your shutters and control them wirelessly.The electric belt winder also has a soft-start/soft-stop function, which ensures quiet operation with Hohem comfort and is also gentle on the material.The blind winder RolloTron classic Smart has numerous automatic functions, such as day, week and Astro-program and the Random function with the gateway premium. You can also freely select the ventilation and sun position and simply switch between automatic and manual operation by pressing a button.The flush-mounted belt winder can be integrated into all common winder boxes starting from a width of 36 mm, hence allowing universal use. Re-equipping your manual blind winder quickly and easily.This electric shutter belt winder can not only be controlled using our Smart remote control, but can also be combined with the premium gateway or the ROLLOTRON Premium Smart blind winder.
