Buy HOMEPILOT 10172345 RolloTron premium Electric belt winder 23 mm Tensile force (max.) 45 kg Flush mount

Electronic roller shutter motor with display showing 'FR 16:30'. Control buttons located at the bottom. Suitable for automatic roller shutter control.

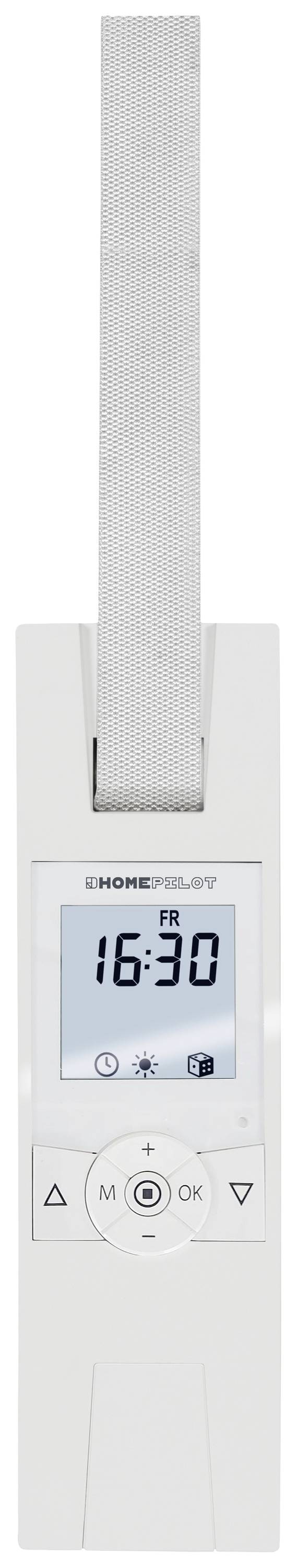

A white remote control device with a display shows '16:30'. It has buttons for control. A band is attached above it.

1/2

Fast track dispatch on Fri, 11 Sep

4 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 168.06 / piece)

€ 168.06

plus VAT.

Only 4 Piece(s) available

Report legal concerns

Highlights & Details

HOMEPILOT Electric belt winder RolloTron premium 23 mm

Ideal retrofitting solution thanks to quick and easy installation - also for the rental home!Maximum individual flexibility in the automation of your shuttersEspecially convenient operation thanks to large, illuminated display and intuitive menu navigationWith extensive functions for the automatic control of your shutters at your desired timesSuitable for all common winder boxes from 36 mm width

Technical specifications

Delayed travel 0.4 UMax. Switching times 16Power reserve (in case of power failure): Approx. 8 h.Connection cable: Cable length 1.5 m.Operation at: +0°C to +40°C.Belt length max. 7.6 m.

Product type: Electric belt winder

Belt width: 23 mm

Nominal torque: 10 Nm

Weight: 1050 g

Mounting type: Flush mount

Nominal power: 70

Operating voltage: 230 V

Aperture size: 60 x 211 x 27 mm

Factory colour: Ultra white

Assembly dimensions: 35 x 139 x 132 mm mm

Dim: (W x H x D) 60 x 211 x 166 mm

Hub: Not required

Belt length: 7.6 m

Width: 60 mm

Height: 211 mm

Depth: 166 mm

Tensile force (max.): 45 kg

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2827217 HOMEPILOT 10172345 RolloTron premium Electric belt winder 23 mm Tensile force (max.) 45 kg Flush mount

Warranty Terms

Warranty Terms 2827217 HOMEPILOT 10172345 RolloTron premium Electric belt winder 23 mm Tensile force (max.) 45 kg Flush mount

Description

Automate and control your shutters easily with the electric blind winder RolloTron premium. The electric blind winder Ideal for flush-mounting and makes your daily routine easy. Control your shutters automatically or by pressing a button on the device - easily and intuitively.With the convenient soft-start and soft-stop function, the RolloTron Premium belt winder works particularly quietly and without damage to material. The electric belt winder also detects obstacles and a key lock. And you can rest assured that even in the event of a power failure: Our electric belt winder has continuous data storage.The RolloTron premium belt winder offers many functions to automate your shutter control: Random Function, day, week and Astro program, an installation wizard for quick start-up and much more. The electric blind winder also switches automatically to summer and winter time.The electric blind winder RolloTron premium is Ideal suitable for retrofitting, because you can quickly and easily exchange the existing manual blind winder with it. The electric belt winder fits in all common winder boxes from a width of 36 mm and can be installed in a few steps.The RolloTron premium belt winder also allows you to control your shutters with brightness level. You can use our sun sensor in combination with the belt winder for this purpose.

This text is machine translated.
