Name: HOMEPILOT 10252330 RolloTron pure smart - AP Electric belt winder 23 mm Tensile force (max.) 30 kg Surface-mount
Brand: HOMEPILOT
SKU: 2827232
Availability: BackOrder

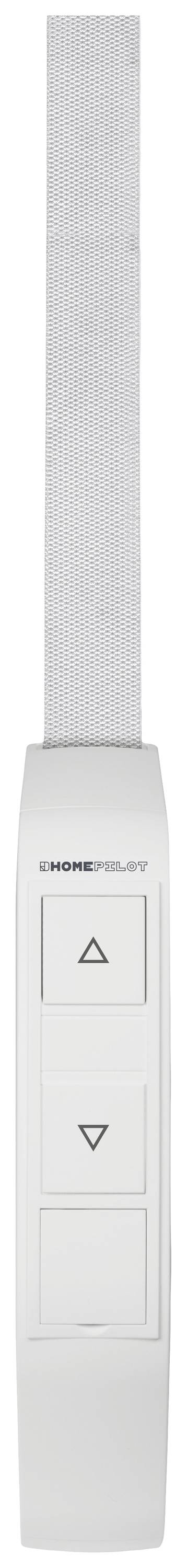

Electronic roller blind winder in white with two buttons for raising and lowering the roller blind.

White remote control with two arrow buttons, one pointing upwards and one downwards, used for controlling a device.

1/2

Dispatches on Tue 3 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 219.99 / piece)

€ 219.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

HOMEPILOT Electric belt winder RolloTron pure smart - AP 23 mm

Drive and control in one device.Manual control is possible on the deviceExtensive automatic functions and control via APP in combination with gateway premiumIdeal for confined spaces

Technical specifications

Power supply voltage 230 V/50 HzProtection class: IIProtection class IP20 (dry rooms only)Standby consumption: 0.7 W.4 min. short-term operationDelayed travel 0.4 UTransmission frequency 434.5 MHzTransmitted power 10 mW max.Range: Free field approx. 100 m in buildings approx. 30 m (depending on the building material)Operation at: +0°C to +40°C.Smart devices: Max. 20Belt length max. 5 m.

Product type: Electric belt winder

Belt width: 23 mm

Nominal torque: 8 Nm

Weight: 980 g

Mounting type: Surface-mount

Nominal power: 70

Operating voltage: 230 V

Aperture size: 37 x 185 mm

Factory colour: Ultra white

Dim: (W x H x D) 37 x 185 x 155 mm

Hub: Not required

Data exchange: Bidirectional (bi)

Belt length: 5 m

Width: 37 mm

Height: 185 mm

Depth: 155 mm

Tensile force (max.): 30 kg

UKCA: yes

Variants(All information include VAT, plus shipping costs)

Nominal torque

Belt width

Mounting type

HOMEPILOT 10252330 RolloTron pure smart - AP Electric belt winder 23 mm Tensile force (max.) 30 kg Surface-mount

Item no:2827232

Dispatches on Tue 3 Nov

Conrad Electronic

This article

8 Nm

23 mm

Surface-mount

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 219.99^*

HOMEPILOT 10122345 RolloTron pure smart Electric belt winder 23 mm Tensile force (max.) 45 kg Flush mount

Item no:2827225

Fast track dispatch on Fri 23 Oct

5 Piece(s)Conrad Electronic

10 Nm

23 mm

Flush mount

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 164.99^*

HOMEPILOT 10131545 RolloTron classic - Minigurt Electric belt winder 15 mm Tensile force (max.) 45 kg Flush mount

Item no:2827215

Fast track dispatch on Fri 23 Oct

1 Piece(s)Conrad Electronic

10 Nm

15 mm

Flush mount

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 179.99^*

HOMEPILOT 10132345 RolloTron classic Electric belt winder 23 mm Tensile force (max.) 45 kg Flush mount

Item no:2827214

Fast track dispatch on Fri 23 Oct

4 Piece(s)Conrad Electronic

10 Nm

23 mm

Flush mount

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 159.99^*

HOMEPILOT 10132360 RolloTron classic - Power Electric belt winder 23 mm Tensile force (max.) 60 kg Flush mount

Item no:2827216

Fast track dispatch on Fri 23 Oct

6 Piece(s)Conrad Electronic

14 Nm

23 mm

Flush mount

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 229.99^*

HOMEPILOT 10141545 RolloTron classic smart - Minigurt Electric belt winder 15 mm Tensile force (max.) 45 kg Flush mount

Item no:2827228

Dispatches on Tue 3 Nov

Conrad Electronic

10 Nm

15 mm

Flush mount

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 219.99^*

HOMEPILOT 10142345 RolloTron classic smart Electric belt winder 23 mm Tensile force (max.) 45 kg Flush mount

Item no:2827226

Fast track dispatch on Fri 23 Oct

3 Piece(s)Conrad Electronic

10 Nm

23 mm

Flush mount

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 204.99^*

HOMEPILOT 10142360 RolloTron classic smart - Power Electric belt winder 23 mm Tensile force (max.) 60 kg Flush mount

Item no:2827227

Fast track dispatch on Fri 23 Oct

3 Piece(s)Conrad Electronic

14 Nm

23 mm

Flush mount

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 255.00^*

HOMEPILOT 10151530 RolloTron pure - AP Minigurt Electric belt winder 15 mm Tensile force (max.) 30 kg Surface-mount

Item no:2827221

Fast track dispatch on Fri 23 Oct

2 Piece(s)Conrad Electronic

8 Nm

15 mm

Surface-mount

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 194.99^*

HOMEPILOT 10152330 RolloTron pure - AP Electric belt winder 23 mm Tensile force (max.) 30 kg Surface-mount

Item no:2827220

Dispatches on Tue 3 Nov

Conrad Electronic

8 Nm

23 mm

Surface-mount

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 179.99^*

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2827232 HOMEPILOT 10252330 RolloTron pure smart - AP Electric belt winder 23 mm Tensile force (max.) 30 kg Surface-mount

Warranty Terms

Warranty Terms 2827232 HOMEPILOT 10252330 RolloTron pure smart - AP Electric belt winder 23 mm Tensile force (max.) 30 kg Surface-mount

Description

The surface-mounted RolloTron Pure Smart belt winder is an electric surface-mounted blind winder which is suitable for Ideal for confined spaces.The surface-mounted RolloTron Pure Smart belt winder is perfect for upgrading existing surface-mounted shutter belt systems. The mounting works without setting up the walls and can be done very easily yourself.The surface-mounted RolloTron Pure Smart belt winder has numerous automatic functions, such as daily, weekly and Astro programs and the Random function. You can also freely select the ventilation and sun position and by pressing a button you can easily switch between automatic and manual operation.The surface-mounted RolloTron Pure Smart belt winder is characterized by quick and easy mounting. Operated via Euro plug connection to the 230 V power supply.The electric blind winder can not only be controlled by our remote controls, but can also be combined with the premium gateway or the ROLLOTRON Premium Smart belt winder.
