HOMEPILOT 10142360 RolloTron classic smart - Power Electric belt winder 23 mm Tensile force (max.) 60 kg Flush mount
EAN:
Part number:
Item no:
Number
Total (€ 214.29 / piece)
€ 214.29
plus VAT.
Only 3 Piece(s) available
Highlights & Details

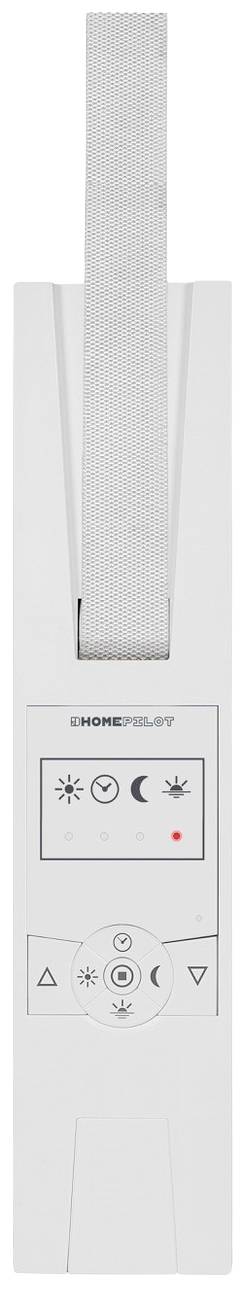

HOMEPILOT Electric belt winder RolloTron classic smart - Power 23 mm
- Drive and control in one device.Manual control is possible on the deviceExtensive automatic functions and control via APP in combination with gateway premiumMax. Traction output 60 kgFor a belt width of 23 mm
Technical specifications
- Power supply voltage 230 V/50 HzProtection class: IIProtection class: IP20Standby consumption: 0.4 U4 min. short-term operationDelayed travel 0.4 UTransmission frequency 434.5 MHzTransmitted power 10 mW max.Range: In buildings approx. 10 - 15 m (depending on the construction material)Operation at: +0°C to +40°C.Smart devices: Max. 8 per group (3 groups)Belt length max. 15 m.
- Product type
Electric belt winder
- Belt width
23 mm
- Nominal torque
14 Nm
- Weight
1255 g
- Mounting type
Flush mount
- Nominal power
70
- Operating voltage
230 V
- Aperture size
60 x 274 x 27 mm
- Factory colour
Ultra white
- Assembly dimensions
35 x 196 x 180 mm
- Dim
(W x H x D) 60 x 271 x 166 mm
- Hub
Not required
- Data exchange
Bidirectional (bi)
- Belt length
15 m
- Width
60 mm
- Height
271 mm
- Depth
166 mm
- Tensile force (max.)
60 kg
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2827227 HOMEPILOT 10142360 RolloTron classic smart - Power Electric belt winder 23 mm Tensile force (max.) 60 kg Flush mount
Warranty Terms
Warranty Terms 2827227 HOMEPILOT 10142360 RolloTron classic smart - Power Electric belt winder 23 mm Tensile force (max.) 60 kg Flush mount
Description
With the electric blind winder RolloTron classic Smart Power, you can automate your shutters and control them wirelessly.The electric belt winder also has a soft-start/soft-stop function, which ensures quiet operation with Hohem comfort and is also gentle on the material.The blind winder RolloTron classic Smart Power has numerous automatic functions, such as day, week and Astro program and the Random function. You can also freely select the ventilation and sun position and simply switch between automatic and manual operation by pressing a button.The flush-mounted belt winder can be integrated into all common winder boxes starting from a width of 36 mm, hence allowing universal use. Re-equipping your manual blind winder quickly and easily.This electric shutter belt winder can not only be controlled using our Smart remote control, but can also be combined with the premium gateway or the ROLLOTRON Premium Smart blind winder.
This text is machine translated.
This text is machine translated.
Scope of delivery
- Belt winder RolloTron Classic Smart Power
- 2 x mounting screws (4 x 55 mm)
- Release clip (in housing)
- Connection cable with Euro plug
- Winding wheel compartment cover
- Cover plate
- Strain relief including mounting screws.
