HOMEPILOT 10182345 RolloTron premium smart Electric belt winder 23 mm Tensile force (max.) 45 kg Flush mount
EAN:
Part number:
Item no:
Number
Total (€ 197.47 / piece)
€ 197.47
plus VAT.
Only 2 Piece(s) available
Highlights & Details

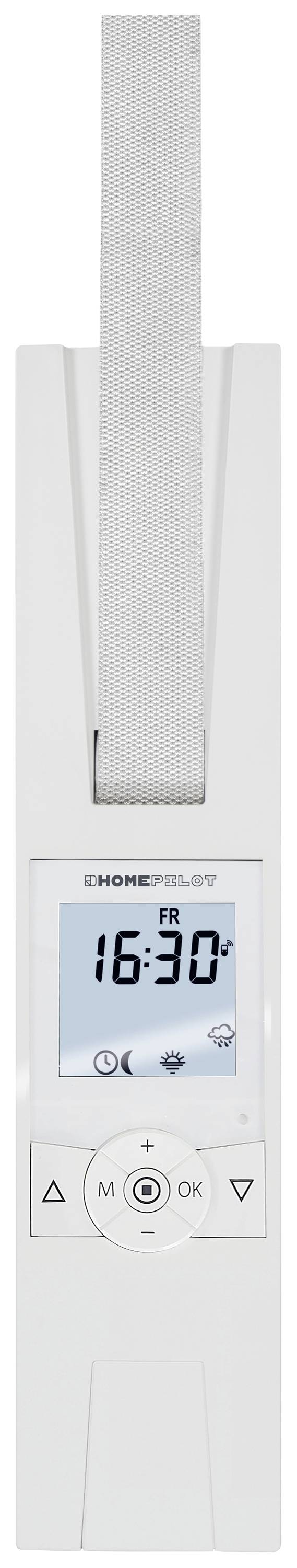

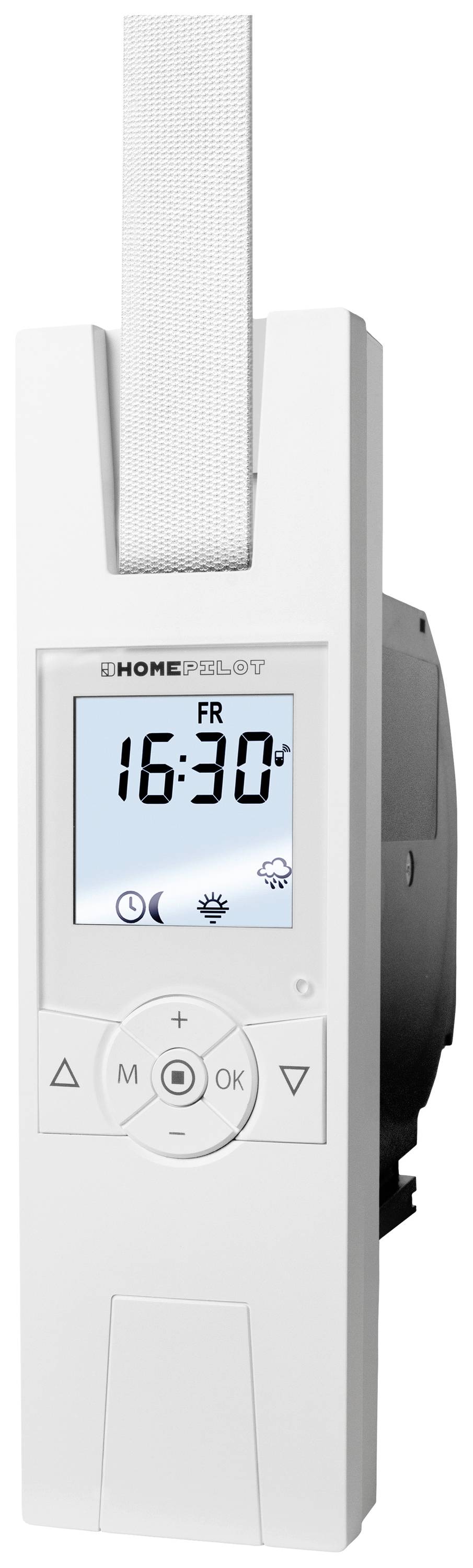

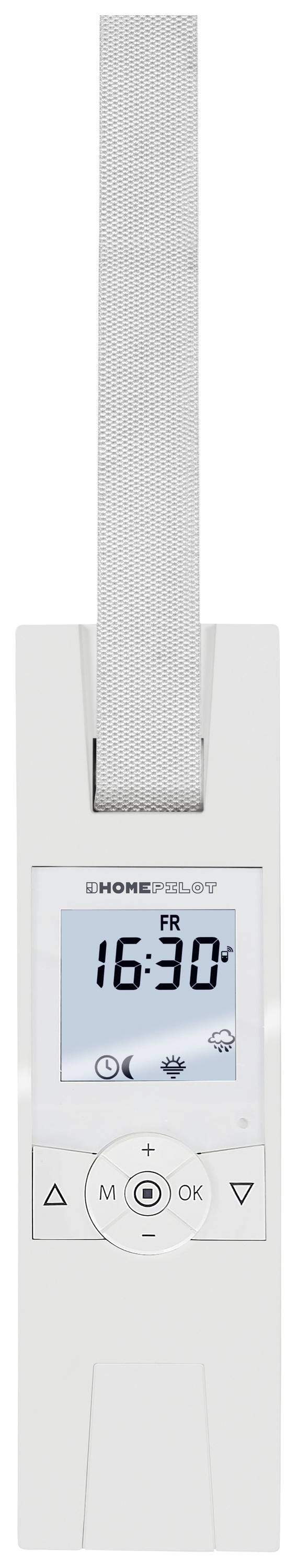

HOMEPILOT Electric belt winder RolloTron premium smart 23 mm
- Electronic radio-controlled belt take-up reel for shuttersDay/week/Astro-program, Random functionLarge illuminated displayBrightness-dependent control of the time switch with light sensorExtensive automatic functions and control via APP in combination with gateway premium
Technical specifications
- Power supply voltage 230 V/50 Hz, 60 HzProtection class: IIProtection class IP20 (dry rooms only)Standby consumption: 0.6 W.4 min. short-term operationDelayed travel 0.4 UMax. Switching times 16Power reserve (in case of power failure): Approx. 8 h.Transmission frequency 434.5 MHzTransmitted power 10 mW max.Range: In buildings approx. 10 - 15 m (depending on the construction material)Operation at: +0°C to +40°C.Smart devices: Max. 20Belt length max. 7.6 m.
- Product type
Electric belt winder
- Belt width
23 mm
- Nominal torque
10 Nm
- Weight
1045 g
- Mounting type
Flush mount
- Nominal power
70
- Operating voltage
230 V
- Aperture size
60 x 211 x 27 mm
- Factory colour
Ultra white
- Assembly dimensions
35 x 139 x 132 mm
- Dim
(W x H x D) 60 x 211 x 166 mm
- Hub
Not required
- Data exchange
Bidirectional (bi)
- Belt length
7.6 m
- Width
60 mm
- Height
211 mm
- Depth
166 mm
- Tensile force (max.)
45 kg
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2827229 HOMEPILOT 10182345 RolloTron premium smart Electric belt winder 23 mm Tensile force (max.) 45 kg Flush mount
Warranty Terms
Warranty Terms 2827229 HOMEPILOT 10182345 RolloTron premium smart Electric belt winder 23 mm Tensile force (max.) 45 kg Flush mount
Description
Are you still pulling on the belt every day? Don't make it unnecessarily difficult for you, but simple and comfortable! Automated shutters play a central role in the Smart home. Control your shutters comfortably by radio - with the electric blind winder RolloTron premium Smart. Automatic summer/winter changeover is performed with the RolloTron premium Smart blind winder. A key lock can be set to prevent unintentional operation (e.g. by children). The radio belt winder also has a soft-start/soft-stop function, which ensures quiet operation with Hohem comfort and is also gentle on the material.This smart electric belt winder comes with a built-in interface that allows quick and easy integration into the premium gateway, making Smart for your home! The electric blind winder can be easily remote-controlled or can even be used as a center for other radio blind winders. Also Smart: Extensive automatic functions like the day, week, weekend and Astro-program as well as the Random function make your daily routine comfortable. This intelligent belt winder makes it possible to select the ventilation and sun position.The blind winder RolloTron premium Smart can be put into operation very quickly thanks to its easy mounting. The belt winder's installation assistant helps you to quickly and easily set up automation. In addition, the smart belt winder can be directly connected to a 230 V power supply thanks to the common Euro connector. This electric belt winder is suitable for flush mounting and can be simply exchanged for the old manual blind winder. It can be used anywhere, as it fits in any standard belt box from 36 mm width.The sun sensor, available as an accessory, can also be used for sunlight and twilight control.
This text is machine translated.
This text is machine translated.
Scope of delivery
- Belt winder RolloTron premium Smart
- 2 x mounting screws (4 x 55 mm)
- Release clip (in housing)
- Connection cable with Euro plug
- Winding wheel compartment cover
- Cover plate
- Strain relief including mounting screws.
