Kaiser Nienhaus Electronic Primus 121000 Tubular motor set 60 mm 10 Nm
EAN:
Part number:
Item no:
Number
Total (€ 114.99 / piece)
€ 114.99
incl. VAT
Only 9 Piece(s) available
Highlights & Details
Tubular motor set Electronic Primus 10 Nm
- Adjustment of the end point via justierschalter or automatically
- That can be activated obstacle detection and antifreeze protection
- Particularly quiet running
Technical specifications

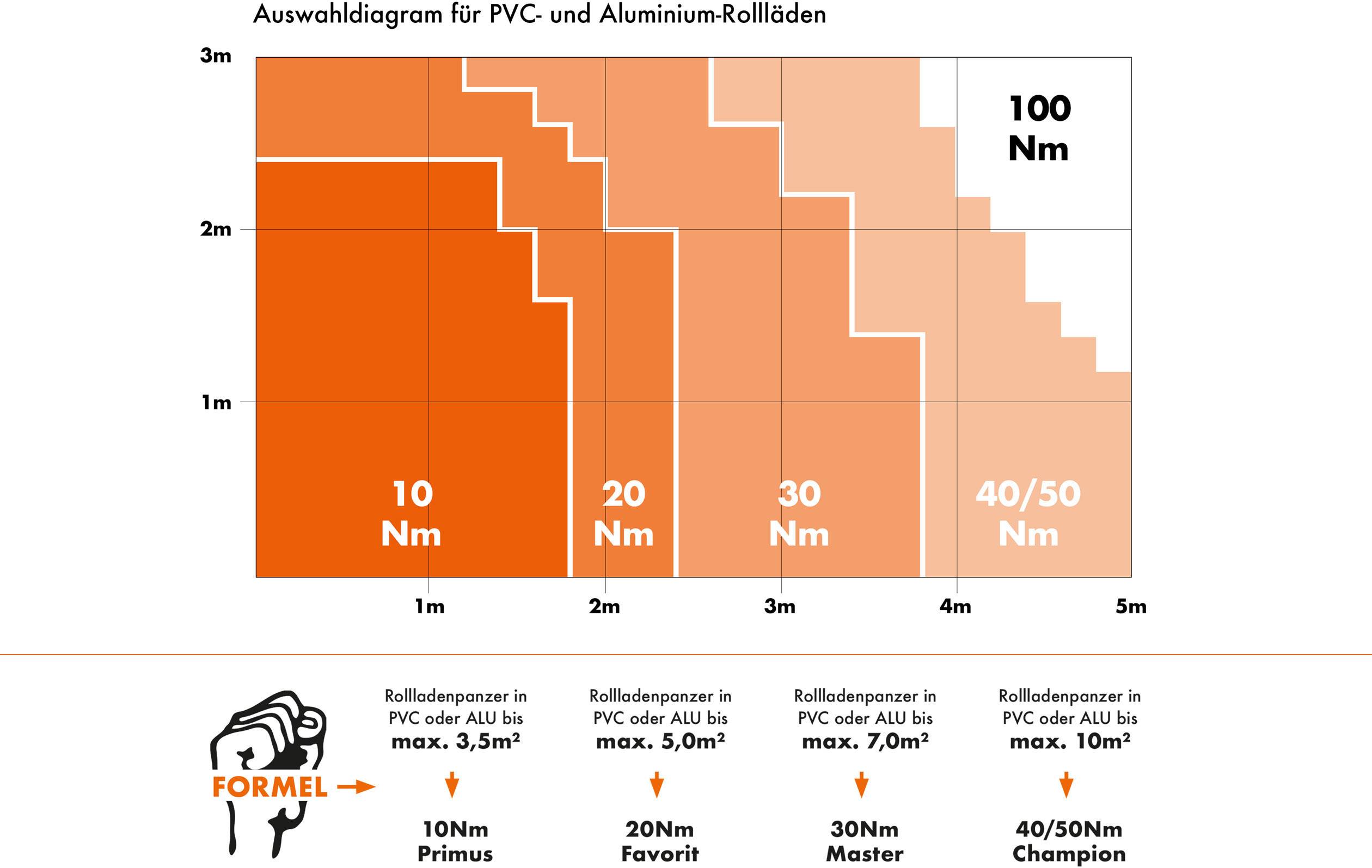

- Suitable for: PVC/ aluminum shutters up to 3.60 m²
- Product type
Tubular motor set
- Suitable for shutter axle Ø
60 mm
- Dim
(Ø x L) 45 mm x 600 mm
- Weight
2900 g
- Rotational speed
17 U/min
- Length
600 mm
- Max. current consumption
0.6 A
- Limit switched
electrical
- Obstacle detection
No
- Operating voltage
230 V AC
- (Ø)
45 mm
- Hub
Not required
- Torque
10 Nm
- Lead length
2.5 m
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 640500 Kaiser Nienhaus Electronic Primus 121000 Tubular motor set 60 mm 10 Nm
Information
Information 640500 Kaiser Nienhaus Electronic Primus 121000 Tubular motor set 60 mm 10 Nm
Description
The tubular motor Primus Electronic impresses mainly through its unprecedented properties. The engine with its 10 Nm tension is not only extremely high-torque, but at the same time as well as noiseless. This is used in the series electronic through the patented and stand stable no brake, as well as maximum precision-crafted gear wheel sets. In addition, the motor via an antifreeze protection and which can be activated obstacle detection with reverser function.
This text is machine translated.
This text is machine translated.
Features
- Incl. antifreeze protection
- A parallel connection option is available
- Drive with high-precision wheel sets, robust, extremely long-lasting, runs quietly

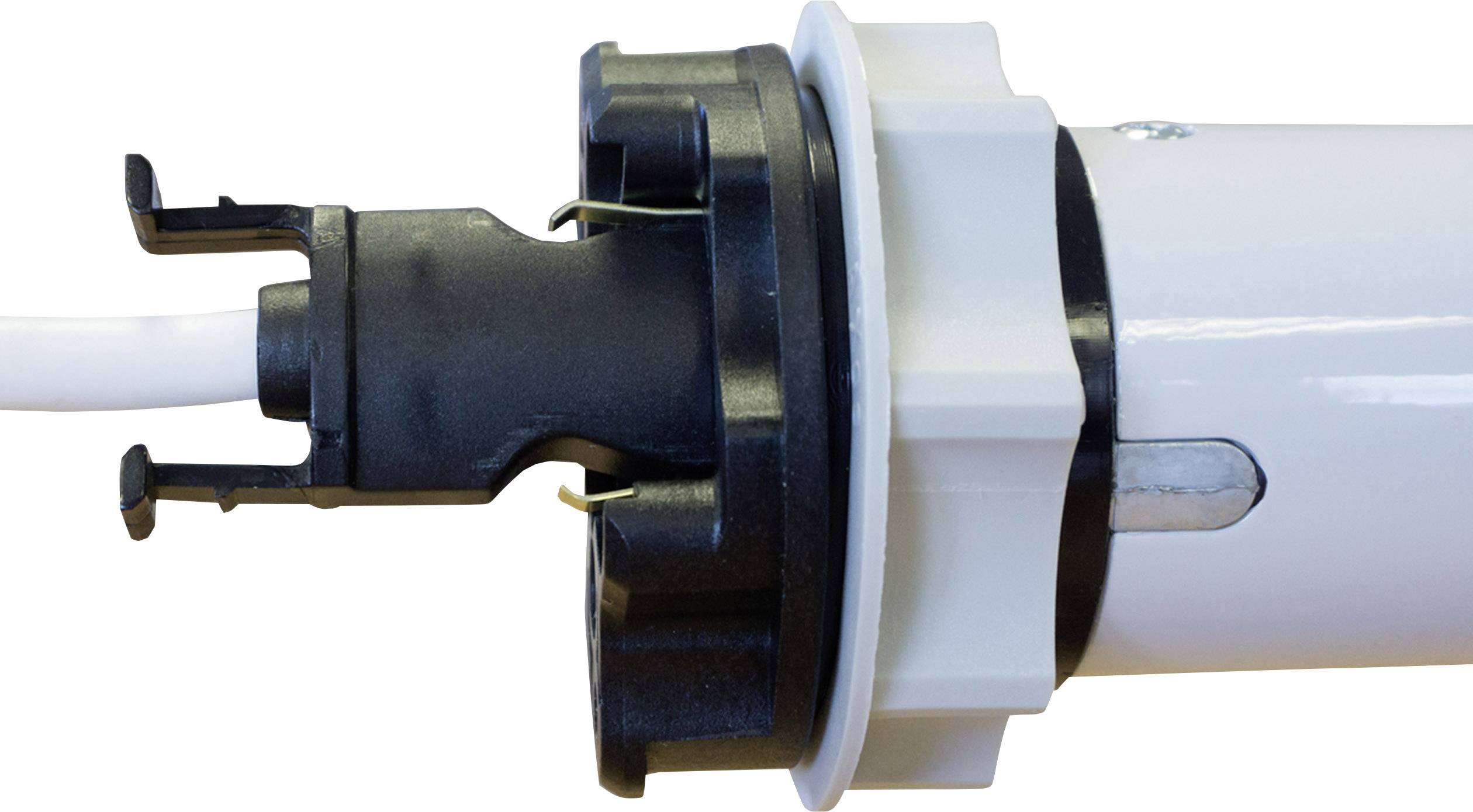

- Pluggable connection cable (2.5 m) for easy mounting, an advantage if servicing is required
- Thermal cut-off.
Scope of delivery
- Primus Electronic tubular motor, 10 Nm
- Adapter/catches SW60
- Motor
- User manual.
