Sikanet 930120 Tubular motor set 60 mm 145 W 20 Nm
EAN:
Part number:
Item no:
Number
Total (€ 48.73 / piece)
€ 48.73
plus VAT.
14-day return policy included
Highlights & Details
Sikanet 930120 20 Nm Roller Shutter Tube Motor
- Motor complete installation set for shutter shaft SW60
- Very quietly
- Precise spindle cut-off
Technical specifications
- Product type
Tubular motor set
- Suitable for shutter axle Ø
60 mm
- Motor power
145 W
- Dim
(Ø x L) 60 mm x 490 mm
- Weight
2700 g
- Rotational speed
15 U/min
- Length
490 mm
- Max. current consumption
0.6 A
- Limit switched
mechanical
- Obstacle detection
No
- Operating voltage
230 V AC
- (Ø)
60 mm
- Hub
Not required
- Torque
20 Nm
- Lead length
2 m
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1315099 Sikanet 930120 Tubular motor set 60 mm 145 W 20 Nm
Description
SIKANET basic set 20 Nm for installation in the shutter shaft SW60. 20 Nm Motor with precise mechanical spindle cut-off for shutters with up to 5 m².
This text is machine translated.
This text is machine translated.
Features
- SIKANET basic set 20 Nm, 145 Watt / 20 NM, 15 RPM, incl. adapter/Trailer for shutter shaft SW60, motor bearing set, counter bearing set, shaft capsule size 60, 4 suspension springs, for shutters up to 5 m²

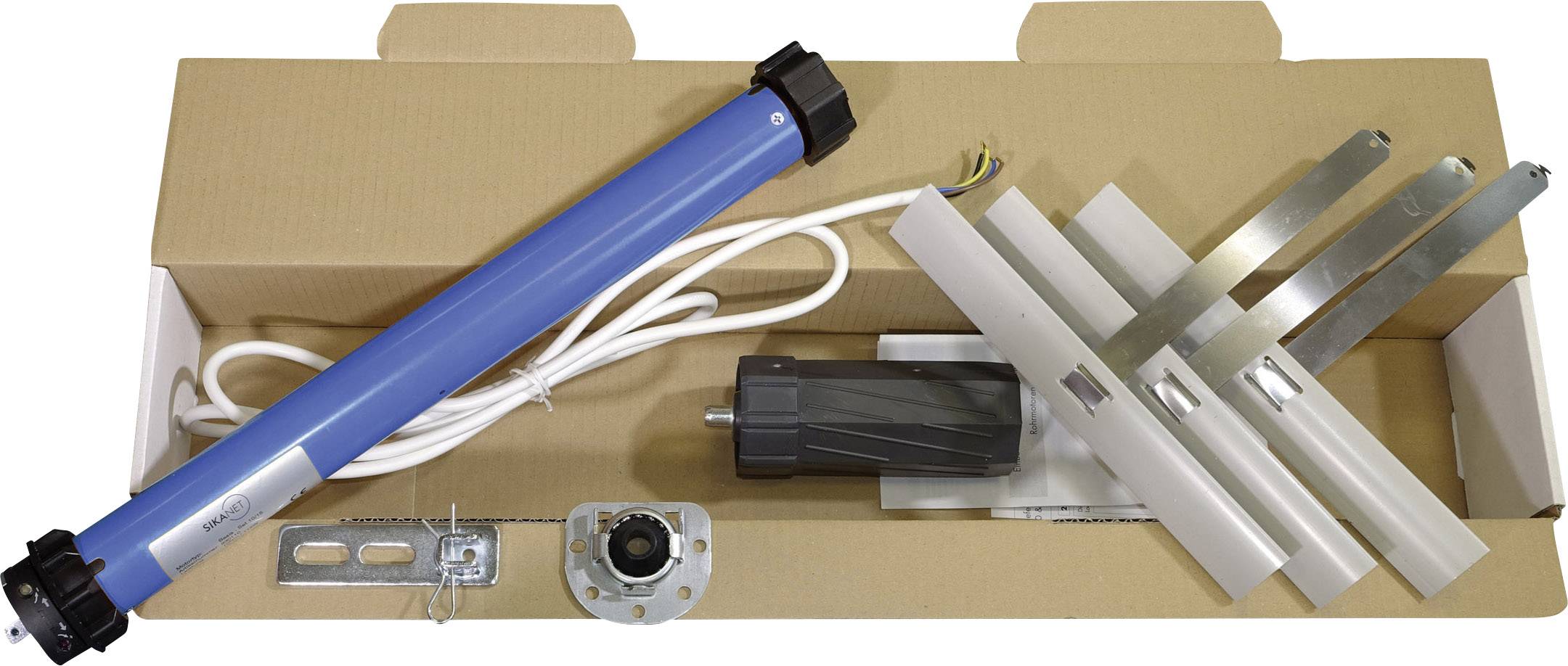

Scope of delivery
- Tubular motor 20 Nm
- Adapter/catches SW60
- Motor
- Counter bearing set
- Shaft CAPSULE SIZE 60
- 4 suspension springs
- User manual.
