Buy Kaiser Nienhaus 110010 Tubular motor 60 mm 10 Nm

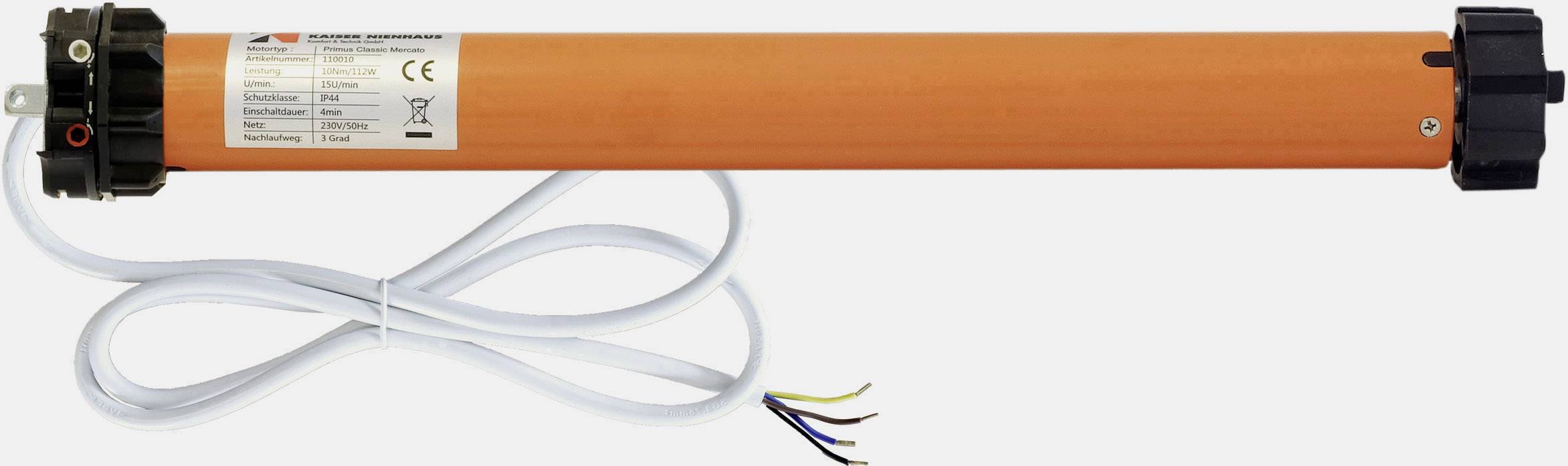

Electric tubular motor with an orange housing and cables. Label contains technical specifications and CE marking.

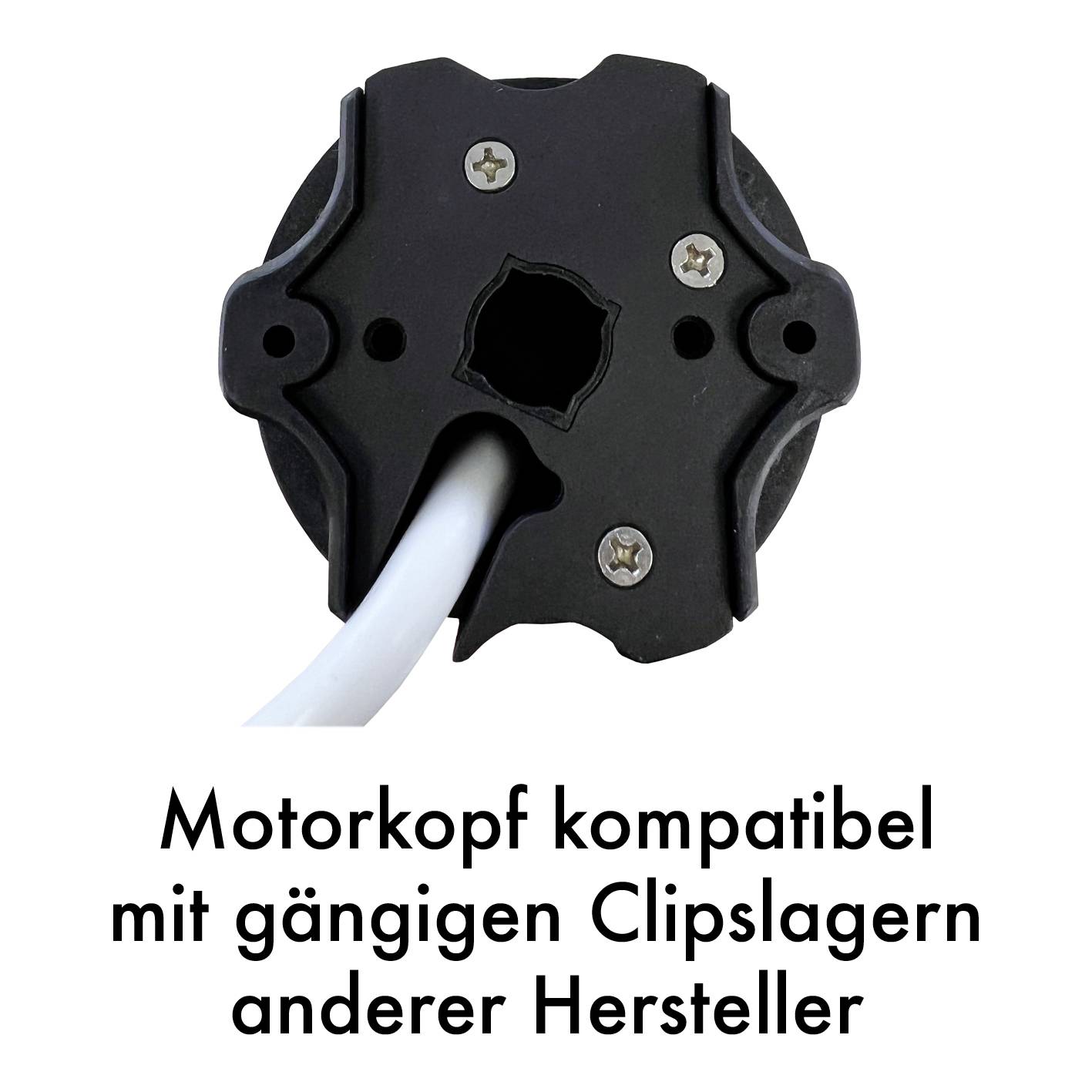

'Motor with a clip bearing connection, compatible with various clips from other manufacturers.'

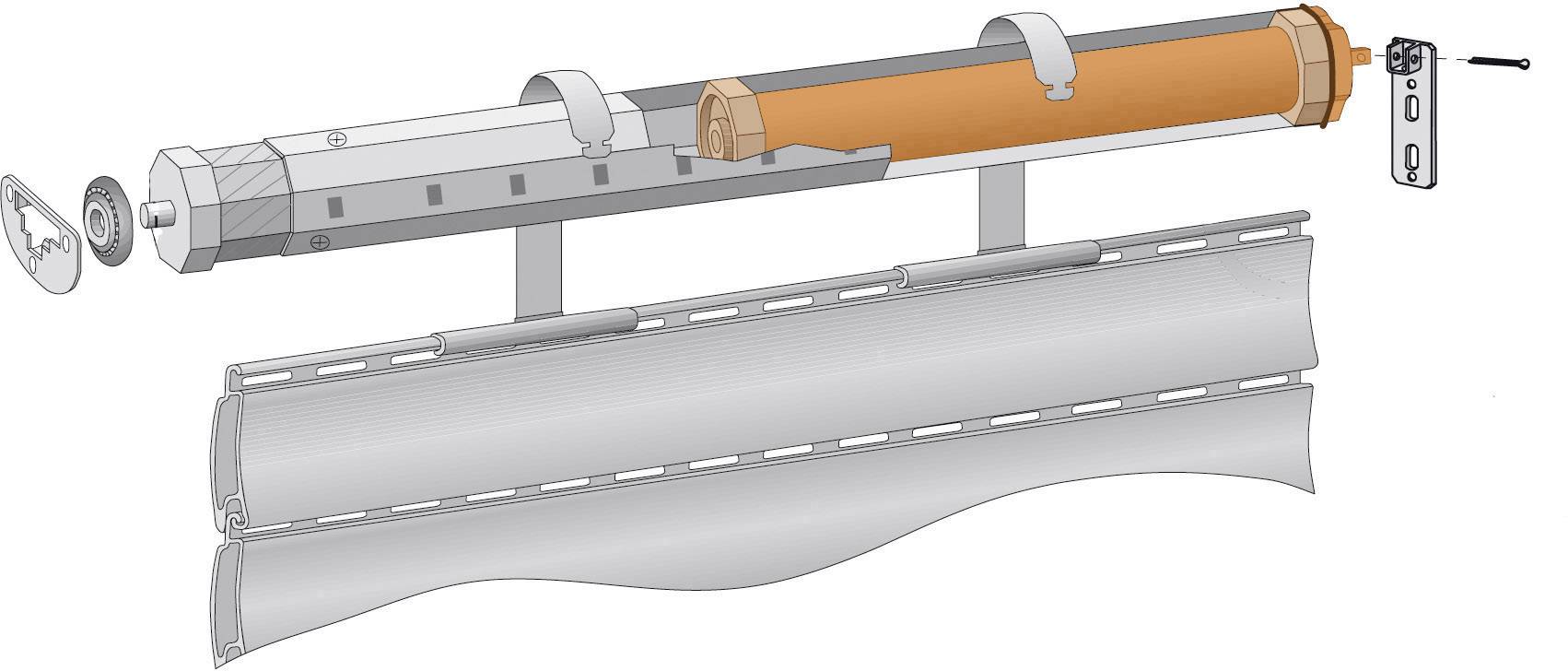

Diagram of a roller blind system: shows the motor, mounting brackets, and the roller blind shaft. The shaft is partially depicted in orange.

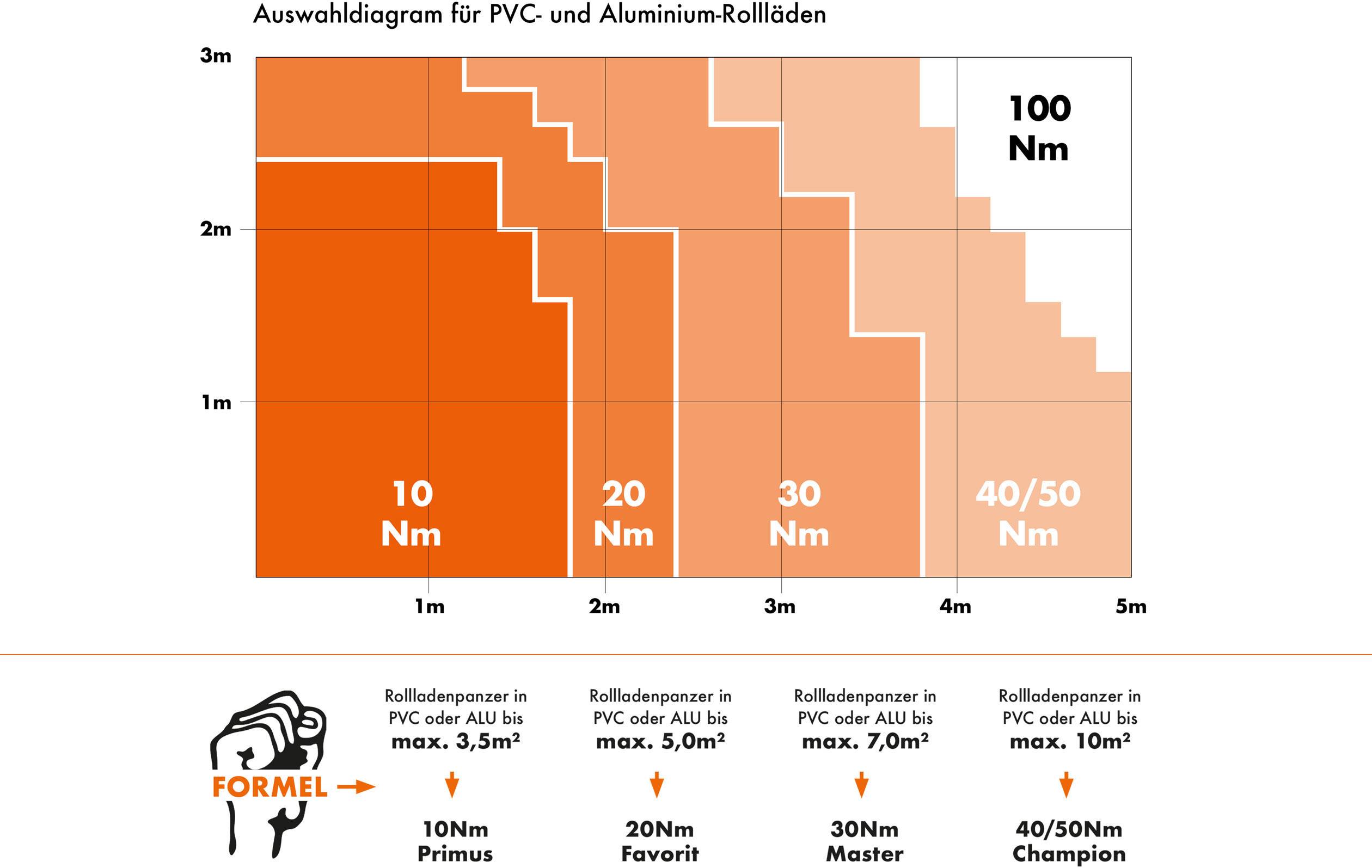

'Diagram for Selecting PVC and Aluminium Roller Shutter Motors. Shows Nm strengths (10, 20, 30, 40/50) depending on length (1m-5m).'

1/4

Available soon

Sales and shipping:

Conrad Electronic Terms & Conditions

Packaging units

Number

Piece(s)

Total (€ 42.01 / piece)

€ 42.01

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

Tubular motor Kaiser Nienhaus 110010 10 Nm

Motor head suitable for common clip bearings of other manufacturers (Somfy)Simple end point setting with threaded spindlesFor PVC/aluminum shutters up to 3.5 m²With SW60 adapter, motor bearing & adjustment tool

Technical specifications

Product type: Tubular motor

Suitable for shutter axle Ø: 60 mm

Rotational speed: 15 U/min

Length: 540 mm

Max. current consumption: 0.6 A

Limit switched: mechanical

Operating voltage: 230 V

Hub: Not required

Torque: 10 Nm

Lead length: 3 m

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2114970 Kaiser Nienhaus 110010 Tubular motor 60 mm 10 Nm

Description

Classic Mercato motors are characterized by their very precise end point setting via threaded spindles on the motor head as well as by quiet and at the same time high-torque running properties. They are ideal for renovation. The adapter for the SW60 roller shutter shaft as well as the matching motor bearing are included in the delivery and thus the motor can usually be simply inserted into the existing roller shutter shaft and mounted.

This text is machine translated.
