Sikanet 930130 Tubular motor set 60 mm 191 W 30 Nm
EAN:
Part number:
Item no:
Number
Total (€ 48.73 / piece)
€ 48.73
plus VAT.
14-day return policy included
Highlights & Details
Tubular motor set Sikanet 930130 30 Nm
- Motor complete installation set for shutter shaft SW60
- Very quietly
- Precise spindle cut-off
Technical specifications
- Product type
Tubular motor set
- Suitable for shutter axle Ø
60 mm
- Motor power
191 W
- Dim
(Ø x L) 60 mm x 510 mm
- Weight
2800 g
- Rotational speed
15 U/min
- Length
510 mm
- Max. current consumption
0.6 A
- Limit switched
mechanical
- Obstacle detection
No
- Operating voltage
230 V AC
- (Ø)
60 mm
- Hub
Not required
- Torque
30 Nm
- Lead length
2 m
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1315098 Sikanet 930130 Tubular motor set 60 mm 191 W 30 Nm
Description
SIKANET basic set 30 Nm for installation in the shutter shaft SW60. 30 Nm Motor with precise mechanical spindle cut-off for shutters with up to 6.5 m².
This text is machine translated.
This text is machine translated.
Features
- SIKANET basic set 30 Nm, 191 Watt / 30 NM, 15 RPM, incl. adapter/Trailer for shutter shaft SW60, motor bearing set, counter bearing set, shaft capsule size 60, 5 suspension springs, for shutters up to 6.5 m2.

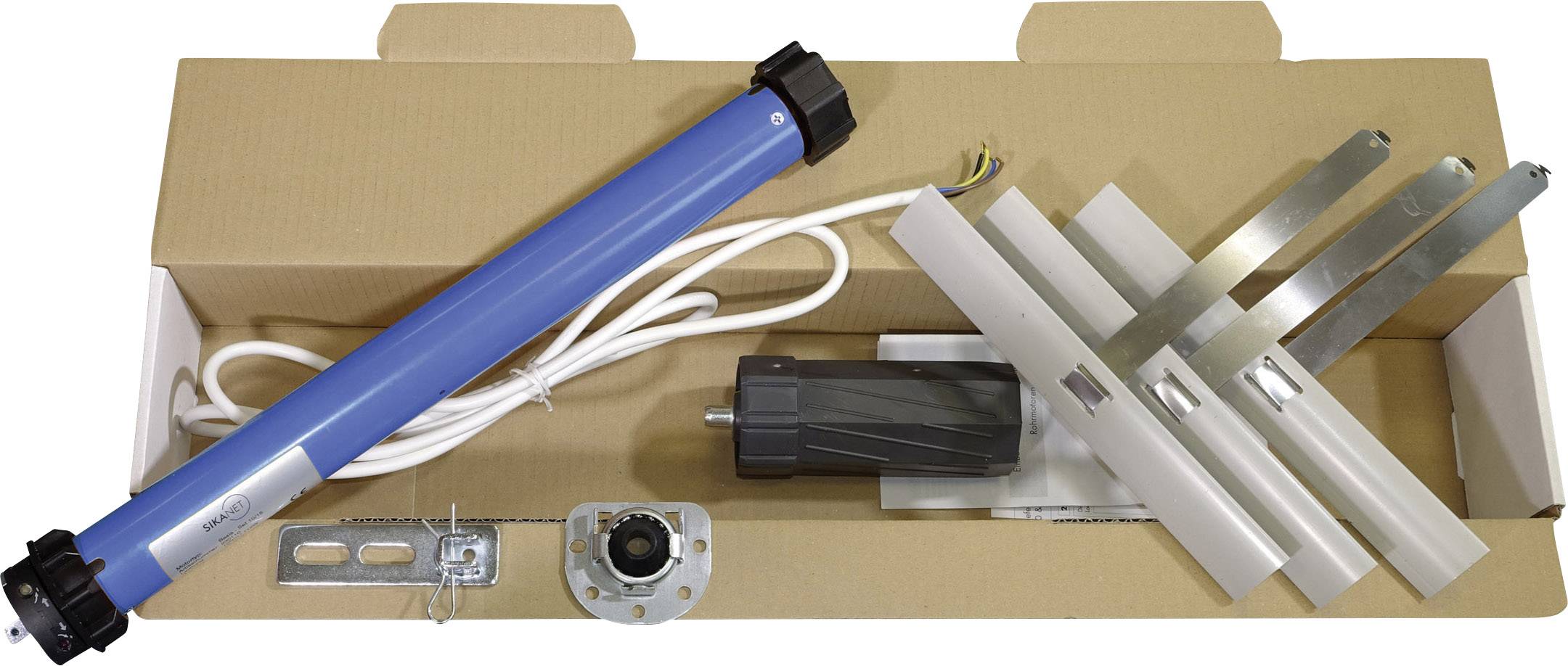

Scope of delivery
- Tubular motor 30 Nm
- Adapter/catches SW60
- Motor
- Counter bearing set
- Shaft CAPSULE SIZE 60
- 5 suspension springs
- User manual.
