Kalthoff 725221 725221 Portable electricity meter Digital MID-approved: Yes 1 pc(s)
Product type
Portable electricity meter
Display
Digital
Operating voltage
400V, 50 Hz
MID-approved
Yes
Reading type
Amperage
AC voltage
DC voltage
Power
Energy consumption
cos phi
Reactive power
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details

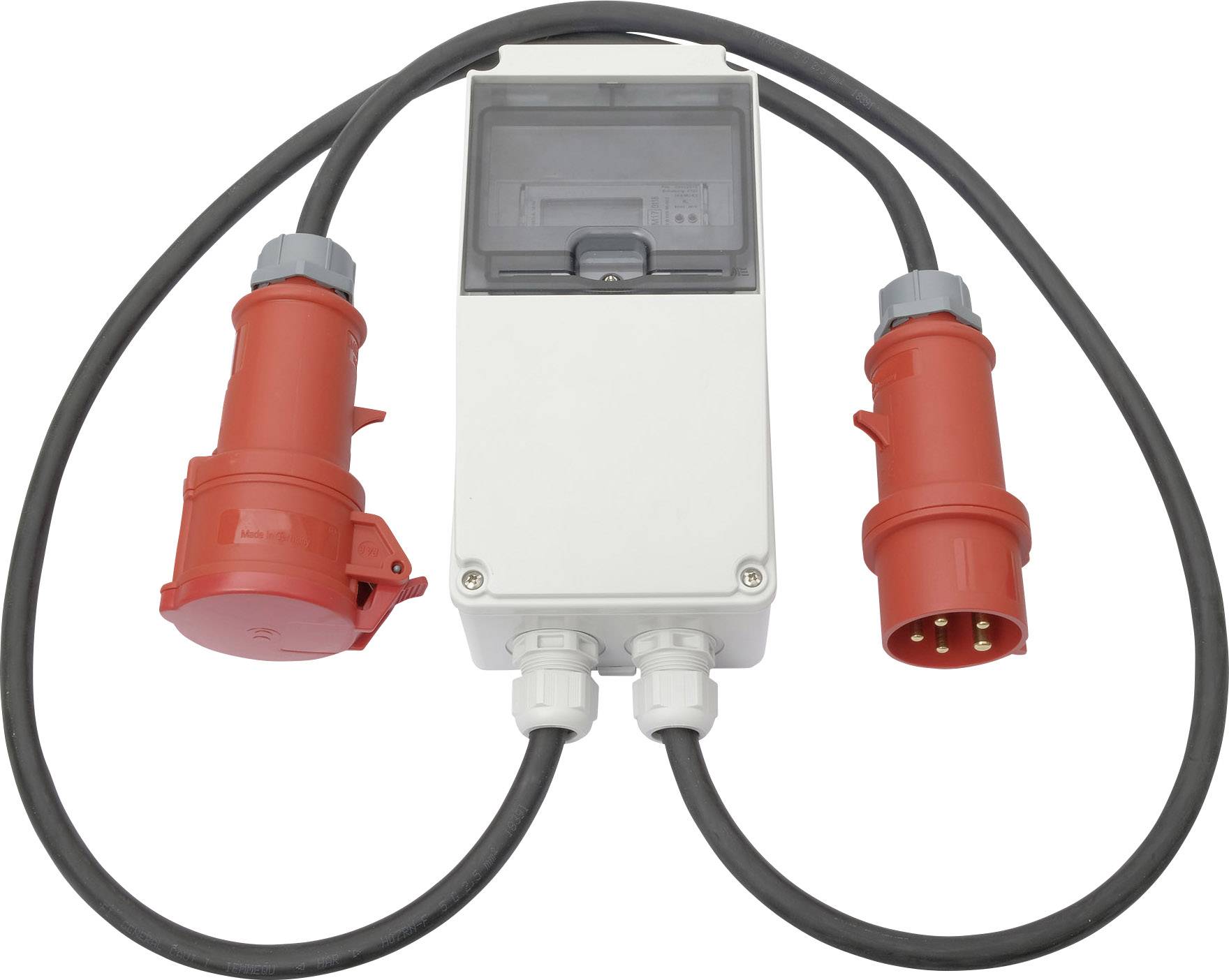

Bauer 725221 electricity meter box
- Housing IP66, plug connections IP44, sockets IP44
- Rated current 16A
- Housing: Unbreakable thermoplastic
- This text is machine translated.
Technical specifications
- Product type
Portable electricity meter
- Display
Digital
- Operating voltage
400V, 50 Hz
- MID-approved
Yes
- Reading type
Amperage
AC voltage
DC voltage
Power
Energy consumption
cos phi
Reactive power
- Current (max.)
85 A
- Current (min.)
0.25 A
- Current range
0.25 up to 85 A
- Type
725221
Documents & Downloads
Datasheet
Datasheet 2102565 Kalthoff 725221 725221 Portable electricity meter Digital MID-approved: Yes 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2102565 Kalthoff 725221 725221 Portable electricity meter Digital MID-approved: Yes 1 pc(s)
Description
Features
- CEE-Plug
- CEE-Coupling
