Kalthoff 725401 725401 Portable electricity meter Digital MID-approved: Yes 1 pc(s)
Product type
Portable electricity meter
Display
Digital
Calibration
Calibrated
Operating voltage
400V, 50Hz
MID-approved
Yes
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details

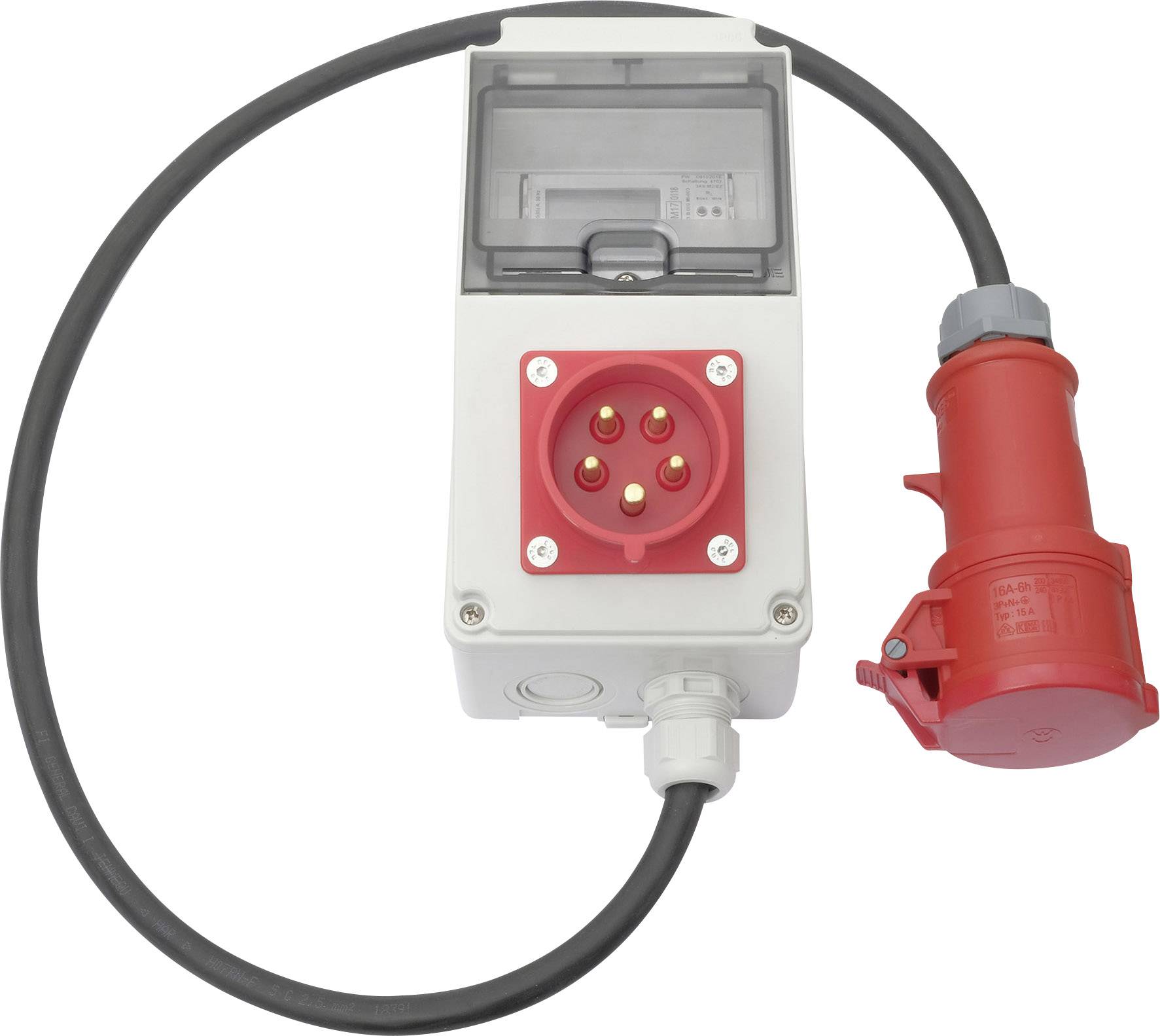

Bauer 725401 electricity meter box
- ABS-casing with PC-lid IP65
- Digital MID three-phase meter with LCD display
- Rubber cable H07RN-F5G • Cable length 3.00 m.
- CEE plug and 5-pin coupling (IP44)
- This text is machine translated.
Technical specifications
- Product type
Portable electricity meter
- Display
Digital
- Calibration
Calibrated
- Operating voltage
400V, 50Hz
- MID-approved
Yes
- Reading type
Reactive power
cos phi
Energy consumption
Frequency
Power
Apparent power
AC voltage
DC voltage
Amperage
- Nominal voltage range
400 V AC (max)
- Mains voltage (max.)
400 V AC
- Current (max.)
85 A
- Current (min.)
0.25 A
- Current range
0.25 up to 85 A
- Type
725401
Documents & Downloads
Datasheet
Datasheet 2102572 Kalthoff 725401 725401 Portable electricity meter Digital MID-approved: Yes 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2102572 Kalthoff 725401 725401 Portable electricity meter Digital MID-approved: Yes 1 pc(s)
Description
Features
- 32A/400V~ WITH H07RN-F5G6
