Kalthoff 725500 725500 Portable electricity meter Digital MID-approved: Yes 1 pc(s)
Product type
Portable electricity meter
Display
Digital
Calibration
Calibrated
Operating voltage
400V, 50 Hz
Operating voltage
400 V
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details

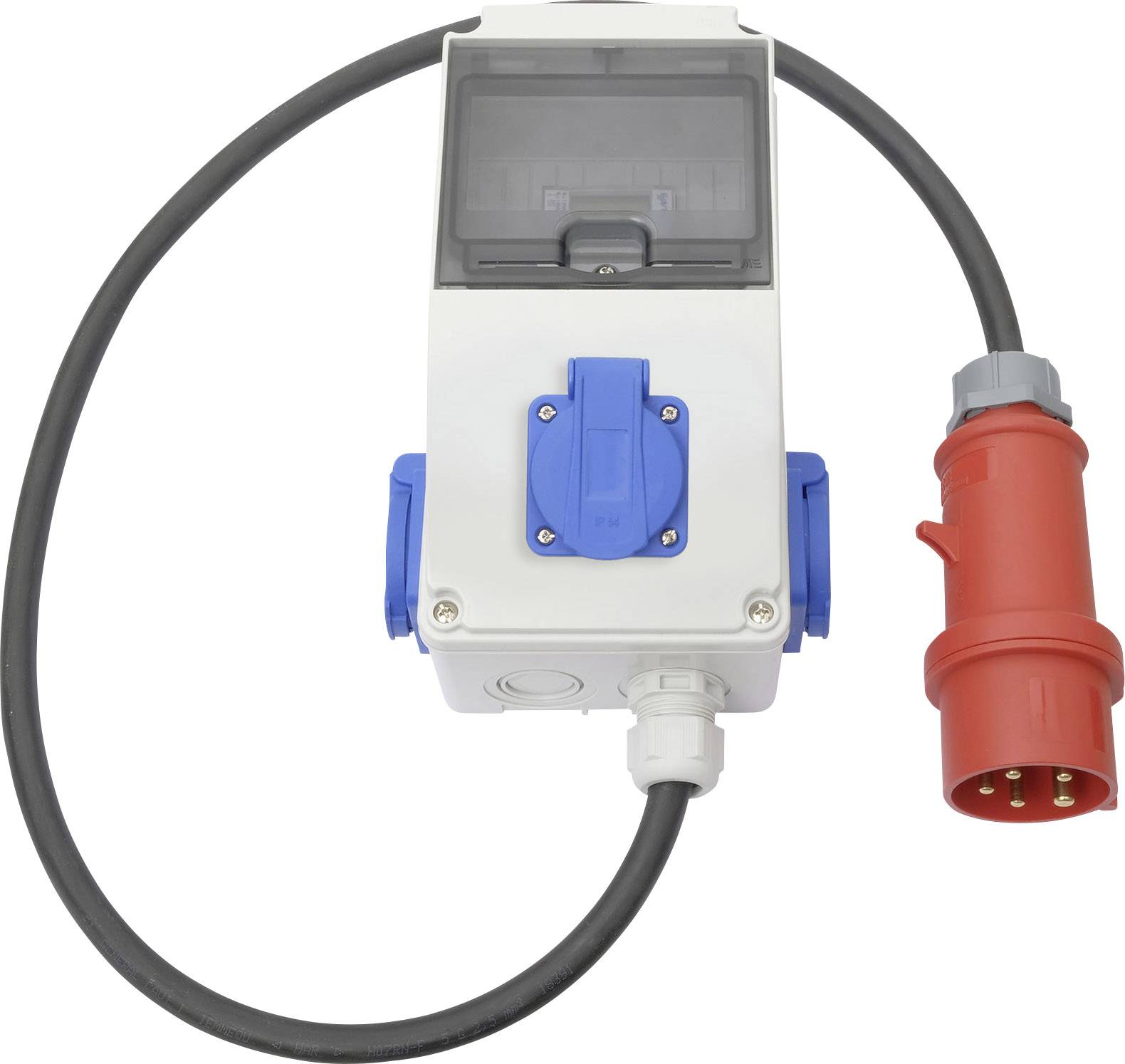

Bauer 725500 electricity meter box distributor
- 1x 16A/400V~ to 3x 16A/230V~
- ABS-casing with PC-lid IP65
- Digital MID three-phase meter with LCD display
- Rubber cable H07RN-F5G1.5 • Cable length 1.50m
- CEE plug and 5-pin coupling (IP44)
- 3 earthing contact sockets (IP54) individually protected
- This text is machine translated.
Technical specifications
- Product type
Portable electricity meter
- Display
Digital
- Calibration
Calibrated
- Operating voltage
400V, 50 Hz
- Operating voltage
400 V
- MID-approved
Yes
- Reading type
Energy consumption
- Nominal voltage range
230 up to 400 V
- Mains voltage (max.)
400 V
- Mains voltage (min.)
230 V
- Current (max.)
16 A
- Current range
16 A (max)
- Type
725500
