Name: Kerpen 7KS70010-1000 Electrical wiring CAT 7 S/FTP Yellow 1 pc(s)
Brand: Kerpen
SKU: 3798423

Kerpen 7KS70010-1000 Electrical wiring CAT 7 S/FTP Yellow 1 pc(s)-0

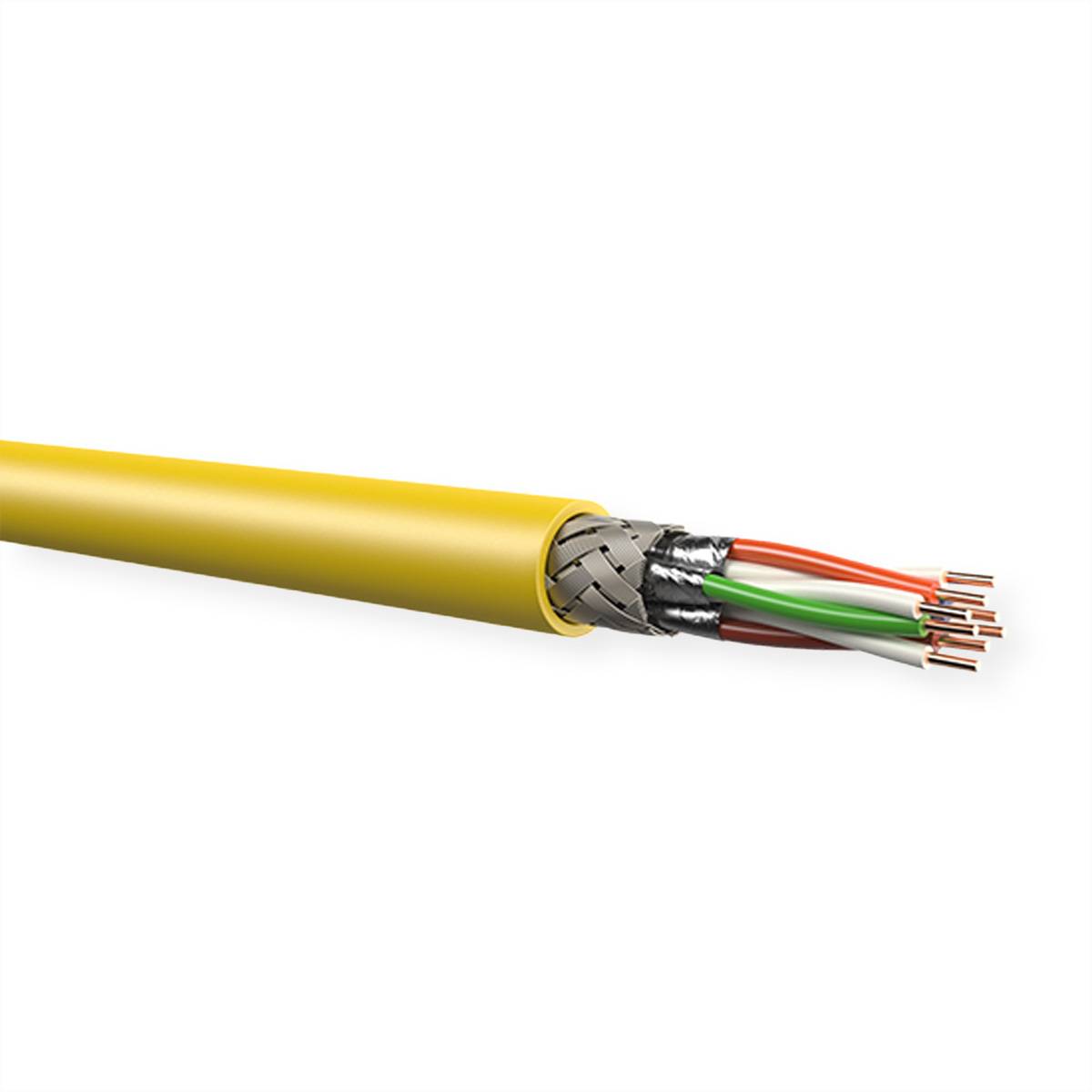

Kerpen 7KS70010-1000 Electrical wiring CAT 7 S/FTP Yellow 1 pc(s)-1

1/2

Product type

Electrical wiring

Specification

CAT 7

Shielding

S/FTP

Cable type

S/FTP

No. of leads

8 x

Datasheet (PDF)

Kerpen

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Halogen-free S/FTP data cable, with pair shield and overall shield, suitable for transmission up to 1000MHz...

Halogen-free S/FTP data cable
With pair shield and overall shield
Suitable for transmission up to 1000 MHz
Better than category 7 according to EN50173 or ISO/IEC 11801
Free of heavy metals

Technical specifications

Product group: Twisted pair cable
Product type: Installation cable
Colour: Yellow
Length: 1000 m
Content 1000 m
Shielding type S/FTP (PiMF)
Transmission quality Cat7/Class F
Impedance 100 Ohm
Number of wires 8
Wire cross-section (AWG) AWG 23
Wire type: Solid wire
Colour (cable): Yellow
Outer Ø cable 7.5 mm
Cable LSOH: Yes
Material outer sheath cable: Halogen-free compound
Technical features: Skew at 100 MHz (guide value): 5 ns/100m
Fire protection class DCA
Packaging height 500 mm
Package width 470 mm
Packaging depth 470 mm
Package weight: 63 kg
Gross weight: 63

Product type: Electrical wiring

: CAT 7

: S/FTP

Cable type: S/FTP

No. of leads: 8 x

No. of leads (part 2): 8 x

Cable features: Halogen-free
Flame-retardant

Outside Ø: 7 mm

Factory colour: Yellow

Content: 1 pc(s)

AWG max.: 23

Sold per metre: No

Manufacturer part #: 7KS70010-1000

Type: MegaLine F6-90 S/F H AWG 23 4P, 1000 m T

Standards: EN50173 ISO / IEC 11801. IEC 60332-3-24. IEC 60754-1/2. IEC 61034-1/2

Halogen-free: Yes

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 3798423 Kerpen 7KS70010-1000 Electrical wiring CAT 7 S/FTP Yellow 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3798423 Kerpen 7KS70010-1000 Electrical wiring CAT 7 S/FTP Yellow 1 pc(s)

Description

Halogen-free S/FTP data cable, with pair shield and overall shield, suitable for transmission up to 1000MHz Better than category 7 according to EN50173 or ISO/IEC 11801. 4 pairs AWG23/1-PiMF/wire-Ø: Max. 1.4 mm, with pair-shield aluminum-laminated polyester film, metal side outer and total shielding tin-plated Cu-braid, optical covering approx. 65%. Skew at 100 MHz (guide value): 5 ns/100m. Coupling resistance at 10 MHz (nominal value) 5 mOhm / m. Shielding attenuation up to 1000 MHz (nominal value): 70 dB Interference power suppression up to 1000 MHz (nominal value): 85 dB Free of heavy metals . . Fire behavior: Flame resistance: According to IEC 60332-3-24. Halogen freedom: According to IEC 60754-1/2. Smoke density: According to IEC 61034-1/2. Fire load 0.6 MJ/m
