Kingbright DLC2/6SURKD LED strip Red 180 mcd 120 ° 20 mA 1.95 V
Part number:
Item no:
Product type
LED strip
Forward voltage U(F)
1.95 V
Forward current I(F)
20 mA
Light intensity I(V)
180 mcd
Radiation angle
120 °
Datasheet (PDF)
Number
Total (€ 3.79 / piece)
€ 3.79
incl. VAT
14-day return policy included
Highlights & Details
20mm LED red with 6 LED chips
- Robust LED light bar display with 6 segments
- Uniform illumination of the light surface for excellent readability
- Low power consumption with high reliability and high light yield
Technical specifications
- Lead wire spacing 2.54 mm
- Number of segments / LEDs: 6
- Number of pins: 12
- Max. Power loss per segment: 75 mW
- Soldering temperature 260 °C for 3–5 seconds
- Product type
LED strip
- Type
DLC2/6SURKD
- Factory colour
Red
- Forward voltage U(F)
1.95 V
- Forward current I(F)
20 mA
- Operating voltage
1.95 V
- Operating current
20 mA
- Case type
Standard Light Bar casing (10.16 mm x 19.05 mm, 12 pins)
- Light intensity I(V)
180 mcd
- Wavelength
645 nm
- Radiation angle
120°
- LED features
stackable
- Technology
AlGaInP
- Dim
(L x W x H) 10.16 x 19.05 x 8 mm
- Min. temperature
-40 °C
- Max. temperature
85 °C
- Length
10.16 mm
- Width
19.05 mm
- Height
8 mm
- RoHS-compliant
Yes
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3825280 Kingbright DLC2/6SURKD LED strip Red 180 mcd 120 ° 20 mA 1.95 V
User & Safety Instructions
User & Safety Instructions 3825280 Kingbright DLC2/6SURKD LED strip Red 180 mcd 120 ° 20 mA 1.95 V
Description

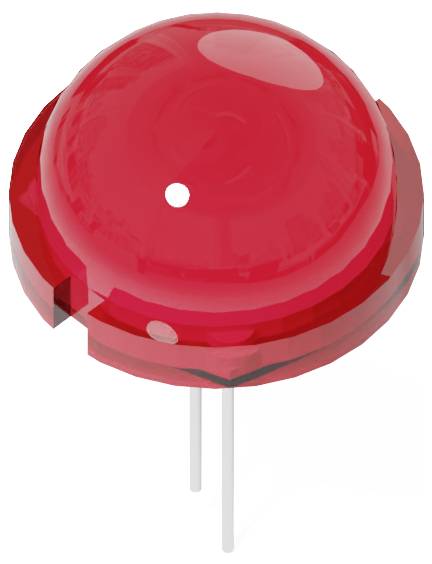

20 mm LED red with red diffuser round lens with 6 LED chips for signaling
This text is machine translated.
This text is machine translated.
Scope of delivery
- Kingbright DLC2/6SURKD LED light band component
Hints
All standard LED chips require a current-limiting resistor/constant current power source.
