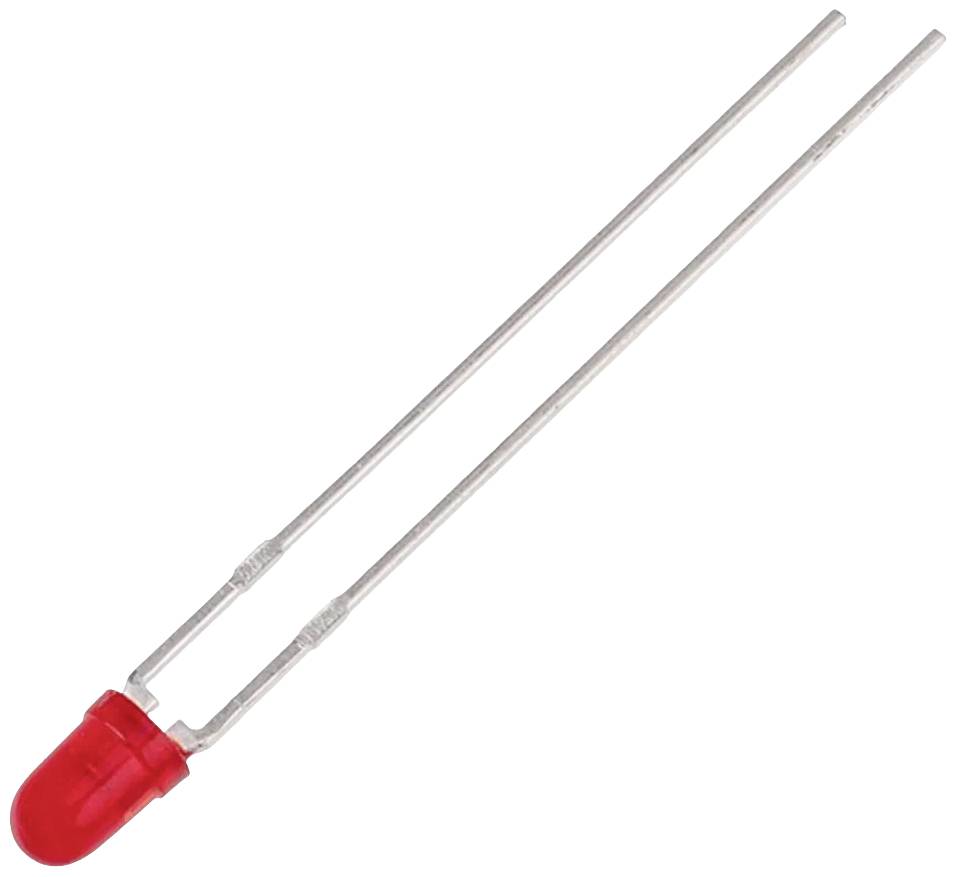

Image similar
Kingbright L-36BSURDK LED wired Red Circular 3 mm 800 mcd 60 ° 22 mA 14 V
Product type
LED wired
Forward voltage U(F)
14 V
Forward current I(F)
22 mA
Casing
3 mm
Light intensity I(V)
800 mcd
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 0.35 / piece)
€ 0.35
incl. VAT
14-day return policy included
Technical specifications
- Product type
LED wired
- Factory colour
Red
- Forward voltage U(F)
14 V
- Forward current I(F)
22 mA
- Operating voltage
14 V
- Operating current
22 mA
- Casing
3 mm
- Light intensity I(V)
800 mcd
- Wavelength
645 nm
- Radiation angle
60°
- Type (LEDs)
Diffused
- LED features
flashing
- Technology
AlGaInP
- Lens type
Circular
- Flash frequency
1.5 Hz -3 Hz
- Dim
(Ø) 3 mm
- Min. temperature
-40 °C
- Max. temperature
+85 °C
- (Ø)
3 mm
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3192548 Kingbright L-36BSURDK LED wired Red Circular 3 mm 800 mcd 60 ° 22 mA 14 V
User & Safety Instructions
User & Safety Instructions 3192548 Kingbright L-36BSURDK LED wired Red Circular 3 mm 800 mcd 60 ° 22 mA 14 V
Description
The Hyper Red source color devices are manufactured with AlGaInP on GaAs substrate light diodes. Electrostatic discharges and electrical surges can damage the LEDs. It is recommended to wear wrist strap or anti-static gloves when handling the LEDs. All equipment, equipment and machines must be electrically grounded.
This text is machine translated.
This text is machine translated.
Features
- T-1 housing with rectangular base
- With built-in flashing IC
- Operating voltage from 3.5V to 14V
Hints
All standard LED chips require a current-limiting resistor/constant current power source.
