Kingbright LED wired Red Circular 3 mm 12.5 mcd 130 ° 30 mA 2 V
EAN:
Part number:
Item no:
Product type
LED wired
Forward voltage U(F)
2 V
Forward current I(F)
30 mA
Casing
3 mm
Type
Radial lead
Number
Total (€ 0.05 / piece)
€ 0.05
incl. VAT
14-day return policy included
Highlights & Details

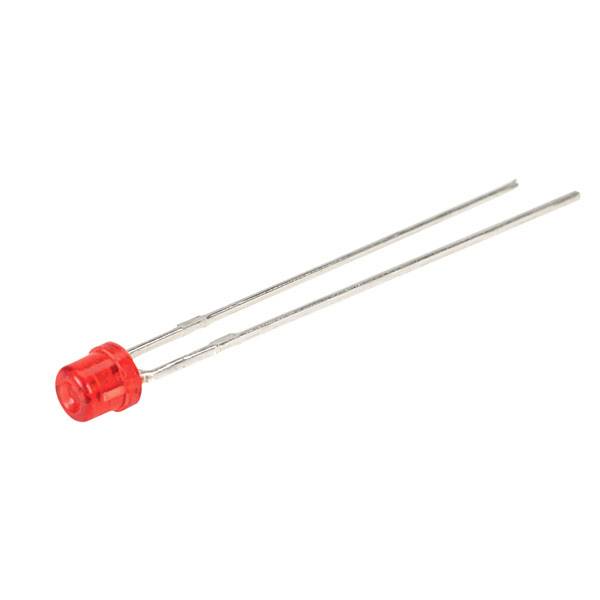

Kingbright L-1334IT 3mm Red LED Transparent
Our service for you
Technical specifications
- Product type
LED wired
- Type
L-1334IT
- Factory colour
Red
- Forward voltage U(F)
2 V
- Forward current I(F)
30 mA
- Casing
3 mm
- Type
Radial lead
- Light intensity I(V)
12.5 mcd
- Wavelength
625 nm
- Radiation angle
130°
- Type (LEDs)
Water clear
- Lens type
Circular
- Min. temperature
-40 °C
- Max. temperature
+85 °C
- RoHS-compliant
Yes
- Content
1 pc(s)
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2888656 Kingbright LED wired Red Circular 3 mm 12.5 mcd 130 ° 30 mA 2 V
Description
Features
- Cathode identified by short lead
- Wide viewing angle
- Low power consumption
- Reliable and rugged
- Long life - solid state reliability
- This text is machine translated.
Hints
All standard LED chips require a current-limiting resistor/constant current power source.
