Kinova Robotic arm MBS-KNV-02-02
EAN:
Part number:
Item no:
Sales and shipping:
Number
Total (€ 17,273.11 / piece)
€
Technical specifications
- Number of degrees of freedom: 6 DOF
- Net load (medium range, continuous): 0.5 kg
- Total weight: 5.4 kg
- Maximum range 760 mm
- Maximum speed 25 cm/sec.
- Actuator joint range: ± 155 to 160°
- Supply voltage 21 to 30 VDC, 24 VDC nominal
- Average power 20 W.
- Protection class: IP22
- Operating temperature: 0 °C to +40 °C
- Product type
Robotic arm
- Manufacturer part #
MBS-KNV-02-02
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3204928 Kinova Robotic arm MBS-KNV-02-02
Description

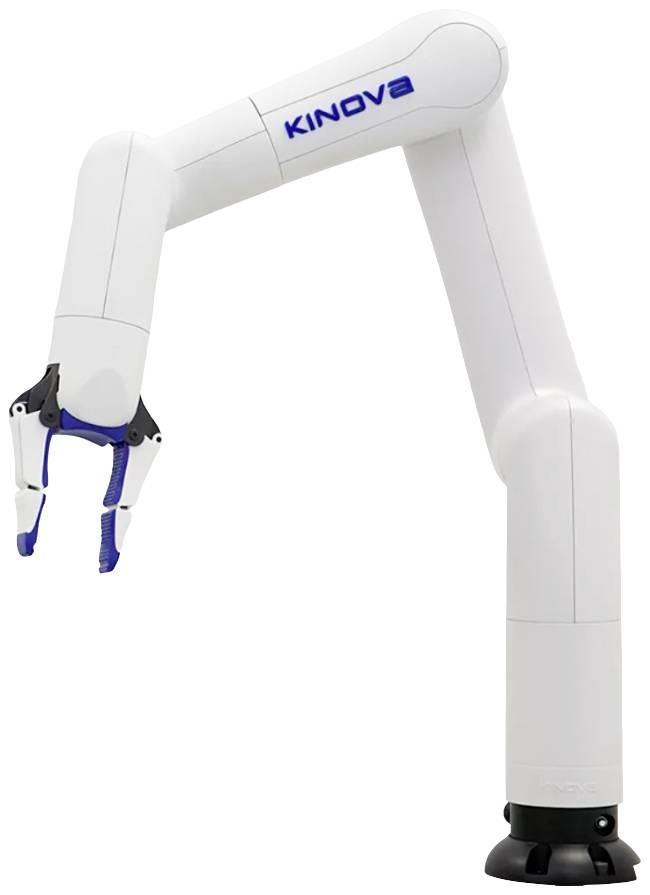

As the latest and most compact member of the ultra-lightweight Kinova robot series, the Gen3 lite offers a more cost-effective option if you are looking for one or more professional robotic arms for easy manipulation tasks. The Gen3 lite is perfectly suited for professional use in academic education. In addition, the Gen3 lite runs with the powerful and robust Kinova® Kortex™ API software, so you can work seamlessly with other Gen3 lite or Gen3 units and exchange programming. - Ultra-light weight - extremely portable - energy-saving.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1x Kinova Gen 3 Lite
- 1 x PSU with the right plug type
- 1x Quick-connect
- 1x base mount kit
