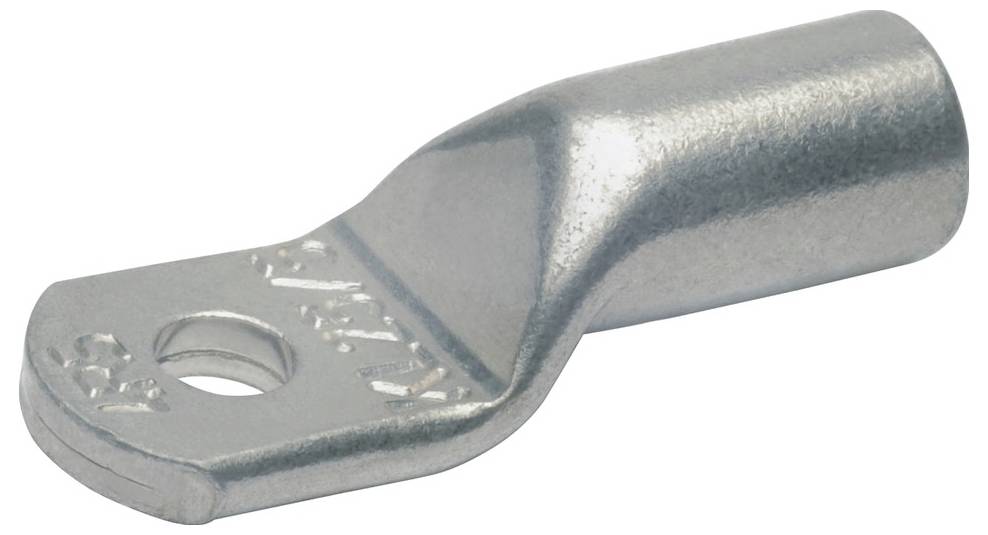

Image similar
Klauke 10R16 10R16 Crimp cable lug for sectioned multicore cables 180 ° M16 150 mm² 1 pc(s) Piece
Packaging type
Piece
Product type
Crimp cable lug
max. cross section
150 mm²
Thread size
M16
Content
1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details
Pipe cable lug 150 qmm
- Cross section (max.): 150 mm²
Technical specifications
- Flange shape: Ring-shaped
- Connection angle 180° (horizontal)
- Conductor class: Multi-wire
- Number of mounting holes: 1
- Insulated: No.
- Narrow flange design: No.
- With inspection hole: No.
- Nominal cross-section: 150 mm²
- Surface protection: Tin-plated
- Packaging type
Piece
- Product type
Crimp cable lug
- max. cross section
150 mm²
- Thread size
M16
- Connection angle
180°
- Contact material
Copper silver plated
- Content
1 pc(s)
- Manufacturer part #
10R16
- Insulation type
Not insulated
- Features
for sectioned multicore cables
- Type
10R16
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3429993 Klauke 10R16 10R16 Crimp cable lug for sectioned multicore cables 180 ° M16 150 mm² 1 pc(s) Piece
Description
For multi-wire round conductors such as VDE 0295 class 2. For pre-rounded multi-strand sector conductors. Ideal cable shoe for the switch cabinet construction. Annealed for optimum material and crimp properties. Flat contact surface and precise end processing for simple cable entry. Item identification on cable shoe. Complies with DIN EN 61373, class 1 B, with vibration tested. Galvanically tin-plated for protection against corrosion. Material Cu according to EN 13600.
