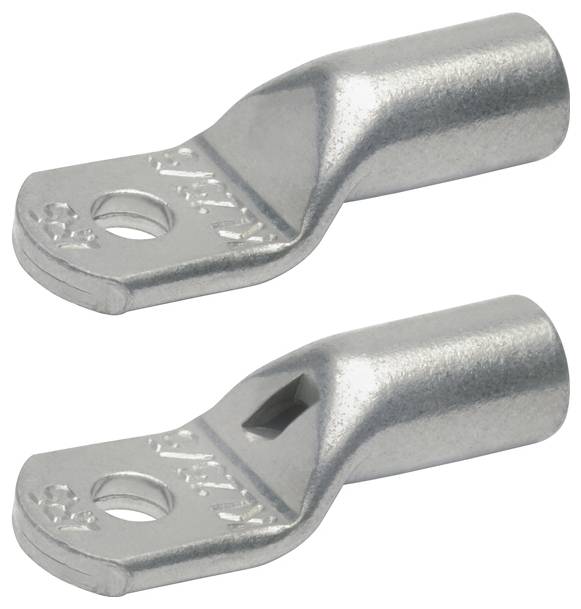

Klauke 10R8 10R8 Crimp cable lug tin-plated 180 ° M8 150 mm² 1 pc(s) Piece
Packaging type
Piece
Product type
Crimp cable lug
max. cross section
150 mm²
Thread size
M8
Content
1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details
Pipe cable lug 150 qmm
- Cross section (max.): 150 mm²
Technical specifications
- Flange shape: Ring-shaped
- Connection angle 180° (horizontal)
- Conductor class: Multi-wire
- Number of mounting holes: 1
- Insulated: No.
- Narrow flange design: No.
- With inspection hole: No.
- Nominal cross-section: 150 mm²
- Surface protection: Tin-plated
- Packaging type
Piece
- Product type
Crimp cable lug
- max. cross section
150 mm²
- Thread size
M8
- Connection angle
180°
- Contact material
Copper silver plated
- Content
1 pc(s)
- Manufacturer part #
10R8
- Insulation type
Not insulated
- Features
tin-plated
- Type
10R8
- Factory colour
Multicolour
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3429635 Klauke 10R8 10R8 Crimp cable lug tin-plated 180 ° M8 150 mm² 1 pc(s) Piece
Description
For multi-wire round conductors such as VDE 0295 class 2. For pre-rounded multi-strand sector conductors. Ideal cable shoe for the switch cabinet construction. Annealed for optimum material and crimp properties. Flat contact surface and precise end processing for simple cable entry. Item identification on cable shoe. Complies with DIN EN 61373, class 1 B, with vibration tested. Galvanically tin-plated for protection against corrosion. Material Cu according to EN 13600.
