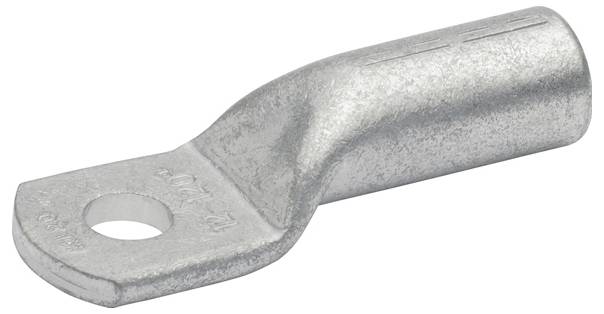

Klauke 113R12 113R12 Crimp cable lug for wire bundles 180 ° M12 1 pc(s) Piece
Packaging type
Piece
Product type
Crimp cable lug
Thread size
M12
Content
1 pc(s)
Connection angle
180 °
EAN:
Part number:
Item no:
Technical specifications
- Connection angle 180° (horizontal)
- Colour code: Without
- Number of mounting holes: 1
- Dial number: 32
- Nominal cross-section: 300 mm²
- Surface protection: Tin-plated
- Packaging type
Piece
- Product type
Crimp cable lug
- Thread size
M12
- Connection angle
180°
- Contact material
Tin plated
- Content
1 pc(s)
- Manufacturer part #
113R12
- Features
for wire bundles
- Type
113R12
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3429659 Klauke 113R12 113R12 Crimp cable lug for wire bundles 180 ° M12 1 pc(s) Piece
Description
Crimp terminal, for round conductors, e.g. according to DIN EN 60228 class 1, 2, 5 and 6, for strain-relieved copper ropes, e.g. according to DIN 48201 part 1, for round compacted multi-strand sector conductors, unique tool allocation by number code, according to DIN 46235, simple processing by pressing markings, optimal material and crimping properties through annealed material, Simple and secure mounting thanks to flat surface and precise end machining, material copper (EN13600), tin-plated surface to protect against corrosion, sleeves for compressed conductors and sleeves for 3-conductor and 4-conductor cable
