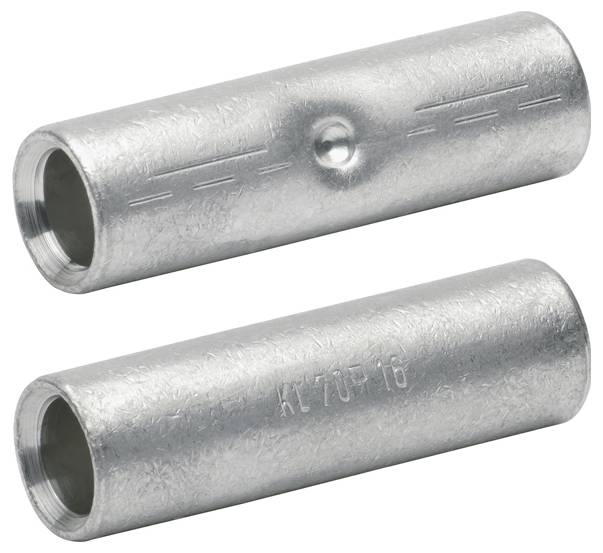

Klauke 128R Butt joint no insulation Not insulated 1 pc(s) Piece
Packaging type
Piece
Product type
Butt joint
Insulation type
Not insulated
Contact material
Copper silver plated
Content
1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Connection type: Butt connector
- Sleeve shape: Long
- Design DIN standard
- Insulation: Without
- Voltage range: Up to 15 kV
- Number of branches: 2
- For secure connections: No.
- Oil stop/center bridge: No.
- Suitable for solid conductors: Yes
- Suitable for multi-wire conductors: Yes
- Suitable for fine-wire conductors: Yes
- Suitable for high temperatures (up to 650 °C): No.
- Suitable for paint wire: No.
- Suitable for round wire: Yes
- Suitable for flat conductor: No.
- Nominal cross-section: 95 mm²
- Surface protection: Tin-plated
- Packaging type
Piece
- Product type
Butt joint
- Insulation type
Not insulated
- Contact material
Copper silver plated
- Content
1 pc(s)
- Manufacturer part #
128R
- Type
128R
- Insulation material
Copper
- Features
no insulation
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3429632 Klauke 128R Butt joint no insulation Not insulated 1 pc(s) Piece
Description
According to DIN 46267, part 1. With code for unique tool assignment. With press markings for proper crimping. With buttmark for precise cable insertion. Annealed for optimum material and crimp properties. Precisely machined ends for easy cable insertion. Tin galvanized Material Cu according to EN 13600.
