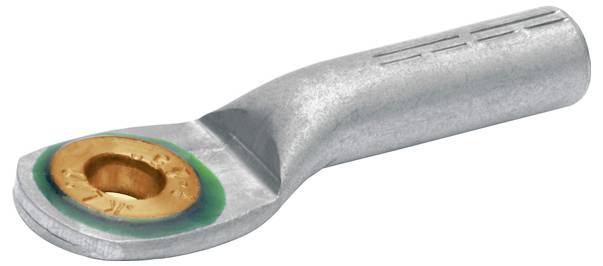

Klauke 309R12 309R12 Crimp cable lug + strain relief M12 150 mm² 1 pc(s) Piece
Packaging type
Piece
Product type
Crimp cable lug
max. cross section
150 mm²
Thread size
M12
Content
1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details
Al Cu crimp terminal 120RM/SM-150SE
- Cross section (max.): 150 mm²
Technical specifications
- Sleeve shape: Long
- Cross-sectional shape: Round/sector-shaped
- Number of mounting holes: 1
- Dial number: 22
- Long-term: No.
- Conforms to DIN: Yes
- Narrow flange design: No.
- Suitable for Al/St-ropes: Yes
- Nominal cross-section aluminum. SE: 150 mm²
- Nominal cross-section aluminum. RM/SM 120 mm²
- Packaging type
Piece
- Product type
Crimp cable lug
- max. cross section
150 mm²
- Thread size
M12
- Contact material
Aluminium
- Content
1 pc(s)
- Manufacturer part #
309R12
- Insulation type
Not insulated
- Min. cross section
120 mm²
- Features
+ strain relief
- Type
309R12
- Factory colour
Metal
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3429213 Klauke 309R12 309R12 Crimp cable lug + strain relief M12 150 mm² 1 pc(s) Piece
Description
Pipe dimensions according to DIN 46329. For strain-relieved connections of Al wires according to DIN EN 60228 and Al cables according to DIN EN 50182. With code for unique tool assignment. Filled with contact grease for optimal crimping properties. For screwing strain-relieved aluminum connections on Cu rails in wet rooms. For pre-rounded sector conductors. With Cu eye in the screw-on area. With press markings for proper crimping. Precisely machined ends for easy cable insertion. Blank, material E-Al. Cu according to EN 13600.
