Klauke 366R10 366R10 Crimp cable lug + strain relief M10 70 mm² Hole Ø: 10 mm 1 pc(s) Piece
Packaging type
Piece
Product type
Crimp cable lug
max. cross section
70 mm²
Thread size
M10
Hole Ø
10 mm
EAN:
Part number:
Item no:
Highlights & Details

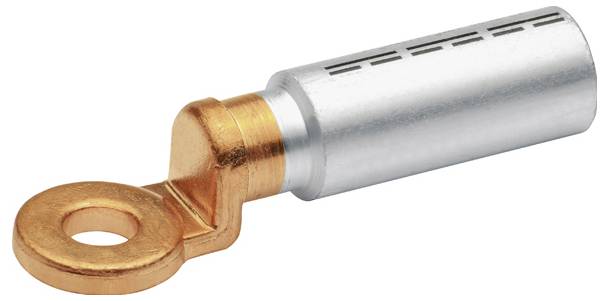

Al Cu crimp terminal 50RM/SM-70SE
- Hole Ø: 10 mm
- Cross section (max.): 70 mm²
Technical specifications
- Sleeve shape: Long
- Cross-sectional shape: Round/sector-shaped
- Number of mounting holes: 1
- Dial number: 16
- Longitudinal: Yes
- Corresponds to DIN: No.
- Narrow flange design: No.
- Suitable for Al/St-ropes: Yes
- Nominal cross-section aluminum. SE: 70 mm²
- Nominal cross-section aluminum. RM/SM 50 mm²
- Packaging type
Piece
- Product type
Crimp cable lug
- max. cross section
70 mm²
- Thread size
M10
- Hole Ø
10 mm
- Contact material
Aluminium
- Content
1 pc(s)
- Manufacturer part #
366R10
- Insulation type
Not insulated
- Min. cross section
50 mm²
- Features
+ strain relief
- Type
366R10
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3429622 Klauke 366R10 366R10 Crimp cable lug + strain relief M10 70 mm² Hole Ø: 10 mm 1 pc(s) Piece
Description
Pipe dimensions according to DIN 46329. For strain-relieved connections of Al wires according to DIN EN 60228 and Al cables according to DIN EN 50182. For screwing aluminum connections to copper rails in wet rooms. With code for unique tool assignment. Filled with contact grease for optimal crimping properties. Longitudinal tight execution with oil stop and solid Cu screw mounting plate. For pre-rounded sector conductors. With press markings for proper crimping. Precisely machined ends for easy cable insertion. Blank, material E-Al. Cu according to EN 13600.
