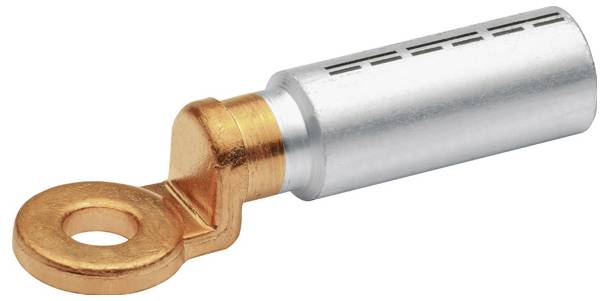

Klauke 369R12 369R12 Crimp cable lug + strain relief M12 150 mm² Hole Ø: 12 mm 1 pc(s) Piece
Packaging type
Piece
Product type
Crimp cable lug
max. cross section
150 mm²
Thread size
M12
Hole Ø
12 mm
EAN:
Part number:
Item no:
Highlights & Details
Al Cu crimp terminal 120RM/SM-150SE
- Hole Ø: 12 mm
- Cross section (max.): 150 mm²
Technical specifications
- Sleeve shape: Long
- Cross-sectional shape: Round/sector-shaped
- Number of mounting holes: 1
- Dial number: 22
- Longitudinal: Yes
- Corresponds to DIN: No.
- Narrow flange design: No.
- Suitable for Al/St-ropes: Yes
- Nominal cross-section aluminum. SE: 150 mm²
- Nominal cross-section aluminum. RM/SM 120 mm²
- Packaging type
Piece
- Product type
Crimp cable lug
- max. cross section
150 mm²
- Thread size
M12
- Hole Ø
12 mm
- Contact material
Aluminium
- Content
1 pc(s)
- Manufacturer part #
369R12
- Insulation type
Not insulated
- Min. cross section
120 mm²
- Features
+ strain relief
- Type
369R12
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3429316 Klauke 369R12 369R12 Crimp cable lug + strain relief M12 150 mm² Hole Ø: 12 mm 1 pc(s) Piece
Description
Pipe dimensions according to DIN 46329. For strain-relieved connections of Al wires according to DIN EN 60228 and Al cables according to DIN EN 50182. For screwing aluminum connections to copper rails in wet rooms. With code for unique tool assignment. Filled with contact grease for optimal crimping properties. Longitudinal tight execution with oil stop and solid Cu screw mounting plate. For pre-rounded sector conductors. With press markings for proper crimping. Precisely machined ends for easy cable insertion. Blank, material E-Al. Cu according to EN 13600.
