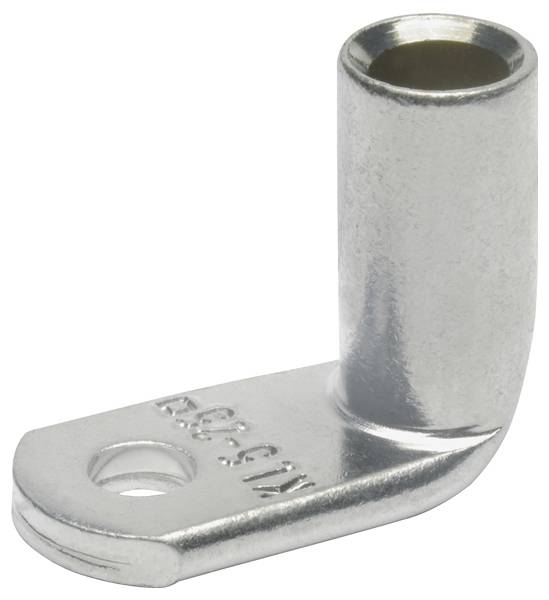

Klauke 49R10 Crimp cable lug M10 1 pc(s)
Product type
Crimp cable lug
Thread size
M10
Content
1 pc(s)
Contact material
Copper silver plated
Manufacturer part #
49R10
EAN:
Part number:
Item no:
Technical specifications
- Flange shape: Ring-shaped
- Connection angle 90°
- Conductor class: Multi-wire
- Number of mounting holes: 1
- Insulated: No.
- Narrow flange design: No.
- With inspection hole: No.
- Nominal cross-section: 120 mm²
- Surface protection: Tin-plated
- Product type
Crimp cable lug
- Thread size
M10
- Contact material
Copper silver plated
- Content
1 pc(s)
- Manufacturer part #
49R10
- Type
49R10
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3430198 Klauke 49R10 Crimp cable lug M10 1 pc(s)
Description
For multi-wire round conductors such as VDE 0295 class 2. For pre-rounded multi-strand sector conductors. Flat contact surface by special angular embossing technology. Annealed for optimum material and crimp properties. Precisely machined ends for easy cable insertion. Galvanically tin-plated for protection against corrosion. Material Cu according to EN 13600.
