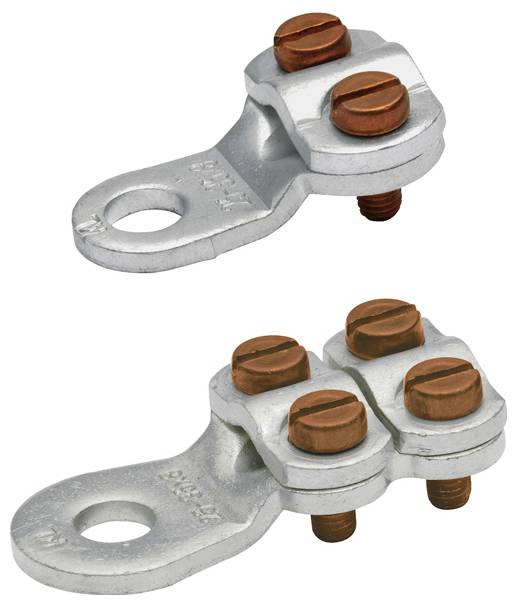

Klauke 574R8 Ring terminal 2x screw Cross section (max.)=25 mm² Hole Ø=8 mm 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Ring terminal
Thread size
M8
Hole Ø
8 mm
Content
1 pc(s)
Highlights & Details
Terminal lug 16-25qmm
- 16 - 25 mm²
Technical specifications
- Nominal cross-section copper. Right: 16-25 mm²
- Nominal cross-section copper. RM: 16-25 mm²
- Material of the conductor: Copper
- With tear-off head: No.
- Surface protection: Tin-plated
- Packaging type
Piece
- Product type
Ring terminal
- Thread size
M8
- Hole Ø
8 mm
- Content
1 pc(s)
- Contact material
Tin plated
- Manufacturer part #
574R8
- Type
574R8
- max. cross section
25 mm²
- Min. cross section
16 mm²
- Cross-section range
16 - 25 mm²
- Features
2x screw
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3430151 Klauke 574R8 Ring terminal 2x screw Cross section (max.)=25 mm² Hole Ø=8 mm 1 pc(s) Piece
Description
For screwing conductors to VDE 0295 class 1 and 2, for example in lightning protection area Also for working outdoors. Galvanically tin-plated, material Cu-ETP. 2 screws DIN 84 / DIN 933 bronze, F 60. 16 - 25 mm², M8, 2 screws.
