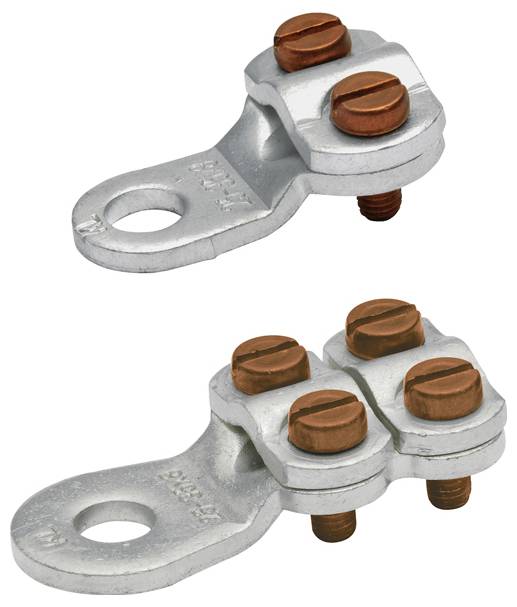

Klauke 585R12 Ring terminal 4x screw Cross section (max.)=35 mm² Hole Ø=12 mm 1 pc(s) Piece
Packaging type
Piece
Product type
Ring terminal
Thread size
M12
Hole Ø
12 mm
Content
1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details
Terminal clamp 25-35mm2
- 25 - 35 mm²
Technical specifications
- Nominal cross-section copper. Right: 25-35 mm²
- Nominal cross-section copper. RM: 25-35 mm²
- Material of the conductor: Copper
- With tear-off head: No.
- Surface protection: Tin-plated
- Packaging type
Piece
- Product type
Ring terminal
- Thread size
M12
- Hole Ø
12 mm
- Content
1 pc(s)
- Contact material
Tin plated
- Manufacturer part #
585R12
- Type
585R12
- max. cross section
35 mm²
- Min. cross section
25 mm²
- Insulation material
CU-ETP
- Cross-section range
25 - 35 mm²
- Features
4x screw
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3429619 Klauke 585R12 Ring terminal 4x screw Cross section (max.)=35 mm² Hole Ø=12 mm 1 pc(s) Piece
Description
For screwing conductors to VDE 0295 class 1 and 2, for example in lightning protection area Also for working outdoors. Galvanically tin-plated, material Cu-ETP. 4 screws DIN 84 / DIN 933 bronze, F 60. 25 - 35 mm², M12, 4 screws.
