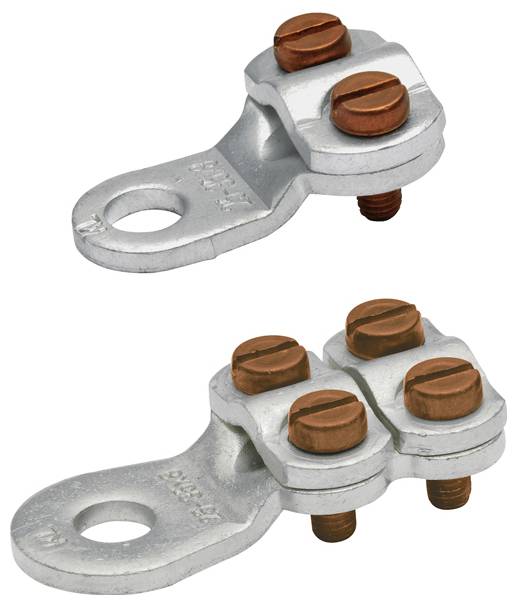

Klauke 586R10BK Ring terminal with screw connection Cross section (max.)=50 mm² Hole Ø=10 mm 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Ring terminal
Thread size
M10
Hole Ø
10 mm
Content
1 pc(s)
Highlights & Details
Terminal clamp 35-50mm2
- 35 - 50 mm²
Technical specifications
- Nominal cross-section copper. Right: 35-50 mm²
- Nominal cross-section copper. RM: 35-50 mm²
- Material of the conductor: Copper
- With tear-off head: No.
- Surface protection: Plain
- Packaging type
Piece
- Product type
Ring terminal
- Thread size
M10
- Hole Ø
10 mm
- Content
1 pc(s)
- Contact material
CU-ETP
- Manufacturer part #
586R10BK
- Type
586R10BK
- max. cross section
50 mm²
- Min. cross section
35 mm²
- Cross-section range
35 - 50 mm²
- Features
with screw connection
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3430152 Klauke 586R10BK Ring terminal with screw connection Cross section (max.)=50 mm² Hole Ø=10 mm 1 pc(s) Piece
Description
For screwing conductors to VDE 0295 class 1 and 2, for example in lightning protection area Also for working outdoors. Material Cu-ETP, bare. 4 screws DIN 84 / DIN 933 bronze, F 60. 35 - 50 mm², M10, 4 screws.
