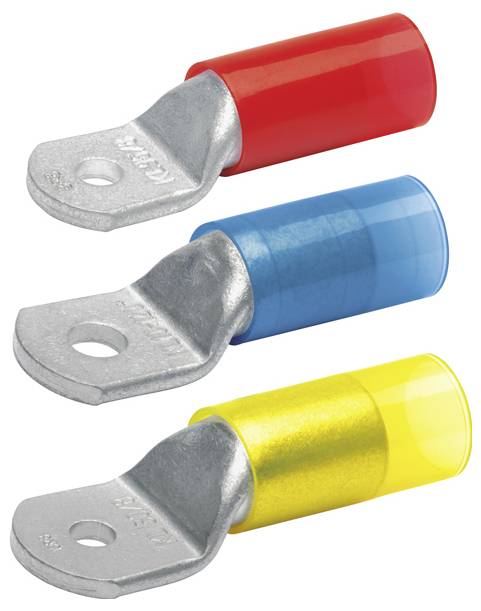

Klauke 603R8 Crimp cable lug tin-plated 180 ° M8 16 mm² 1 pc(s) Piece
Packaging type
Piece
Product type
Crimp cable lug
max. cross section
16 mm²
Thread size
M8
Content
1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details
Pipe cable lug 16qmm insulated
- Cross section (max.): 16 mm²
Technical specifications
- Flange shape: Ring-shaped
- Colour of the insulation: Blue
- Connection angle 180° (horizontal)
- Conductor class: Multi-wire
- Number of mounting holes: 1
- Insulated: Yes
- Narrow flange design: No.
- With inspection hole: No.
- Nominal cross-section: 16 mm²
- Surface protection: Tin-plated
- Packaging type
Piece
- Product type
Crimp cable lug
- max. cross section
16 mm²
- Thread size
M8
- Connection angle
180°
- Contact material
Copper silver plated
- Content
1 pc(s)
- Manufacturer part #
603R8
- Insulation type
Insulated
- Features
tin-plated
- Type
603R8
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3430206 Klauke 603R8 Crimp cable lug tin-plated 180 ° M8 16 mm² 1 pc(s) Piece
Description
For multi-wire conductors such as VDE 0295 class 2. For pre-rounded multi-strand sector conductors. No further insulation of the pressed connection is necessary. Is directly pressed with the insulation. Annealed for optimum material and crimp properties. Precisely machined ends for easy cable insertion. Temperature resistance up to 105 ° C. Galvanically tin-plated. Cable shoe: Material Cu according to EN 13600. Insulation sleeve PA, halogen-free
