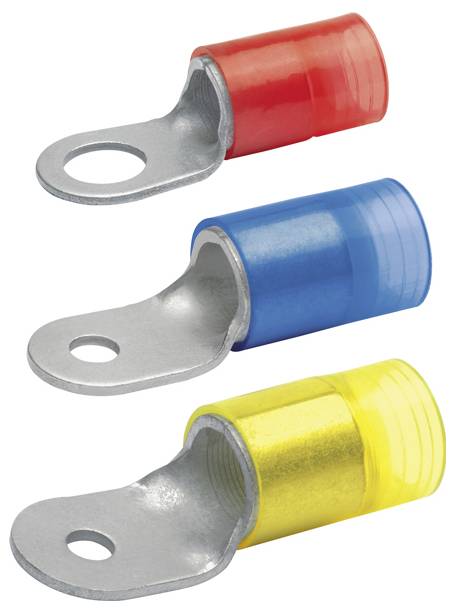

Image similar
Klauke 63012 Ring terminal Cross section (max.)=2.5 mm² 1 pc(s)
Product type
Ring terminal
Thread size
M12
Content
1 pc(s)
max. cross section
2.5 mm²
Min. cross section
1.5 mm²
EAN:
Part number:
Item no:
Highlights & Details
CRIMPING lug 1.5-2.5QMM insulated
- 1.5 - 2.5 mm²
Technical specifications
- Flange shape: Ring-shaped
- Sleeve shape: Short
- Colour of the insulation: Blue
- Insulation: Polyamide (PA)
- Corresponds to DIN: No.
- For secure connections: No.
- Suitable for solid conductor: No.
- Suitable for multi-wire conductor: No.
- Suitable for fine-wire conductors: Yes
- Suitable for high temperatures (up to 650 °C): No.
- Suitable for paint wire: No.
- Suitable for round wire: Yes
- Suitable for flat conductor: No.
- Bandware: No.
- Nominal cross-section: 1.5-2.5 mm²
- Surface protection: Tin-plated
- Product type
Ring terminal
- Thread size
M12
- Content
1 pc(s)
- Contact material
Copper silver plated
- Manufacturer part #
63012
- Type
63012
- max. cross section
2.5 mm²
- Min. cross section
1.5 mm²
- Cross-section range
1.5 - 2.5 mm²
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3429832 Klauke 63012 Ring terminal Cross section (max.)=2.5 mm² 1 pc(s)
Description
With expanding insulation sleeve. For fine and ultra-fine stranded conductors. High-quality hard soldering process in crimping. Insulated, halogen-free. Temperature resistance up to 105° C. Easy-Entry insulation for simple cable entry. Cross-section dependent color coding Tin-plated. Material Cu-ETP. PA insulation sleeve
