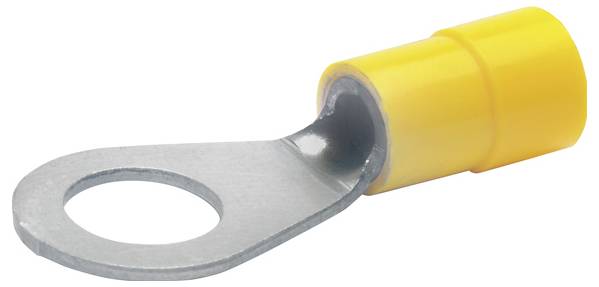

Klauke 65012 Ring terminal tin-plated Cross section (max.)=6 mm² Hole Ø=12 mm 1 pc(s) Piece
Packaging type
Piece
Product type
Ring terminal
Thread size
M12
Hole Ø
12 mm
Content
1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details
Crimp terminal 4-6QMM insulated
- 4 - 6 mm²
Technical specifications
- Flange shape: Ring-shaped
- Flange length 18 mm
- Sleeve shape: Short
- Colour of the insulation: Yellow
- Insulation: Polyamide (PA)
- Total length: 36.5 mm.
- Corresponds to DIN: No.
- For secure connections: No.
- Suitable for solid conductor: No.
- Suitable for multi-wire conductor: No.
- Suitable for fine-wire conductors: Yes
- Suitable for high temperatures (up to 650 °C): No.
- Suitable for paint wire: No.
- Suitable for round wire: Yes
- Suitable for flat conductor: No.
- Bandware: No.
- Halogen-free: Yes
- Nominal cross-section: 4-6 mm²
- Maximum current (Imax): 25.5 A.
- Surface protection: Tin-plated
- Packaging type
Piece
- Product type
Ring terminal
- Thread size
M12
- Hole Ø
12 mm
- Content
1 pc(s)
- Contact material
Copper silver plated
- Manufacturer part #
65012
- Type
65012
- max. cross section
6 mm²
- Min. cross section
4 mm²
- Insulation material
Polyamide
- Dimensions
36.5 mm
- Cross-section range
4 - 6 mm²
- Features
tin-plated
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3430779 Klauke 65012 Ring terminal tin-plated Cross section (max.)=6 mm² Hole Ø=12 mm 1 pc(s) Piece
Description
Insulated crimp terminal, M12 according to DIN 46237, insulation sleeve PA, 4-6 mm²
