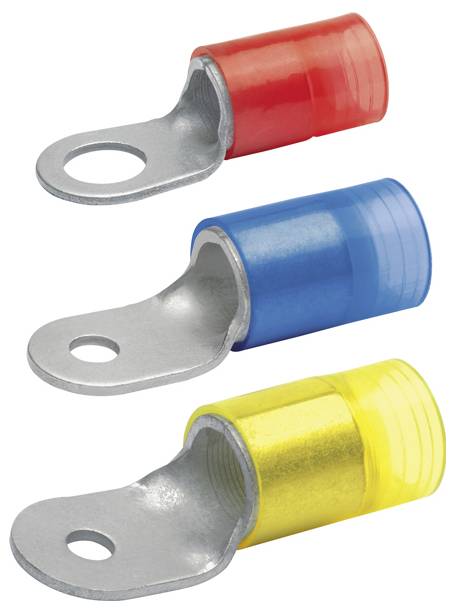

Klauke 6526 Ring terminal Not insulated 1 pc(s) Single
Packaging type
Single
Product type
Ring terminal
Thread size
M6
Insulation type
Not insulated
Content
1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details
Crimp terminal 10QMM insulated
- -
Technical specifications
- Flange shape: Ring-shaped
- Flange length 15 mm
- Sleeve shape: Short
- Colour of the insulation: Red
- Insulation: Without
- Total length 34 mm.
- Corresponds to DIN: No.
- For secure connections: No.
- Suitable for solid conductor: No.
- Suitable for multi-wire conductors: Yes
- Suitable for fine-wire conductors: Yes
- Suitable for high temperatures (up to 650 °C): No.
- Suitable for paint wire: No.
- Suitable for round wire: Yes
- Suitable for flat conductor: No.
- Bandware: No.
- Halogen-free: Yes
- Nominal cross-section: 10 mm²
- Bolt dimension (Imperial) 6
- Surface protection: Tin-plated
- Packaging type
Single
- Product type
Ring terminal
- Thread size
M6
- Insulation type
Not insulated
- Content
1 pc(s)
- Contact material
Copper silver plated
- Manufacturer part #
6526
- Type
6526
- Insulation material
PA
- Dimensions
Flanschlänge: 15 mm. Gesamtlänge: 34 mm mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3429997 Klauke 6526 Ring terminal Not insulated 1 pc(s) Single
Description
For conductors such as VDE 0295 standard, class 2, 5 and 6. High-quality hard soldering process in crimping. PA insulation sleeve, halogen-free, with Easy-Entry cable entry. Dimensions in the conductor connection area according to DIN 46234. Grooved profile for improved contact characteristics. Cross section-dependent color coding Temperature resistance up to 105 ° C. Galvanically tin-plated for protection against corrosion. Material Cu-ETP.
