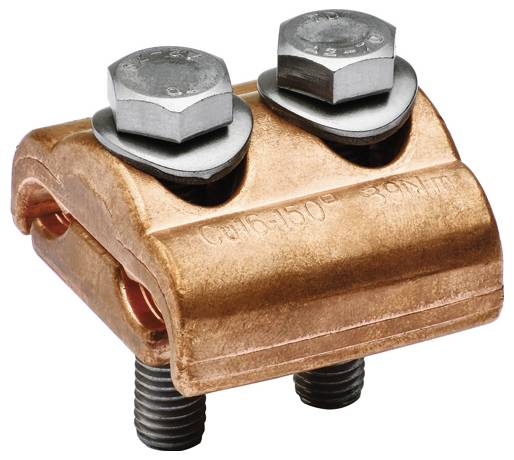

Klauke SAK1095 SAK1095 Tap terminal flexible: 10-95 mm² fixed: 10-95 mm² 1 pc(s) Piece
Packaging type
Piece
Product type
Tap terminal
Cross section (flexible) (min.)
10 mm²
Cross section (flexible) (max.)
95 mm²
Cross section (inflexible) (min.)
10 mm²
EAN:
Part number:
Item no:
Technical specifications
- Connection type: Screw connection
- Nominal cross-section of main conductor. SE: 10-95 mm²
- Nominal cross-section of main conductor. SM: 10-95 mm²
- Nominal cross-section of branch conductor. SE/RE: 10-95 mm²
- Nominal cross-section of branch conductor. SM/RM 10-95 mm²
- Terminal duct opening of main conductor: Open on both sides
- Terminal duct opening for branch conductor: Open on both sides
- Core material: Copper
- Branch slider material: Copper
- Terminal insulated: No.
- Surface protection: Plain
- Packaging type
Piece
- Product type
Tap terminal
- Cross section (flexible) (min.)
10 mm²
- Cross section (flexible) (max.)
95 mm²
- Cross section (inflexible) (min.)
10 mm²
- Cross section (inflexible) (max.)
95 mm²
- Content
1 pc(s)
- Manufacturer part #
SAK1095
- Connection
Screw terminal
- Contact material
Copper
- Connector clip features
Strain relief
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3429665 Klauke SAK1095 SAK1095 Tap terminal flexible: 10-95 mm² fixed: 10-95 mm² 1 pc(s) Piece
Description
Screw-branch terminals 10 - 95 mm² made of copper for strain-relieved copper ropes and for screwing round conductors according to DIN EN 60228 class 1 and class 2
