Klauke ST1717 Pin terminal Planar version 16 mm² Not insulated Metal 1 pc(s)
EAN:
Part number:
Item no:
max. cross section
16 mm²
Pin length
15 mm
Pin Ø
5.4 mm
Insulation type
Not insulated
Contact material
Cathode copper, tin plated
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
5
-
€ 0.65
15
8% = € 0.05
€ 0.60
25
12% = € 0.08
€ 0.57
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 5
Total (€ 0.65 / piece)
€
Highlights & Details
DIN 46230 blade connector, non-insulated
- Pin length: 15 mm
- Pin diameter: 5.4 mm
Technical specifications
- max. cross section
16 mm²
- Pin length
15 mm
- Pin Ø
5.4 mm
- Insulation type
Not insulated
- Factory colour
Metal
- Features
Planar version
- Contact material
Cathode copper, tin plated
- Support sleeve
No
- Manufacturer part #
ST1717
- Type
ST1717
- Content
1 pc(s)
- Dim
- RoHS-compliant
Yes
- Cross-section range
16 mm² (max)
- Material (details)
Cu-ETP, tin-plated
- Type
Type B
- Crimp area (max.)
16 mm²
- Cross section
16 mm²
- Product type
Pin terminal
Variants(All information is without VAT, plus shipping costs)
Pin length
max. cross section
Pin Ø
Klauke ST1717 Pin terminal Planar version 16 mm² Not insulated Metal 1 pc(s)
This article
15 mm
16 mm²
5.4 mm
Minimum order quantity: 5
Multiple: 1
€ 0.65*

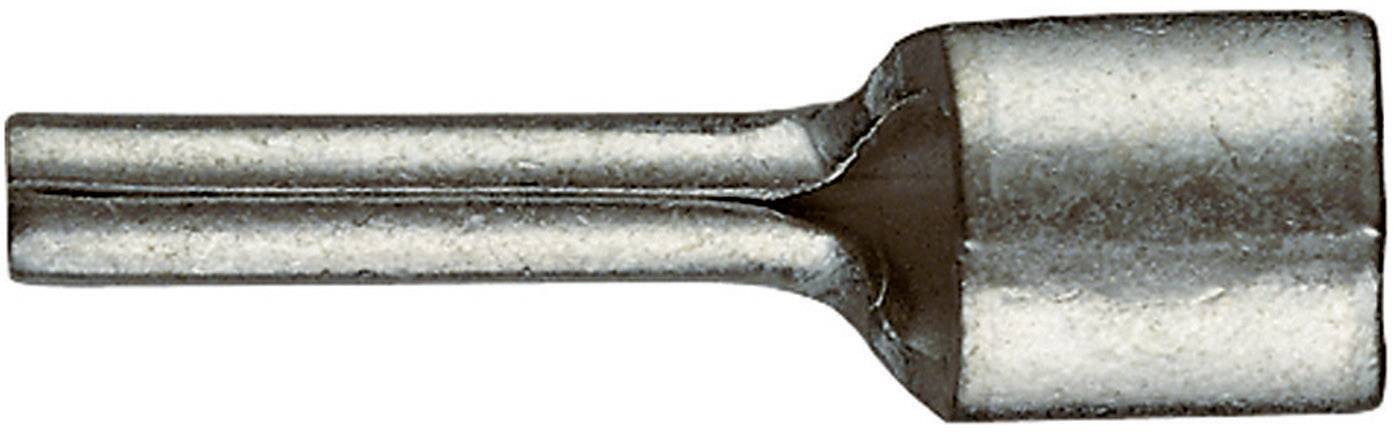

Klauke ST1705 Pin terminal 0.50 mm² 1 mm² Not insulated Metal 1 pc(s)
10 mm
1 mm²
1.8 mm
Minimum order quantity: 15
Multiple: 1
€ 0.21*
Klauke ST1710 Pin terminal 1.50 mm² 2.50 mm² Not insulated Metal 1 pc(s)
10 mm
2.50 mm²
2.3 mm
Minimum order quantity: 15
Multiple: 1
€ 0.24*
Klauke ST1715 Pin terminal 4 mm² 6 mm² Not insulated Metal 1 pc(s)
11 mm
6 mm²
3.6 mm
Minimum order quantity: 10
Multiple: 1
€ 0.36*
Klauke ST1716 Pin terminal Planar version 10 mm² Not insulated Metal 1 pc(s)
11 mm
10 mm²
4.3 mm
Minimum order quantity: 7
Multiple: 1
€ 0.53*
Documents & Downloads
Datasheet
Datasheet 736499 Klauke ST1717 Pin terminal Planar version 16 mm² Not insulated Metal 1 pc(s)
User & Safety Instructions
User & Safety Instructions 736499 Klauke ST1717 Pin terminal Planar version 16 mm² Not insulated Metal 1 pc(s)
Description
For conductors such as VDE 0295 class 2, 5 and 6. Hard soldered in crimping area. Grooved profile for improved contact characteristics.
