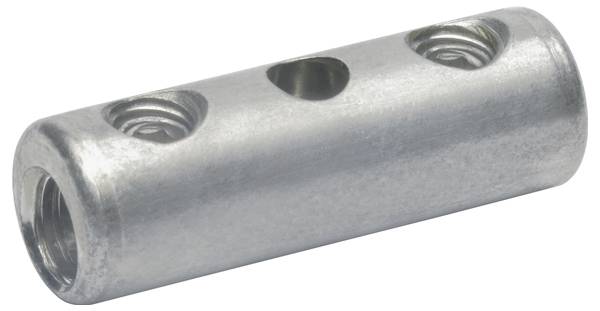

Klauke SV200 SV200 Screw connector flexible: 2.5-10 mm² fixed: 2.5-16 mm² 1 pc(s)
Product type
Screw connector
Cross section (flexible) (min.)
2.5 mm²
Cross section (flexible) (max.)
10 mm²
Cross section (inflexible) (min.)
2.5 mm²
Cross section (inflexible) (max.)
16 mm²
EAN:
Part number:
Item no:
Technical specifications
- Voltage range: Up to 15 kV
- Oil stop/center bridge: No.
- Nominal cross-section copper. Right: 2.5-16 mm²
- Nominal cross-section copper. RM: 2.5-10 mm²
- Material of the conductor: Copper
- Number of screws: 2
- With insulation: No.
- With solder hole: No.
- Surface protection: Tin-plated
- Product type
Screw connector
- Cross section (flexible) (min.)
2.5 mm²
- Cross section (flexible) (max.)
10 mm²
- Cross section (inflexible) (min.)
2.5 mm²
- Cross section (inflexible) (max.)
16 mm²
- Content
1 pc(s)
- Manufacturer part #
SV200
- Connection
Screw terminal
- Contact material
Tin plated
- Connector clip features
Test window
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3430592 Klauke SV200 SV200 Screw connector flexible: 2.5-10 mm² fixed: 2.5-16 mm² 1 pc(s)
Description
Matching cross-section range for street lighting. Ideal for connecting equal and unequal conductor cross-sections. Special groove profile inside for destroying the oxidation layer during screwing. With inspection hole for cable insertion control Tin-plated. Clamp body: Brass (CuZn). Screws: Stainless steel. tin-plated.
