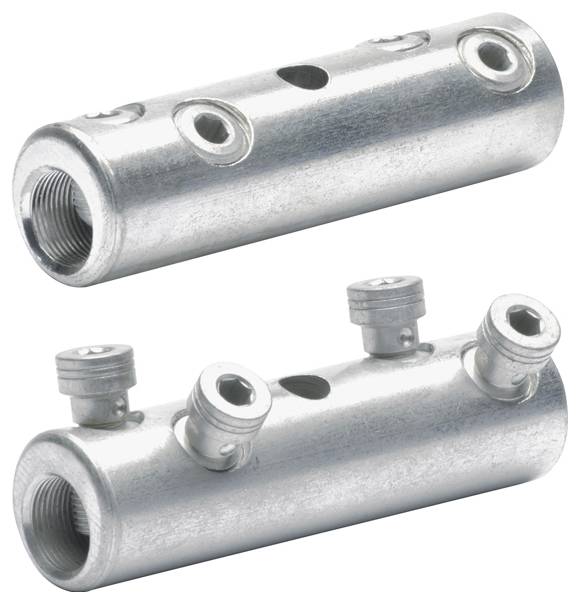

Klauke SV306 SV306 Screw connector flexible: - fixed: - 1 pc(s) Piece
Packaging type
Piece
Product type
Screw connector
Content
1 pc(s)
Manufacturer part #
SV306
Connection
Screw terminal
EAN:
Part number:
Item no:
Technical specifications
- Voltage range: Up to 15 kV
- Oil stop/center bridge: No.
- Nominal cross-section aluminum. Right: 35-185 mm²
- Nominal cross-section aluminum. RM: 35-185 mm²
- Nominal cross-section aluminum. SE: 35-185 mm²
- Nominal cross-section aluminum. SM: 35-185 mm²
- Nominal cross-section copper. Right: 35-185 mm²
- Nominal cross-section copper. RM: 35-185 mm²
- Nominal cross-section copper. SM: 35-185 mm²
- Material of conductor: Aluminium/copper
- Number of screws: 4
- With insulation: No.
- With solder hole: No.
- Surface protection: Plain
- Packaging type
Piece
- Product type
Screw connector
- Content
1 pc(s)
- Manufacturer part #
SV306
- Connection
Screw terminal
- Contact material
Aluminium alloy
- Connector clip features
Test window
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3430687 Klauke SV306 SV306 Screw connector flexible: - fixed: - 1 pc(s) Piece
Description
Ideal for connecting equal and unequal conductor cross-sections. For connecting different types of conductor and materials according to VDE 0295 class 1 and 2 and Al conductor according to DIN 48201 part 5. With inspection hole for cable insertion control (different materials must not come into contact). Special groove profile inside for destroying the oxidation layer during screwing. Design with 4 screws. Clamp body: High strength aluminum alloy.
