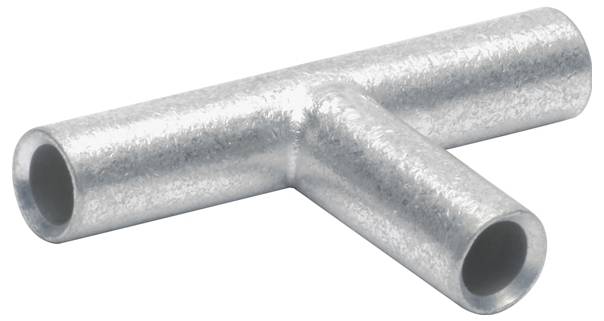

Klauke TV16 T connector tin-plated Not insulated Multicolour 1 pc(s)
Product type
T connector
Insulation type
Not insulated
Contact material
Copper silver plated
Content
1 pc(s)
Factory colour
Multicolour
EAN:
Part number:
Item no:
Technical specifications
- Connection type T-connector
- Sleeve shape: Long
- UL version
- Insulation: Without
- Voltage range: Up to 10 kV
- Number of branches: 3
- For secure connections: No.
- Oil stop/center bridge: No.
- Suitable for solid conductor: No.
- Suitable for multi-wire conductors: Yes
- Suitable for fine-wired conductor: No.
- Suitable for high temperatures (up to 650 °C): No.
- Suitable for paint wire: No.
- Suitable for round wire: Yes
- Suitable for flat conductor: No.
- Nominal cross-section: 16 mm²
- Surface protection: Tin-plated
- Product type
T connector
- Factory colour
Multicolour
- Insulation type
Not insulated
- Contact material
Copper silver plated
- Content
1 pc(s)
- Manufacturer part #
TV16
- Type
TV16
- Insulation material
Copper
- Features
tin-plated
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3429999 Klauke TV16 T connector tin-plated Not insulated Multicolour 1 pc(s)
Description
For multi-wire conductors such as VDE 0295 class 2. For pre-rounded multi-strand sector conductors. Special design for branching cables. Annealed for optimum material and crimp properties. Precisely machined ends for easy cable insertion. Galvanically tin-plated for protection against corrosion. Material Cu according to EN 13600.
