Name: Knipex 35 22 115 SB Electrical & precision engineering Needle nose pliers Straight 115 mm
Brand: Knipex
SKU: 852996
Availability: SoldOut

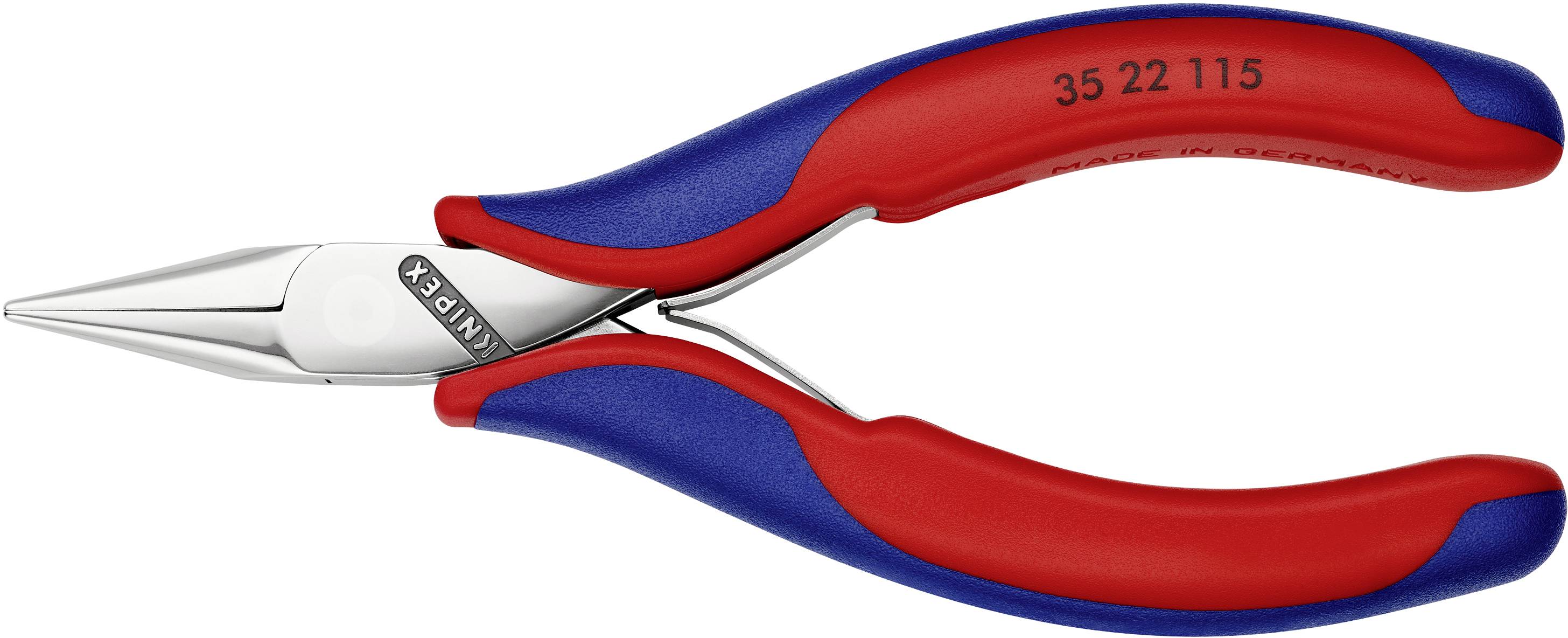

A combination pliers with red and blue handles, manufactured in Germany, with the inscription 'KNIPEX' and serial number.

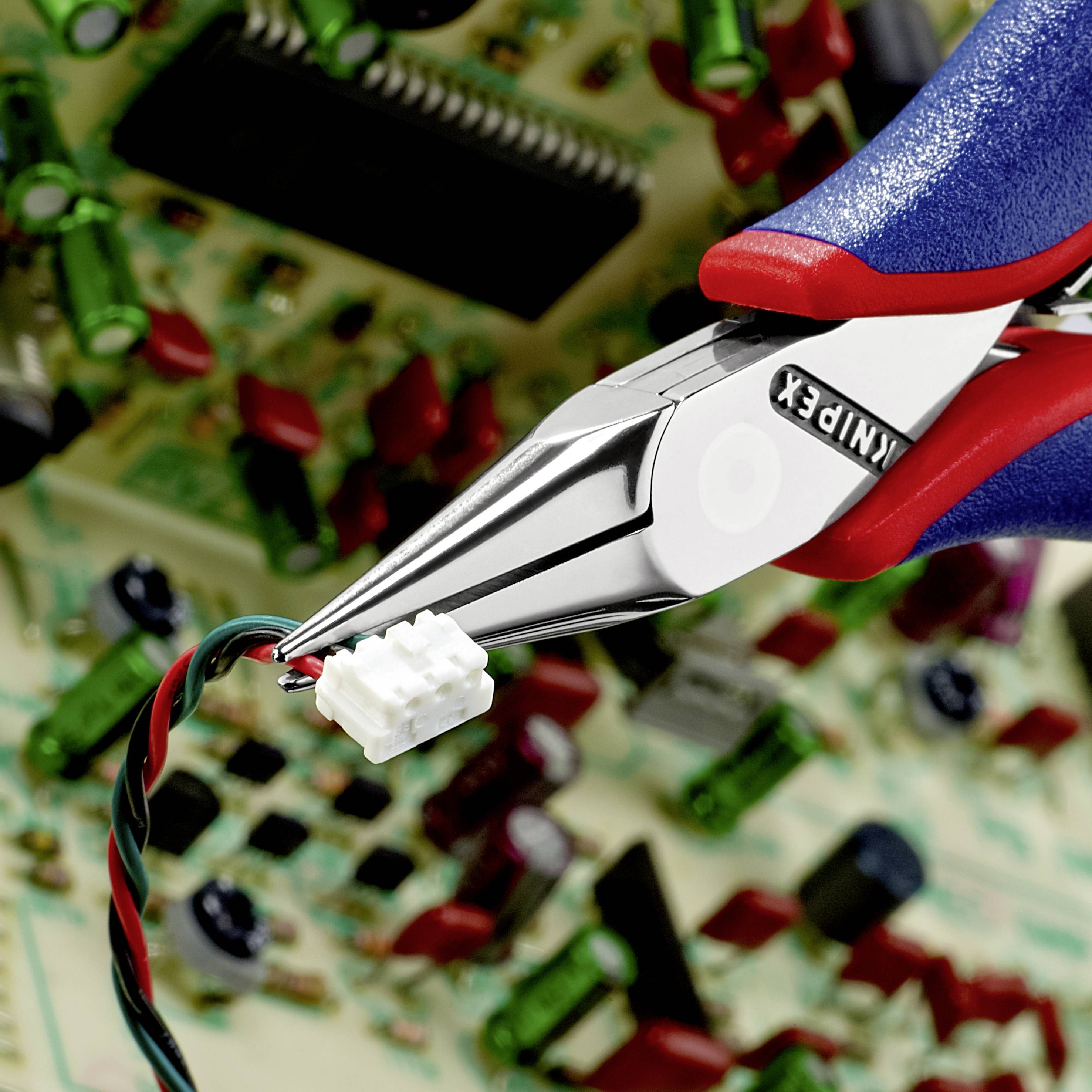

'Close-up of a pair of pliers with a red and blue handle holding a small white plug. Electronic circuit board blurred in the background. Primary focus on the plug connection process.'

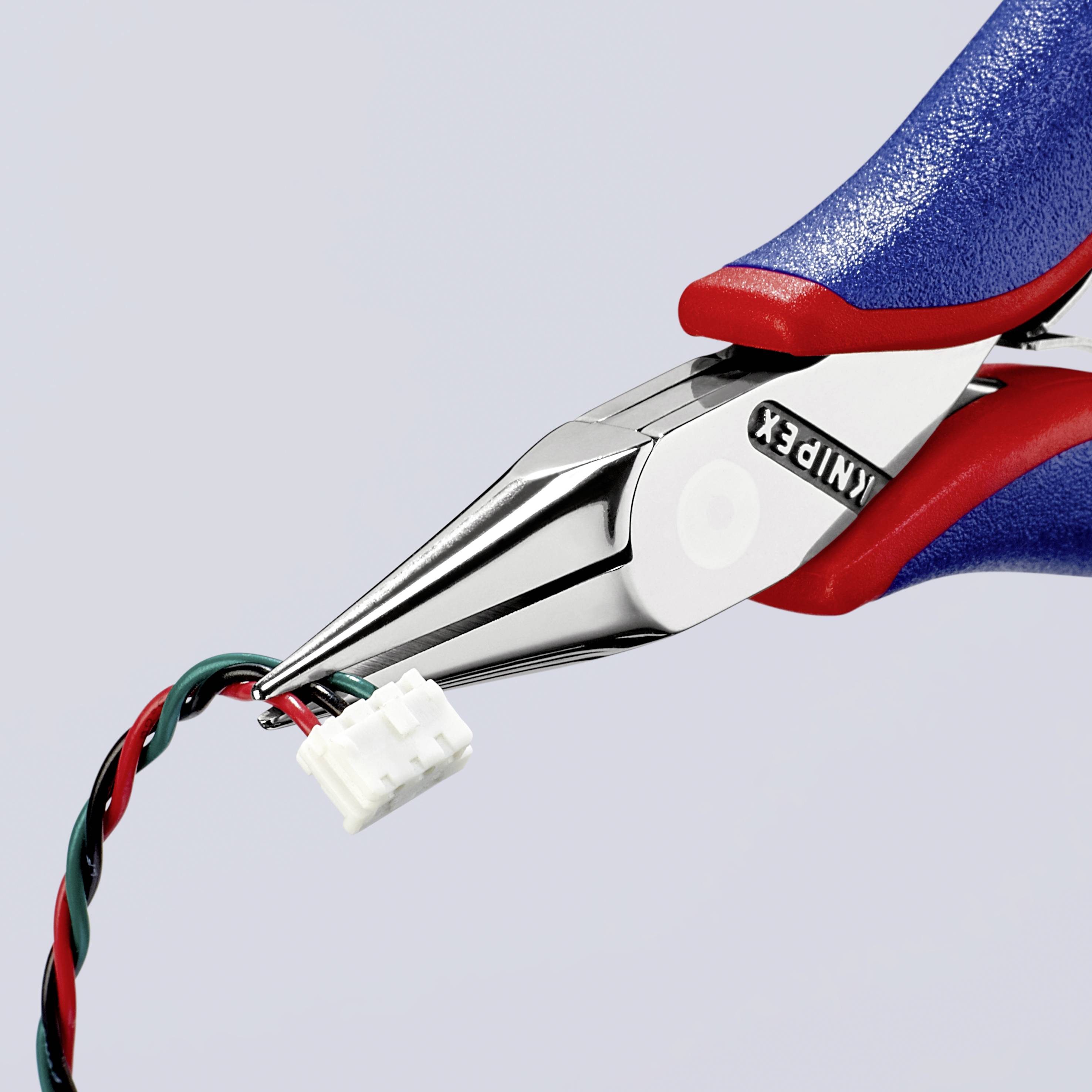

A red pair of pliers is holding a small, white electrical plug with two wires.

1/5

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 40.99 / piece)

€ 40.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Electronic gripping pliers 35 22

Precision pliers for fine assembly work, e g. in electronics and fine mechanics
For gripping, holding and bending
Sturdy, zero backlash box joint
Smooth ground gripping surfaces
Edges carefully deburred
Low-friction double spring for gentle and even opening
The polish or mirror polish (only finish 2) together with a fine film of oil offer effective rust protection - no circuit faults caused by peeling chrome from plated tools
Special tool steel, forged, oil-hardened

Technical specifications

Product type: Needle nose pliers

Manufacturer part #: 35 22 115 SB

Range of use: Electrical & precision engineering

Length: 115 mm

Jaw shape: Straight

Jaw length: 22.5 mm

Jaw size: 6.5 mm

Jaw tip width: 2 mm

Material: Tool steel

Material properties: polishing

DIN standard: DIN ISO 9655

Width: 85 mm

Dim: (L x W) 115 mm x 85 mm

Weight: 73 g

Type: 35 22 115

Standards: DIN ISO 9655

UKCA: not relevant

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 852996 Knipex 35 22 115 SB Electrical & precision engineering Needle nose pliers Straight 115 mm

Description

Precision pliers for very fine assembly work such as electronics and precision mechanics for grasping, holding and bending.

Features

Passed through precision joint
Smoothly polished gripping surfaces
Edges carefully deburrs
Friction arms double feather/spring for gentle and even opening
Polished mirror does not offer a good rust protection - no interference in the circuit by flaking chrome parts
Special steel tools, in oil hardened and started.

Description

Precision pliers for very fine assembly work such as electronics and precision mechanics for grasping, holding and bending.

Features

Passed through precision joint
Smoothly polished gripping surfaces
Edges carefully deburrs
Friction arms double feather/spring for gentle and even opening
Polished mirror does not offer a good rust protection - no interference in the circuit by flaking chrome parts
Special steel tools, in oil hardened and started.
