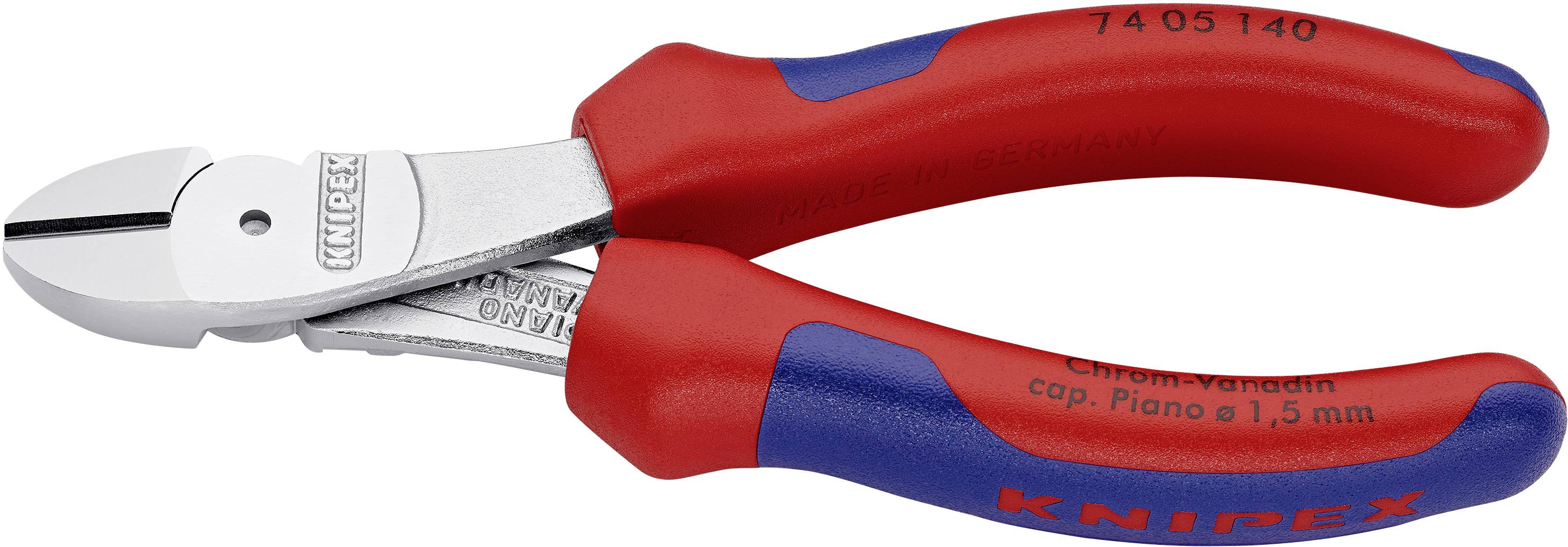

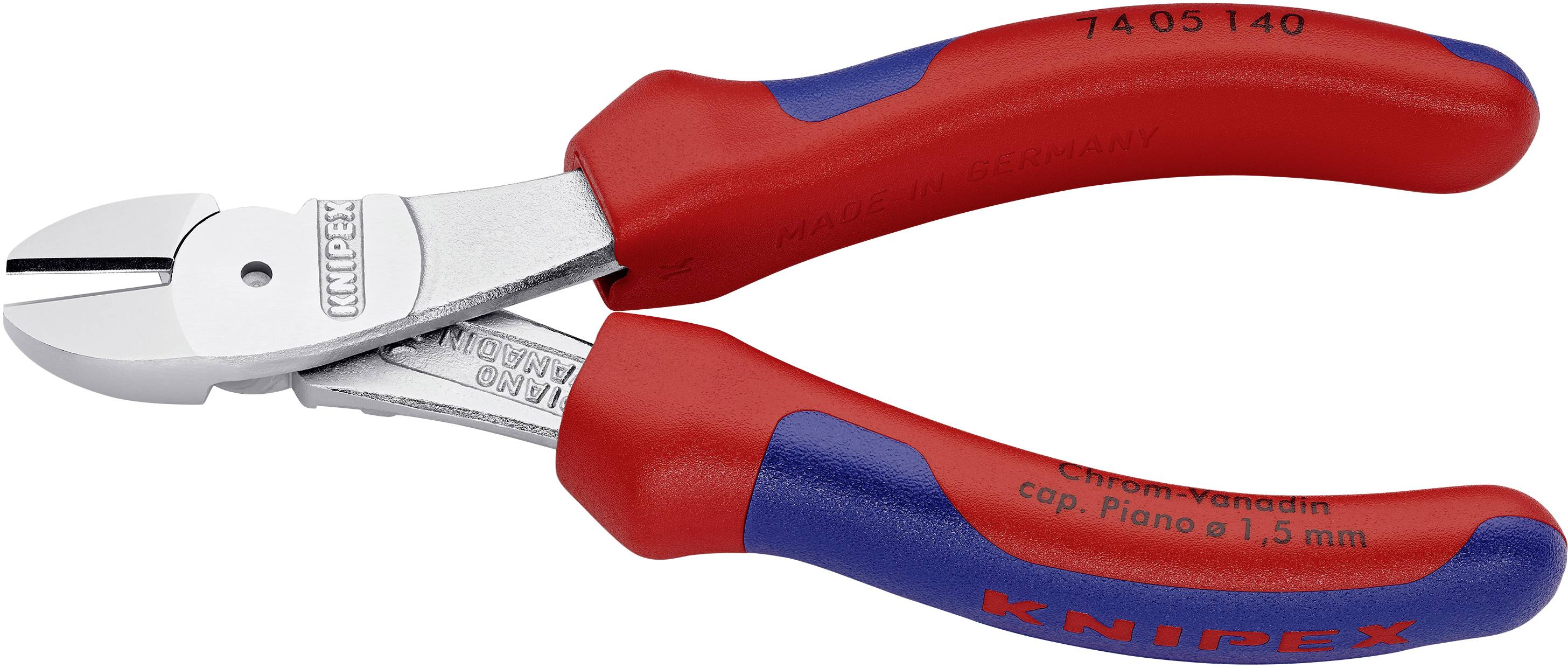

Knipex 74 05 140 Workshop Kraft side cutter non-flush type 140 mm
EAN:
Part number:
Item no:
Number
Total (€ 25.20 / piece)
€
Only 10 Piece(s) available
Highlights & Details
High leverage diagonal cutters
- For heavy-duty, continuous use
- High cutting power with low application of force through optimum matching of cutting angle and transmission ratio
- Precision cutting edges additionally induction hardened, cutting edge hardness approx. 64 HRC) for all sorts of wire, including piano wire
- Chrome-vanadium high speed steel, forged, oil-hardened multi-level
Technical specifications
- Manufacturer part #
74 05 140
- Range of use
Workshop
- Length
140 mm
- Material
Chromium-vanadium steel
- Material properties
tempered
chrome plated
- Edge hardness
64 HRC
- Wire hardness (max.) medium wire
3.1 mm
- Wire hardness (max.) hard wire
2.0 mm
- Wire hardness piano wire (max.)
1.5 mm
- DIN standard
DIN ISO 5749
- Width
54 mm
- Weight
157 g
- Features
non-flush type
- Type
Power side-cutter
- Type
74 05 140
- Standards
DIN ISO 5749
- Product type
Kraft side cutter
Variants(All information is without VAT, plus shipping costs)
Length
Range of use
Product type
Knipex 74 05 140 Workshop Kraft side cutter non-flush type 140 mm
This article
140 mm
Workshop
Kraft side cutter
Minimum order quantity: 1
Multiple: 1
€ 25.20*
Knipex 74 02 180 Workshop Kraft side cutter non-flush type 180 mm
180 mm
Workshop
Kraft side cutter
Minimum order quantity: 1
Multiple: 1
€ 22.68*
Knipex 74 06 180 VDE Kraft side cutter non-flush type 180 mm
180 mm
VDE
Kraft side cutter
Minimum order quantity: 1
Multiple: 1
€ 31.08*
Knipex 74 06 200 VDE Side cutter non-flush type 200 mm
200 mm
VDE
Side cutter
Minimum order quantity: 1
Multiple: 1
€ 32.76*
Knipex 74 02 160 74 02 160 Workshop Kraft side cutter non-flush type 160 mm
160 mm
Workshop
Kraft side cutter
Minimum order quantity: 1
Multiple: 1
€ 21.00*
Knipex 74 05 180 Workshop Kraft side cutter non-flush type 180 mm
180 mm
Workshop
Kraft side cutter
Minimum order quantity: 1
Multiple: 1
€ 27.72*
Knipex 74 01 140 Workshop Kraft side cutter non-flush type 140 mm
140 mm
Workshop
Kraft side cutter
Minimum order quantity: 1
Multiple: 1
€ 17.64*
Knipex 74 01 160 Workshop Kraft side cutter non-flush type 160 mm
160 mm
Workshop
Kraft side cutter
Minimum order quantity: 1
Multiple: 1
€ 17.64*
Knipex 74 01 180 Workshop Kraft side cutter non-flush type 180 mm
180 mm
Workshop
Kraft side cutter
Minimum order quantity: 1
Multiple: 1
€ 18.48*
Knipex 74 01 200 Workshop Kraft side cutter non-flush type 200 mm
200 mm
Workshop
Kraft side cutter
Minimum order quantity: 1
Multiple: 1
€ 21.00*
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 822280 Knipex 74 05 140 Workshop Kraft side cutter non-flush type 140 mm
Description
With forged joint axle for very tough, continuous use Ideal for all sorts of wire, including piano wire High cutting power with low application of force through optimum matching of cutting angle and transmission ratio Precision cutting edges additionally induction hardened, cutting edge hardness approx. 64 HRC Chrome-vanadium high speed steel, forged, oil-hardened multi-level
This text is machine translated.
This text is machine translated.
Features
- With forged joint axle for very tough, continuous use

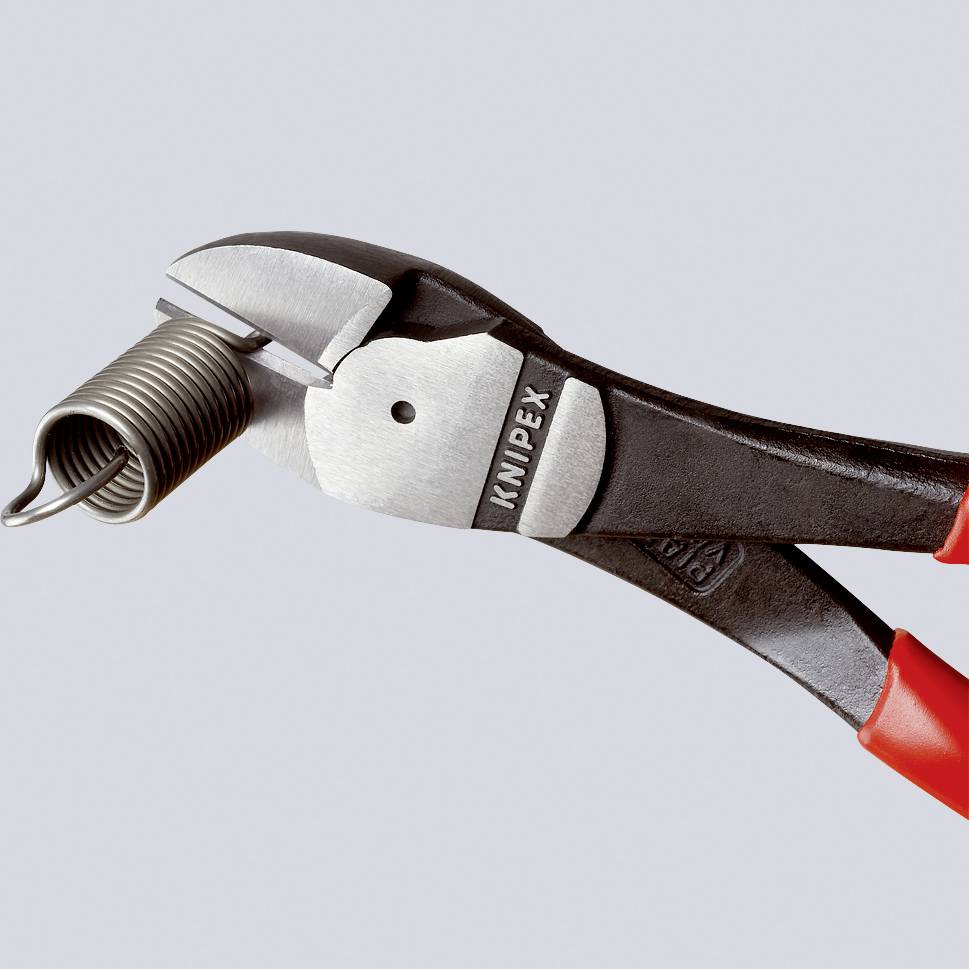

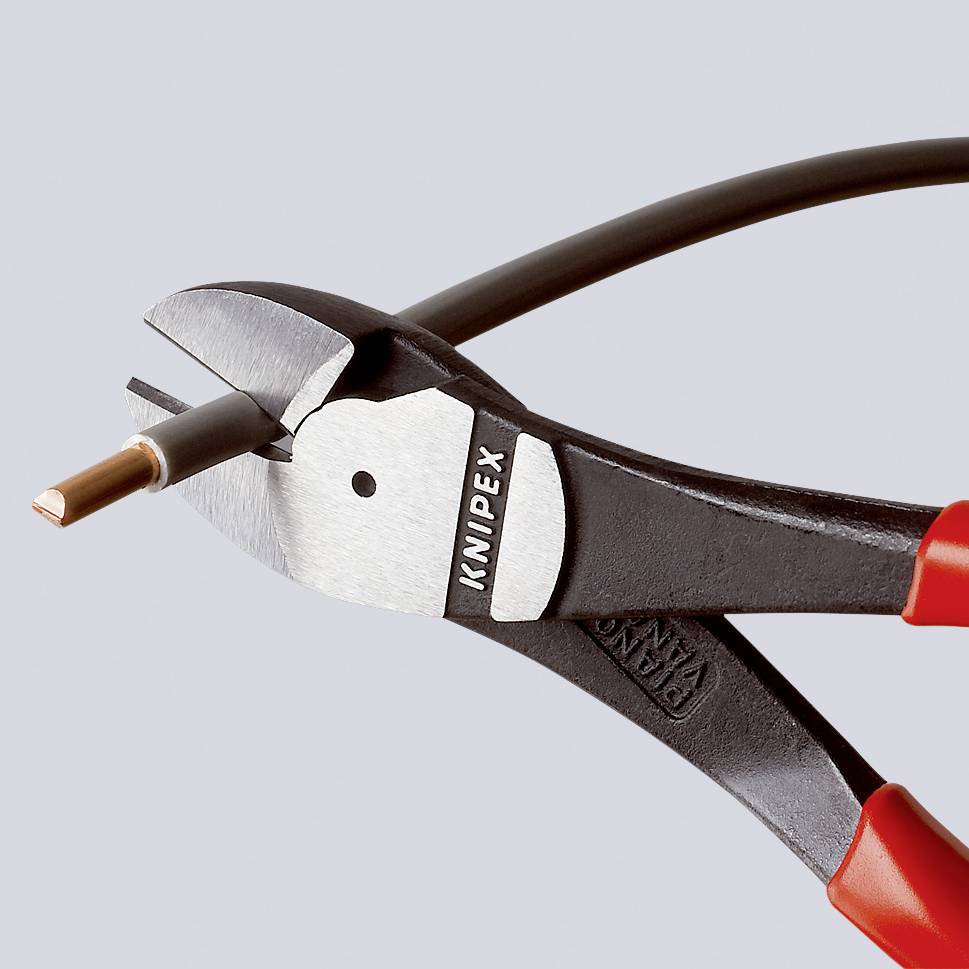

- Ideal for all sorts of wire, including piano wire
- High cutting performance with minimum effort thanks to optimum co-ordination of the cutting edge angle and transmission ratio
- Precision cutting edges additionally induction hardened, cutting edge hardness approx. 64 HRC
