Name: Knipex 97 91 04 V03 Crimping tool, Professionals, Pliers Tool box (+ tools) (W x H x D) 280 x 80 x 280 mm
Brand: Knipex
SKU: 3742623

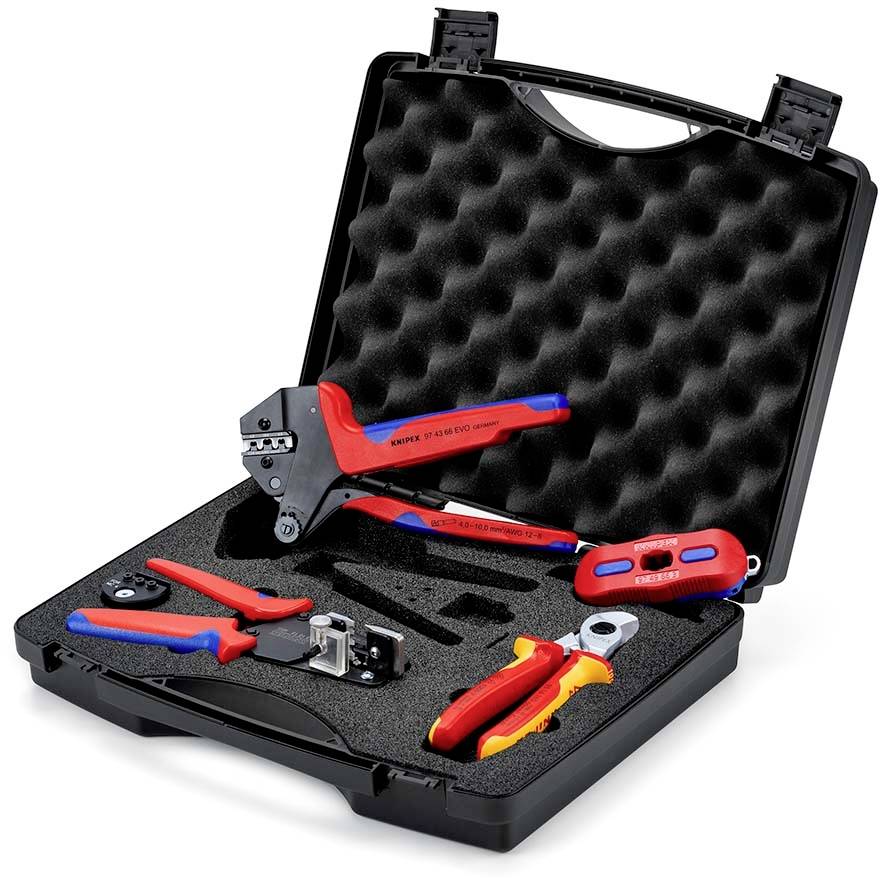

Open black carrying case with foam inserts holding red-and-blue crimping and wire-stripping tools.

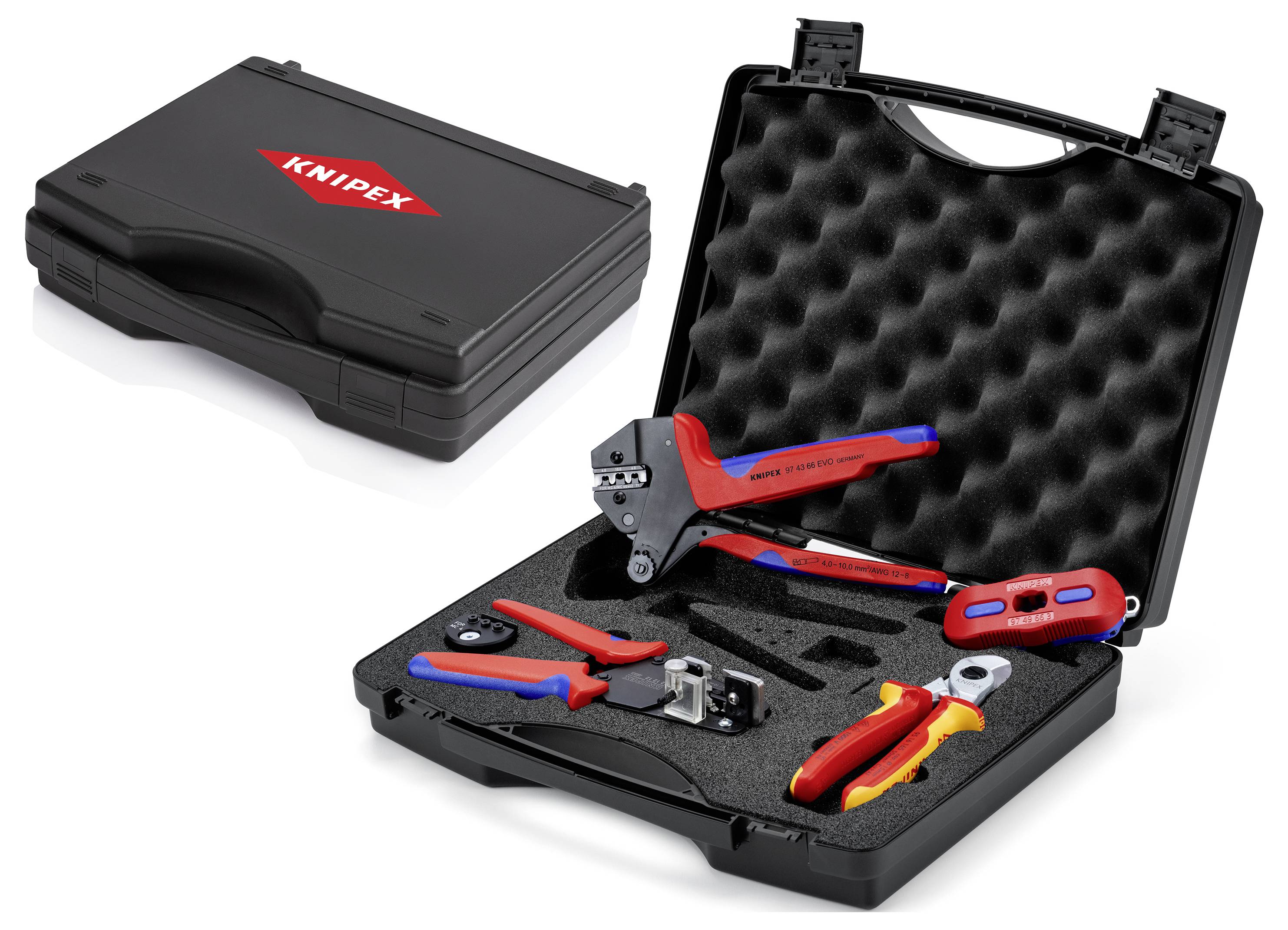

Open black KNIPEX carrying case with foam inserts holding several red and blue hand tools and accessories, shown beside the closed case.

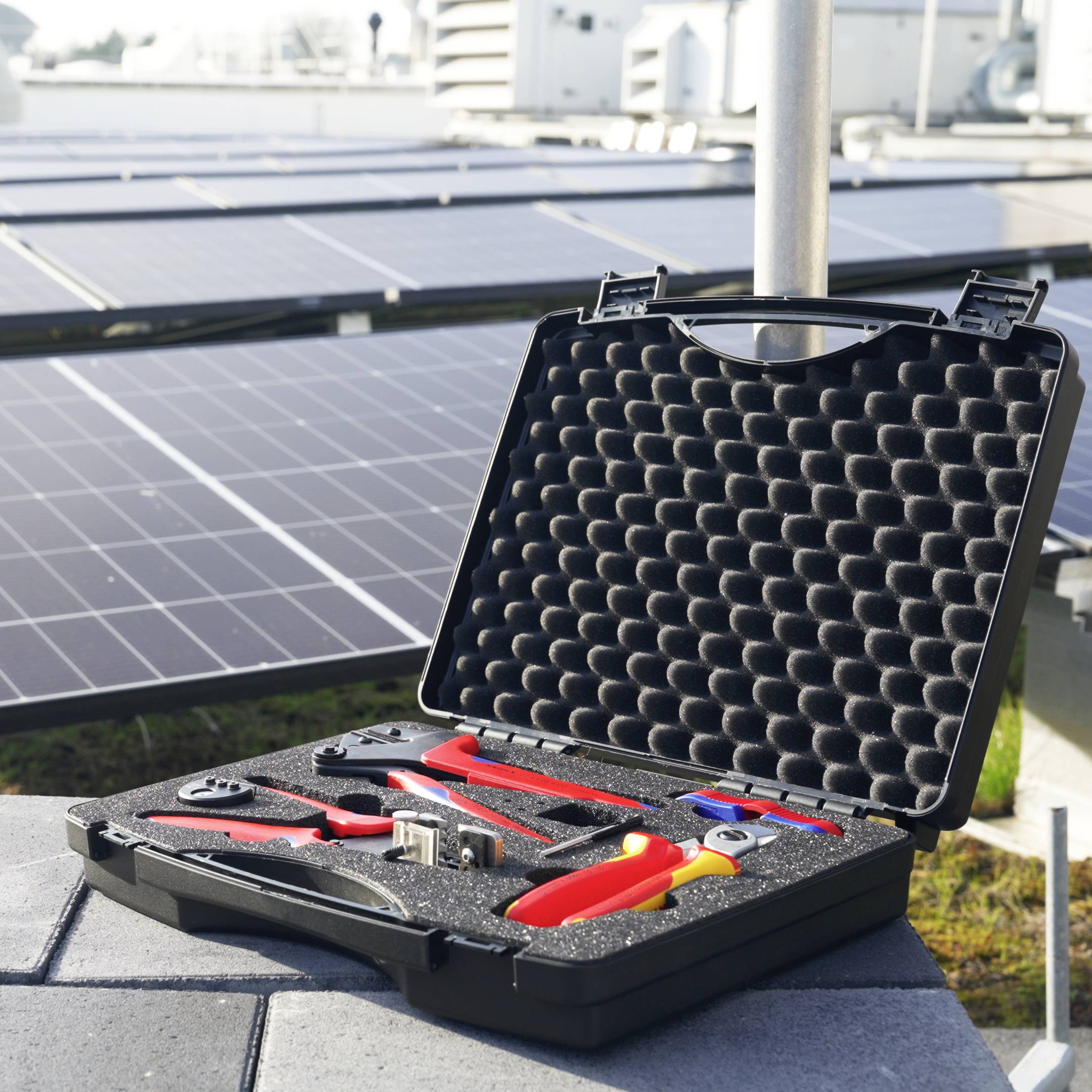

Open hard case with insulated hand tools and pliers in front of solar panels, suggesting maintenance work at a solar installation.

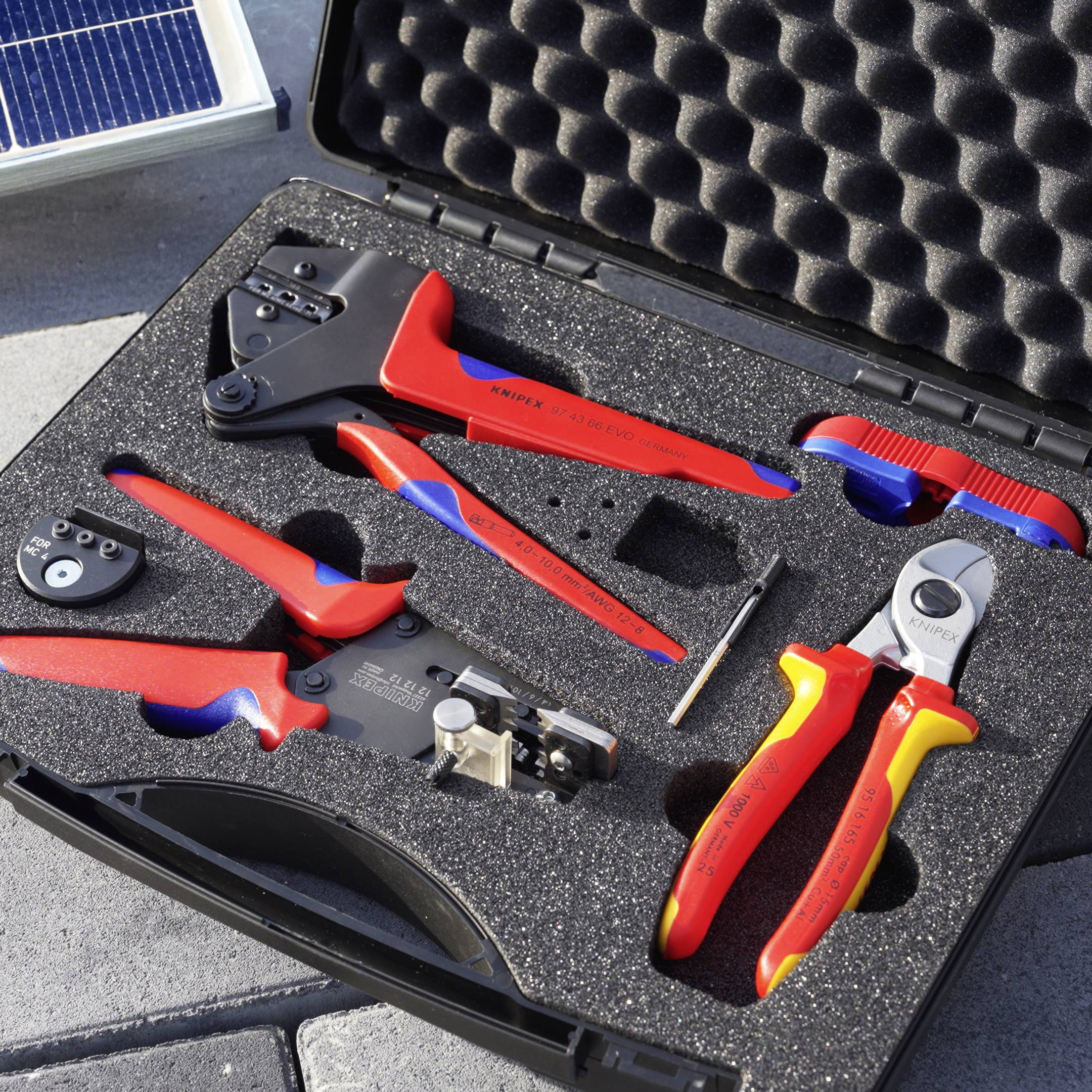

Open black foam case holding red-and-blue hand tools, including crimpers, cutters, and a wire stripper, laid out on a work surface.

1/4

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Tool case for photovoltaic

With Crimp-System pliers 97 43 66 EVO: Specially modified crimping pliers for plug connectors with up to 10 mm² - crimp pressure is adjusted ex-factory precisely (calibrated);contacting 97 49 71 1 for processing PV-connectors of the MC4®-series;With cable shears 95 16 165 for Cu-cables up to Ø 15 mm;With precision wire-stripping pliers 12 12 12 (4.0 / 6.0 / 10.0 mm²) with forming knives for larger stripping values;With mounting tool set 97 49 66 3 to tighten the housing screw connection and to unlock the plug connection of MC4® / MC4® Evo 2 PV connectors;Expandable with all crimp inserts and contact holders 97 49 XX for almost 1000 other crimp applications;Foam insert with troughs for the fitting fit of the tools, for 2 crimp inserts and 2 positioning help

Technical specifications

Dim: (W x H x D) 280 x 80 x 280 mm

Product type: Tool box (+ tools)

Car phone holder features: Foam padding
Insulated

Range of uses: Crimping tool
Professionals
Pliers

Material: Acrylonitrile butadiene styrene

Factory colour: Black

Height: 80 mm

Width: 280 mm

Depth: 280 mm

Weight: 2.200 g

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 3742623 Knipex 97 91 04 V03 Crimping tool, Professionals, Pliers Tool box (+ tools) (W x H x D) 280 x 80 x 280 mm

User & Safety Instructions

User & Safety Instructions 3742623 Knipex 97 91 04 V03 Crimping tool, Professionals, Pliers Tool box (+ tools) (W x H x D) 280 x 80 x 280 mm

Description

97 91 04 V03 Photovoltaic tool case Perfect for the photovoltaic industry: Impact-resistant plastic case with high-quality tools for processing MC4® and MC4® Evo 2 PV connectors. Professional cutting, stripping, crimping and assembling. With Crimp-System pliers 97 43 66 EVO: Specially modified crimping pliers for plug connectors with up to 10 mm² - crimp pressure has been set precisely at the factory (calibrated). Contact 97 49 71 1 to process MC4® series PV connectors. With cable shears 95 16 165 for copper cable up to Ø 15 mm. With precision wire stripper 12 12 12 (4.0 / 6.0 / 10.0 mm²) with brass instruments for larger stripping values. With mounting tool kit 97 49 66 3 to tighten the housing screw connection and to unlock the plug connection of MC4® / MC4® Evo 2 PV connectors. Can be extended with all crimp inserts and contact boxes 97 49 XX for almost 1000 more crimp applications. Foam insert with troughs for the form-fitting entry of the tool, for 2 crimp inserts and 2 positioning helps. Impact-resistant plastic case. MC4® is a registered trademark of Stäubli electrical connectors AG Scope of delivery: 1 x 12 12 12 Knipex precision wire stripping pliers with form gauges 4/6/10 mm² (4.0 – 10.0 mm²), 1 x 97 49 71 1 Knipex contacting for 97 49 71 (solar connector MC4®), 1 x 95 16 165 Knipex cable shears (Ø 15 mm / 50 mm²), 1 x 97 43 66 EVO Knipex Crimp-System pliers for exchangeable crimp inserts (4.0 - 10.0 mm²), 1 x 97 49 66 3 Knipex mounting tool set for solar-connector MC4® & MC4® Evo 2,

This text is machine translated.
