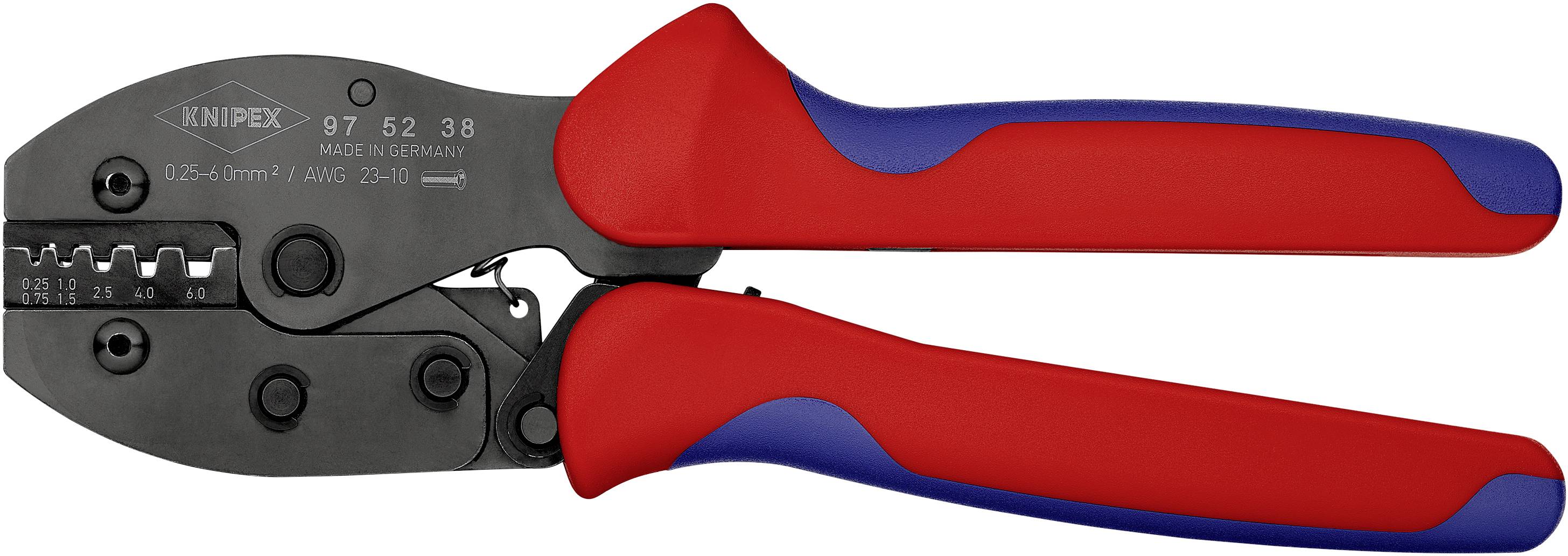

Knipex PRECIFORCE 97 52 38 Crimper Ferrules 0.25 up to 6 mm²
EAN:
Part number:
Item no:
Number
Total (€ 88.23 / piece)
€
Only 10 Piece(s) available
Highlights & Details
Crimp pliers
- Consistent high crimping quality through precision inserts and lock (can be unlocked)
- Crimping pressure is factory-precisely adjusted (calibrated), operating positions
- Power strengthening through lever transmission for fatigue-free working
- Good handling through favorable grip position, low weight, short design and ergonomically-shaped grips
- Chromium-vanadium electro-steel in special quality, oil-hardened
Technical specifications
- 5
- Manufacturer part #
97 52 38
- Range of uses
Ferrules
- Crimp area
0.25 up to 6 mm²
- Crimp area AWG
10 up to 23 awg
- Crimp area (min.)
0.25 mm²
- Crimp area (max.)
6 mm²
- Crimp area AWG (min.)
23 awg
- Crimp area AWG (max.)
10 awg
- Length
220 mm
- Material
Chromium-vanadium electric furnace steel
- Material properties
burnished
tempered
- Width
75 mm
- Height
30 mm
- Weight
493 g
- Range of uses
Type 97 52 38 cable end sleeve
- Type
97 52 38
- Product type
Crimper
Variants(All information is without VAT, plus shipping costs)
Range of uses
Crimp area (max.)
Crimp area (min.)
Knipex PRECIFORCE 97 52 38 Crimper Ferrules 0.25 up to 6 mm²
This article
Ferrules
6 mm²
0.25 mm²
Minimum order quantity: 1
Multiple: 1
€ 88.23*
Knipex PreciForce 97 52 33 Crimper Non-insulated spade terminals, Non-insulated crimp cable lugs, Non-insulated crimp contacts, Non-insulated crimp connectors, Non-insulated butt connectors 0.5 up to 10 mm²
Non-insulated spade terminals
10 mm²
0.5 mm²
Minimum order quantity: 1
Multiple: 1
€ 88.23*
Knipex PreciForce 97 52 37 Crimper Heatshrink terminals 0.5 up to 6 mm²
Heatshrink terminals
6 mm²
0.5 mm²
Minimum order quantity: 1
Multiple: 1
€ 80.66*
Knipex PRECIFORCE 97 52 34 Crimper Non-insulated open end connectors 0.1 up to 2.5 mm²
Non-insulated open end connectors
2.5 mm²
0.1 mm²
Minimum order quantity: 1
Multiple: 1
€ 100.83*
Knipex PRECIFORCE 97 52 30 Crimper Non-insulated crimp connectors 1.5 up to 10 mm²
Non-insulated crimp connectors
10 mm²
1.5 mm²
Minimum order quantity: 1
Multiple: 1
€ 88.23*
Knipex PreciForce 97 52 35 Crimper Non-insulated open end connectors 0.5 up to 6 mm²
Non-insulated open end connectors
6 mm²
0.5 mm²
Minimum order quantity: 1
Multiple: 1
€ 100.83*
Knipex PreciForce 97 52 50 Crimper BNC, TNC coax connectors RG58, RG174, RG188, RG316
BNC, TNC coax connectors
Minimum order quantity: 1
Multiple: 1
€ 117.64*
Knipex PreciForce 97 52 36 SB Crimper Insulated cable lugs, Insulated connectors, Insulated butt connectors 0.5 up to 6 mm²
Insulated cable lugs
6 mm²
0.5 mm²
Minimum order quantity: 1
Multiple: 1
€ 78.98*
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 821053 Knipex PRECIFORCE 97 52 38 Crimper Ferrules 0.25 up to 6 mm²
Description
For solder-free electrical connections Consistent high crimping quality through precision inserts and lock (can be unlocked) Cirmping pressure is precisely set (calibrated) at the factory High Power strengthening through lever transmission for fatigue-free working. Good handling through favorable grip position, low weight, short design and ergonomically shaped grips. Chromium-vanadium electro-steel in special quality, oil-hardened
This text is machine translated.
This text is machine translated.
Features
- WWith precise profiles and locking catch, for making standard electrical connections without solder and with constant high crimp quality
- Cimping pressure is set precisely (calibrated) at the factory
- The high rate of leverage provided by the lever lets you work effortlessly
- The well-positioned handles, low weight, short design and ergonomically shaped handle grips make the pliers a pleasure to handle. All mechanical parts are made from special steel, oil hardened and tempered.
