Kolink Observatory Z Mesh ARGB Midi tower Casing, Game console casing Black
EAN:
Part number:
Item no:
Highlights & Details

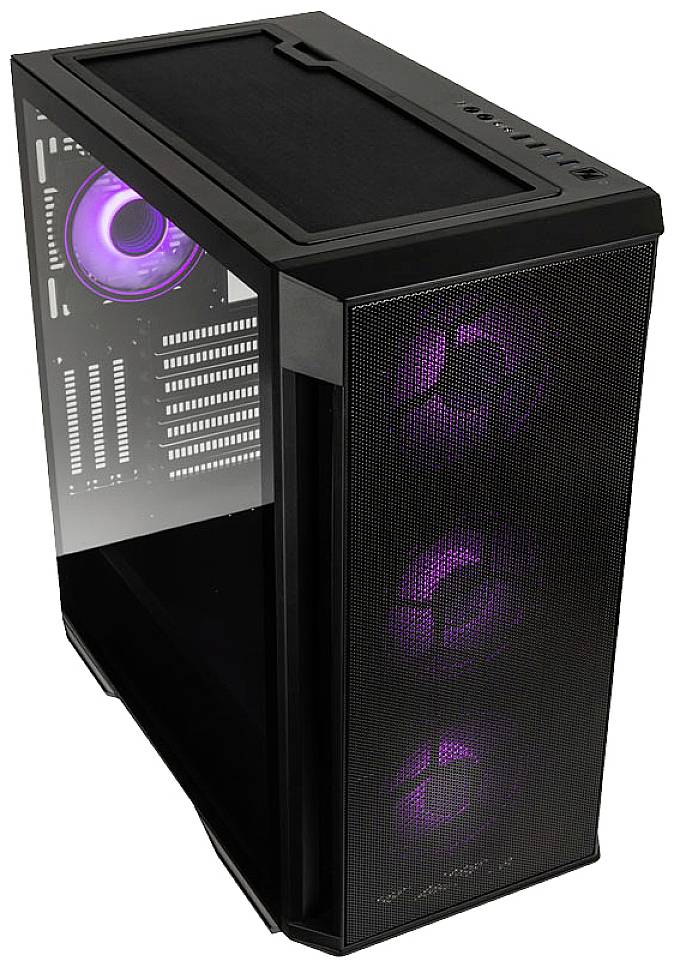

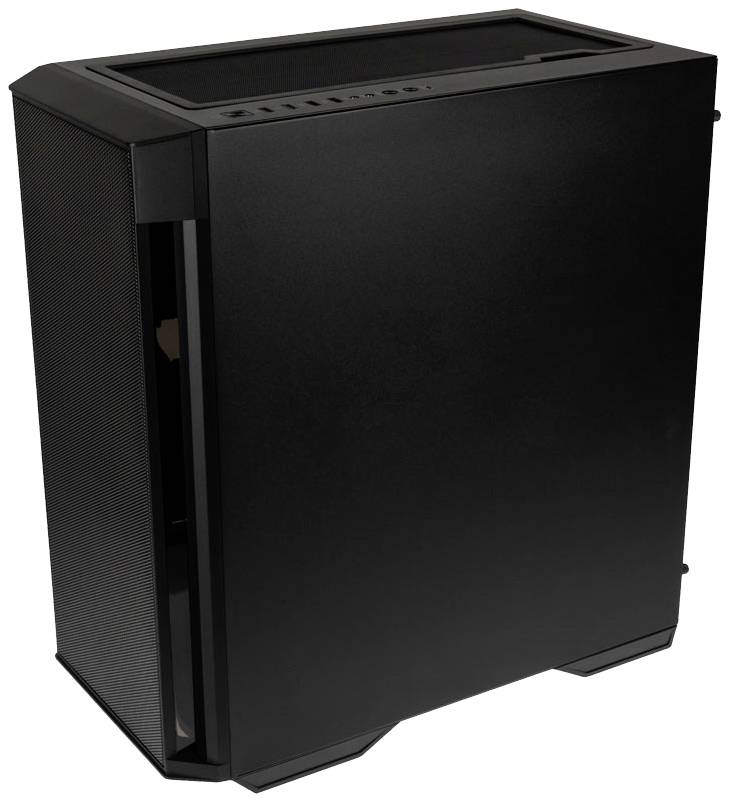

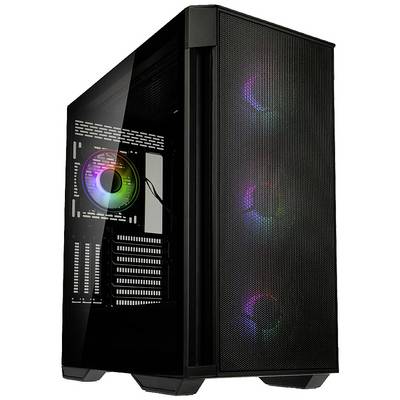

Kolink Observatory Z Mesh ARGB Midi tower Casing, Game console casing
- Compatible up to E-ATX mainboardIncluding 4x 120 mm Umbra Void fanUp to 380 mm long graphics cardCPU cooler up to 180 mm7+3 expansion slots
Technical specifications
- Dimensions 245 mm x 495 mm x 465 mm (W x H x D)Weight: approx 9.7 kgMaterial: Steel, glass, ABS plasticColour, blackForm factor: E-ATX, ATX, Micro-ATX, Mini-ITXTotal fan possible:- 3x 120 mm / 140 mm or 2x 200 mm (front)- 3x 120 or 2x 140 mm (lid)- 1x 120 mm / 140 mm (rear sideOf which pre-installed:- 3 x 120 mm Umbra ARGB/PWM fan (front)- 1x 120 mm Umbra ARGB/PWM fan (rear)Radiator mounts (partial elimination of HDD and/or fan slots):- 1x max. 420 mm (front side)- 1x max. 120 mm (rear side)- 1x max. 360 mm (lid)Dust filter: Cover (removable)Drive bays:- 3x 3.5 inch or 3x 2.5 inch (HDD cage)- 2x 2.5 inch (back board tray)Power supply: 1x standard ATX up to 200 mm length (optional)PCI slots 7I/O panel:- 2 x USB 3.0, 2 x USB 2.0- Per 1x audio in/outMaximum graphics card length 380 mmMaximum CPU cooler height 160 mm
- Product type
Casing
- Case type
Midi tower
- Factory colour
Black
- Interfaces (front)
USB A (USB 3.2 1st gen)
USB A (USB 2.0)
Headphone jack (3.5 mm)
Microphone (3.5 mm jack)
- 6.4 cm (2.5") internal slots
5
- 8.9 cm (3.5") internal slots
3
- Width
245 mm
- Height
495 mm
- Depth
465 mm
- Weight
9700 g
- Form factor
E-ATX
ATX
Micro-ATX
Mini-ITX
- No. of USB type A 3.0 ports
2 x
- No. of USB 2.0 ports
2 x
- Wireless charging
No
- Dim
(W x H x D) 245 x 495 x 465 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2575628 Kolink Observatory Z Mesh ARGB Midi tower Casing, Game console casing Black
Description
MIDI-Tower compatible up to E-ATX mainboard
This text is machine translated.
This text is machine translated.
Features
- MIDI tower with integrated Umbra Void 120 mm ARGB PWM fansMesh front with innovative side ventilationCompletely black interior, compatible with most current componentsSupports vertical graphics card installation and an L-bracket for extra-long GPUsSupports additional fans, including 2x fans in 200 mm format in the front panelGenerous space for radiators of up to 420 mm at the frontIncluding Umbra ARGB controller
Scope of delivery
- 1x Kolink Observatory Z Mesh ARGB MIDI-Tower 4x 120 mm fan (pre-installed)
- 1x fan hub (pre-installed, 3-pin ARGB)
- 1x SSD bracket
- 1x screw box
