Name: KS Tools 330.4109 330.4109 HSS TiN Twist drill bit 10.9 mm TiN DIN 338 5 pc(s)
Brand: KS Tools
SKU: 3206339

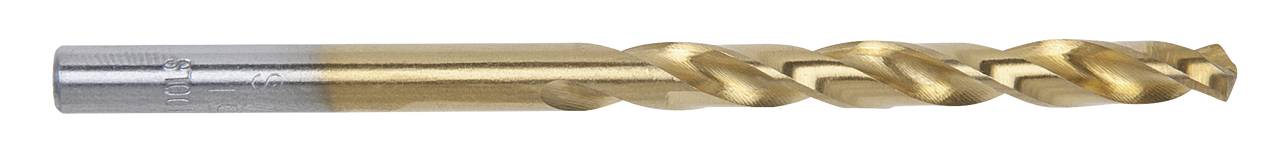

A metal drill bit with a silver shaft and a gold, spiral-tipped point, used for drilling into metal.

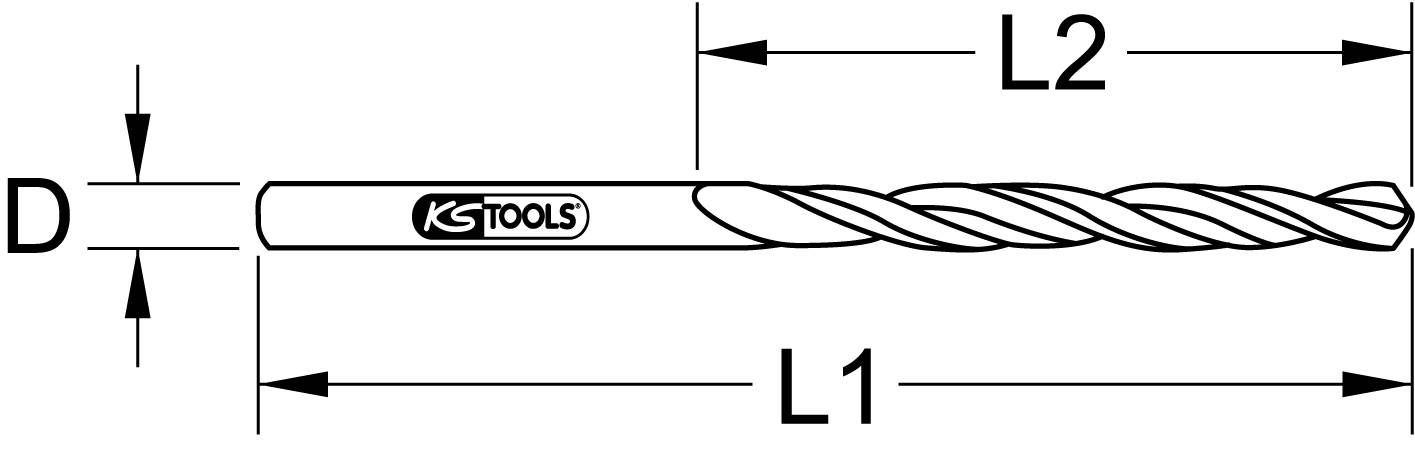

The figure shows a drill bit with lengths L1 and L2 and diameter D, marked with 'KS TOOLS' on the shank.

1/2

Product type

Twist drill bit

Drill hole Ø

10.9 mm

Content

5 pc(s)

Material

HSS TiN

Material suitability

Metal

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Product type: Twist drill bit

DIN standard: DIN 338

Type: N

Drill hole Ø: 10.9 mm

Tip angle: 130°

Content: 5 pc(s)

Material: HSS TiN

Material properties: TiN

Material suitability: Metal

Tensile strength (max.): 900 N/mm²

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3206339 KS Tools 330.4109 330.4109 HSS TiN Twist drill bit 10.9 mm TiN DIN 338 5 pc(s)

Description

DIN 338 type N
• right-handed cutting
• Cone-shaped section as tip grinding
• Cross-polished section as a tip
• 130° tip angle
• 20 - 30° Spiral angle
• High resistance to heat hardening
• For the most demanding jobs
• With TiN coated surface
• High-performance steel

Ideal can be used in steel, cast steel alloyed and unalloyed up to 900 N/mm² Strength, bronze, brass, short-chipping aluminum alloys, graphite, Nickel silver, sintered iron, gray, temperature, spear, and die cast

This text is machine translated.
