Name: KS Tools 330.6102 330.6102 HSS-G-Co 5 Twist drill bit 10.2 mm DIN 1897, DIN 1412 C 10 pc(s)
Brand: KS Tools
SKU: 3206350

A metal milling cutter with two cutting edges and a cylindrical shank, suitable for precision machining in metalworking.

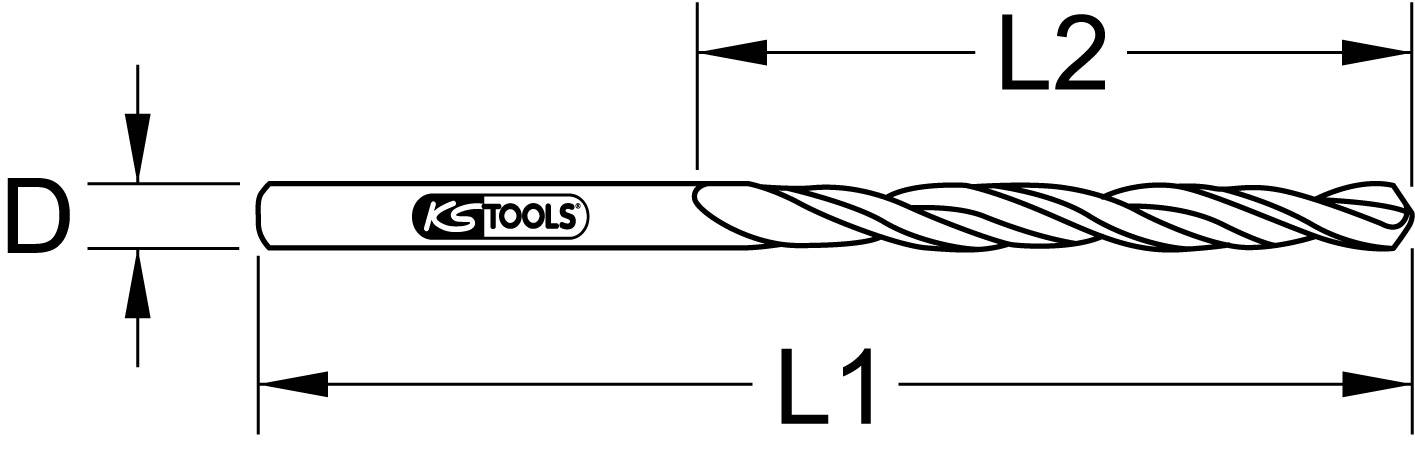

'Technical drawing of a twist drill: Length (L1) and working length (L2) are marked. Diameter (D) is highlighted.'

1/2

Product type

Twist drill bit

Drill hole Ø

10.2 mm

Content

10 pc(s)

Material

HSS-G-Co 5

Material suitability

Metal

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Product type: Twist drill bit

DIN standard: DIN 1897
DIN 1412 C

Type: N

Drill hole Ø: 10.2 mm

Tip angle: 135°

Content: 10 pc(s)

Material: HSS-G-Co 5

Material suitability: Metal

Tensile strength (max.): 1100 N/mm²

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3206350 KS Tools 330.6102 330.6102 HSS-G-Co 5 Twist drill bit 10.2 mm DIN 1897, DIN 1412 C 10 pc(s)

Description

• DIN 1897 Type N
• right-handed cutting
• Cone-shaped section as tip grinding
• From 3 mm cross-ground in accordance with DIN 1412 C.
• 135° tip angle
• 20 - 30° Spiral angle
• Gold-brown surface
• High-performance steel

Ideal can be used in steel, cast steel, up to approx. 1100 N/mm² strength, rust and acid-resistant steel, V2A, V4A, gray and tempered cast iron.
