KS Tools 550.7580 Video borescope Probe diameter: 3.9 mm Probe length: 1 m

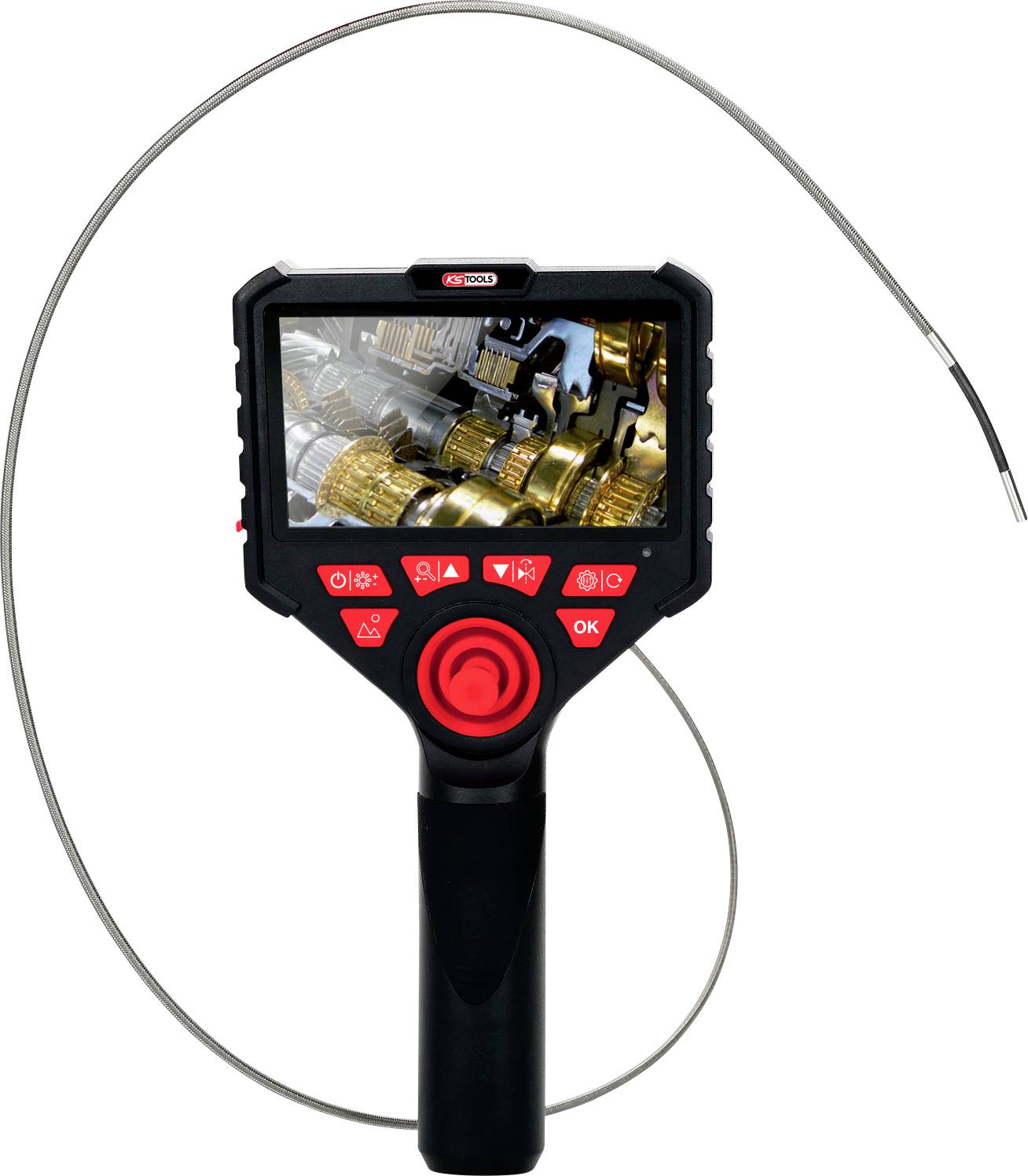

A handheld inspection camera displays an image of internal gears on its screen, with buttons and controls below. A flexible cable extends from the device.

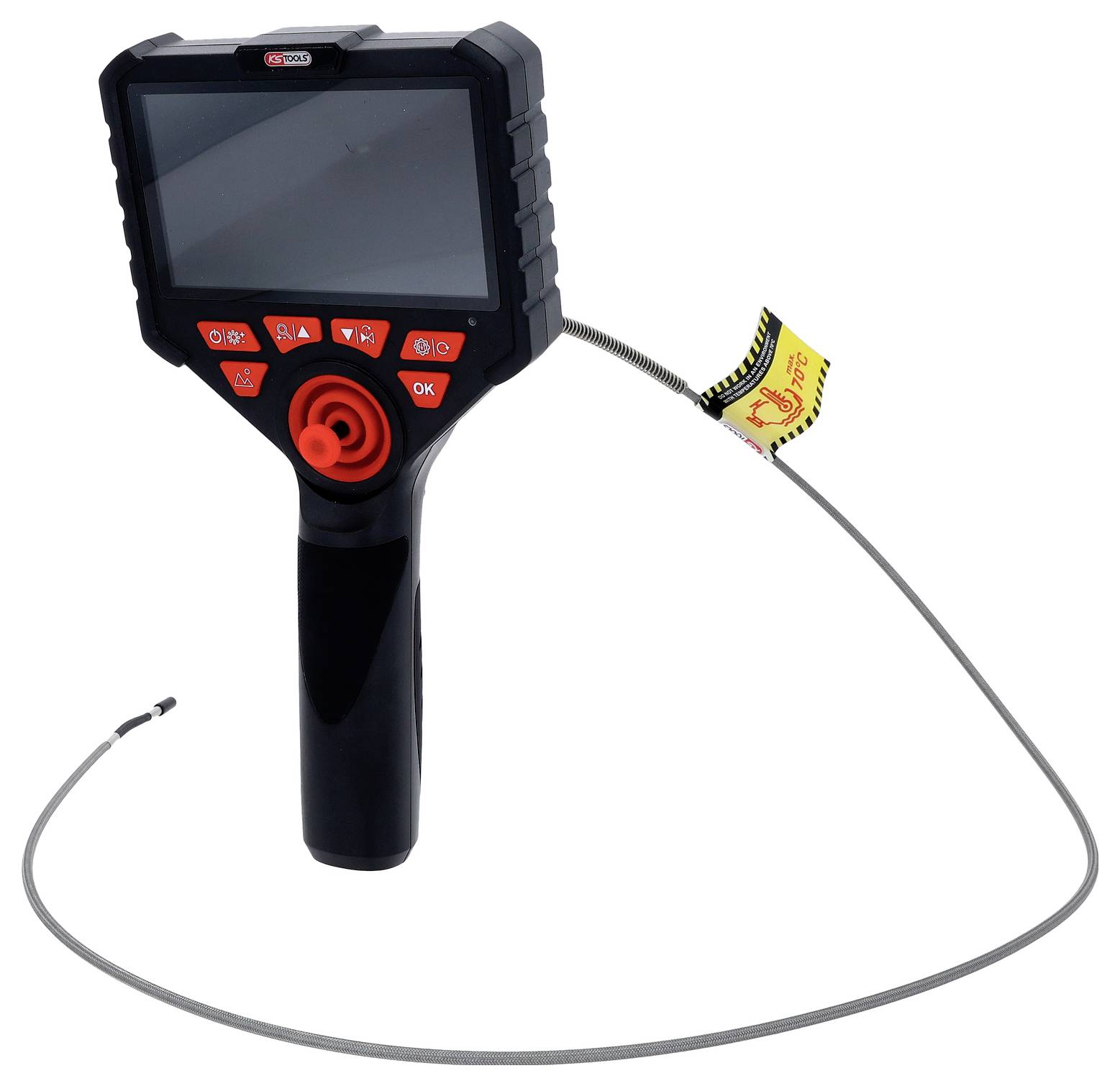

Handheld inspection camera with a display and control buttons, attached to a flexible cable for exploring hard-to-reach areas.

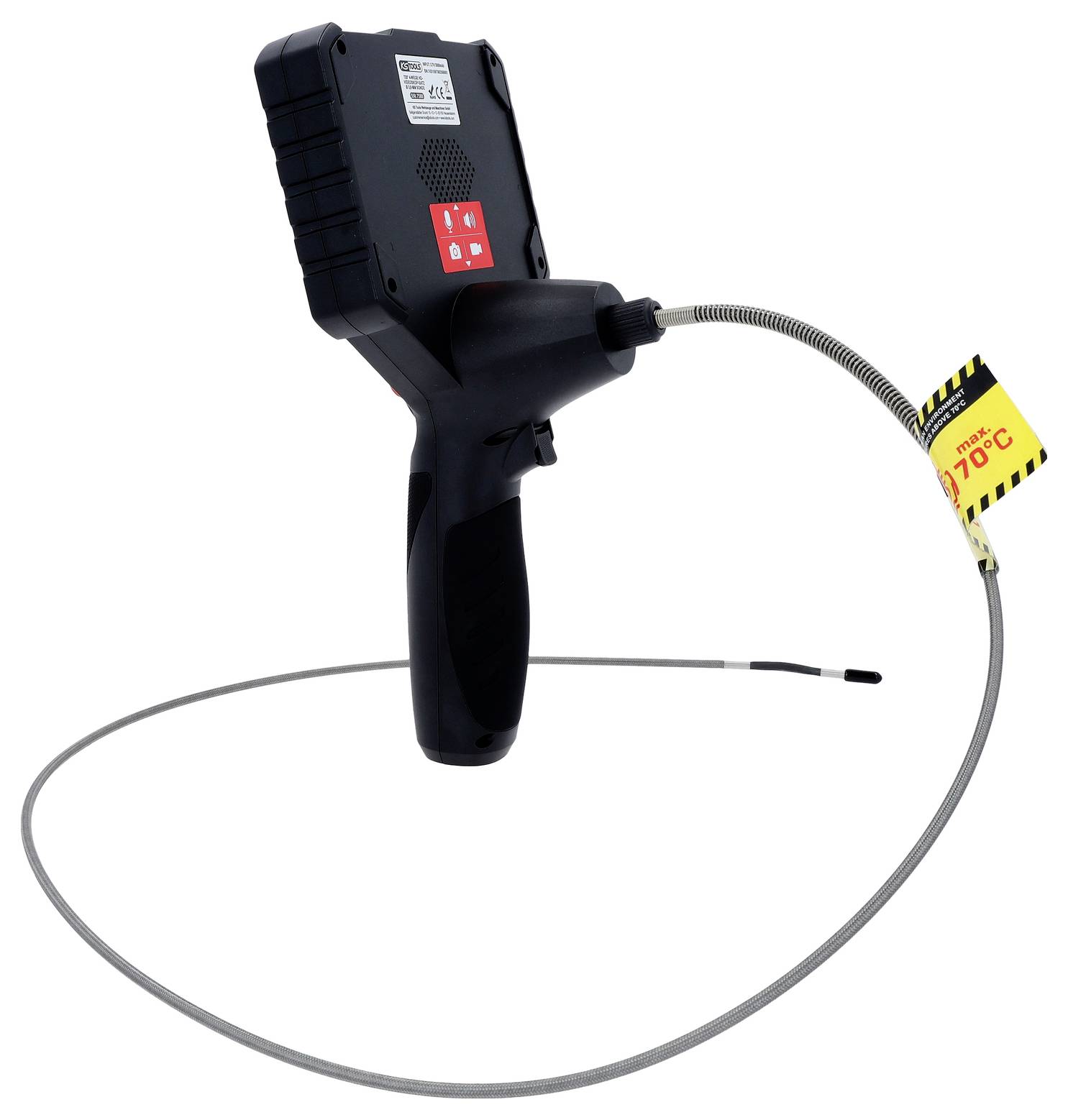

A handheld borescope with a camera at the end of a flexible tube used for inspecting hard-to-reach areas, displaying a caution label.
'KS Tools' branded packaging for a video inspection camera featuring 3.9 mm probe, 720° articulation, and image of hand holding device.
Box packaging for KS Tools endoscope, featuring a compact design with the tool and accessories inside. Bright, colorful design on the side.

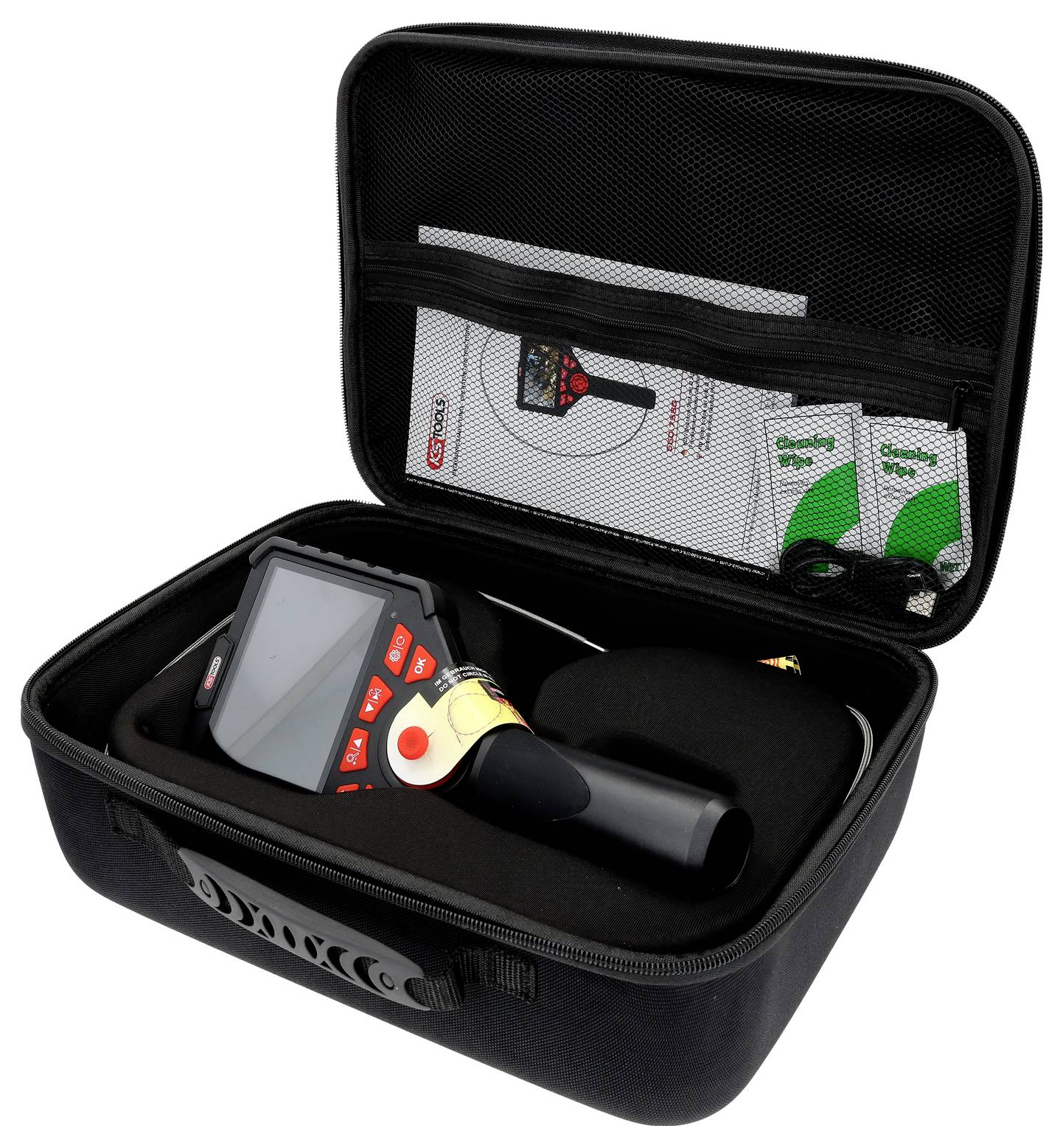

A portable thermal camera kit in a black carrying case, including the camera with a screen, instruction manuals, and accessories.

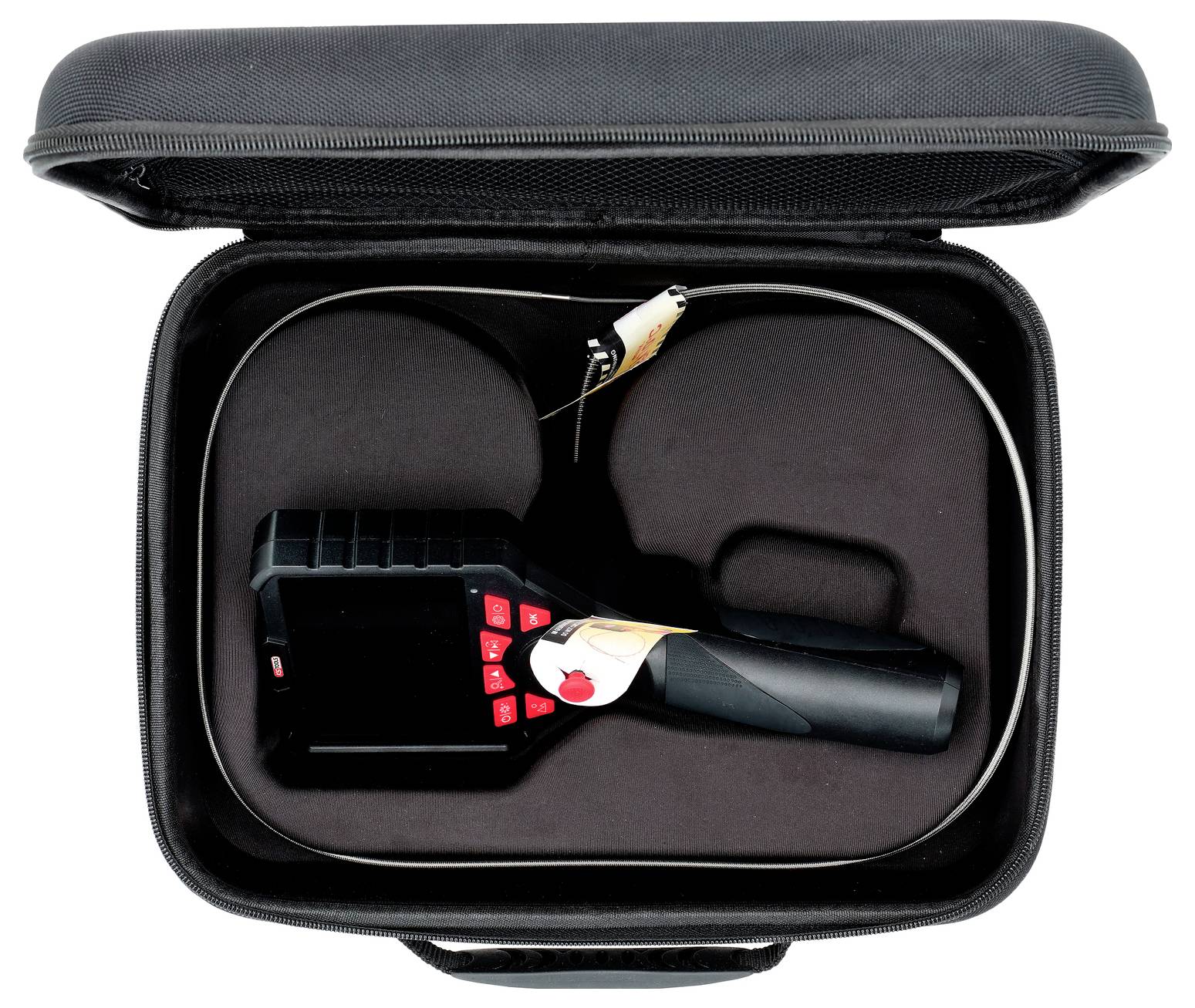

A black portable carrying case containing a handheld inspection camera with a flexible cable, red buttons, and a display screen.

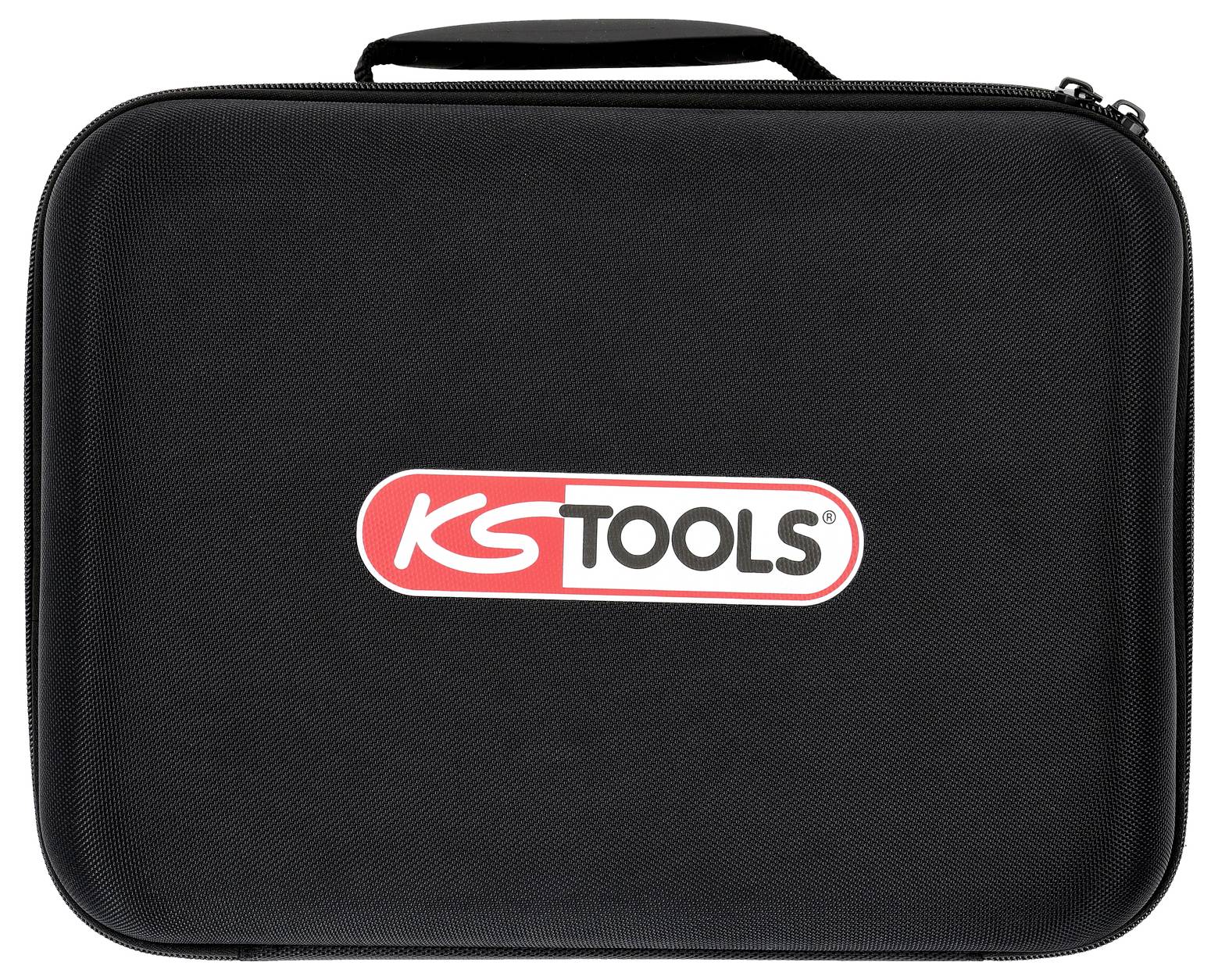

Black case with 'KS Tools' logo in white and red on front, featuring a handle on top.

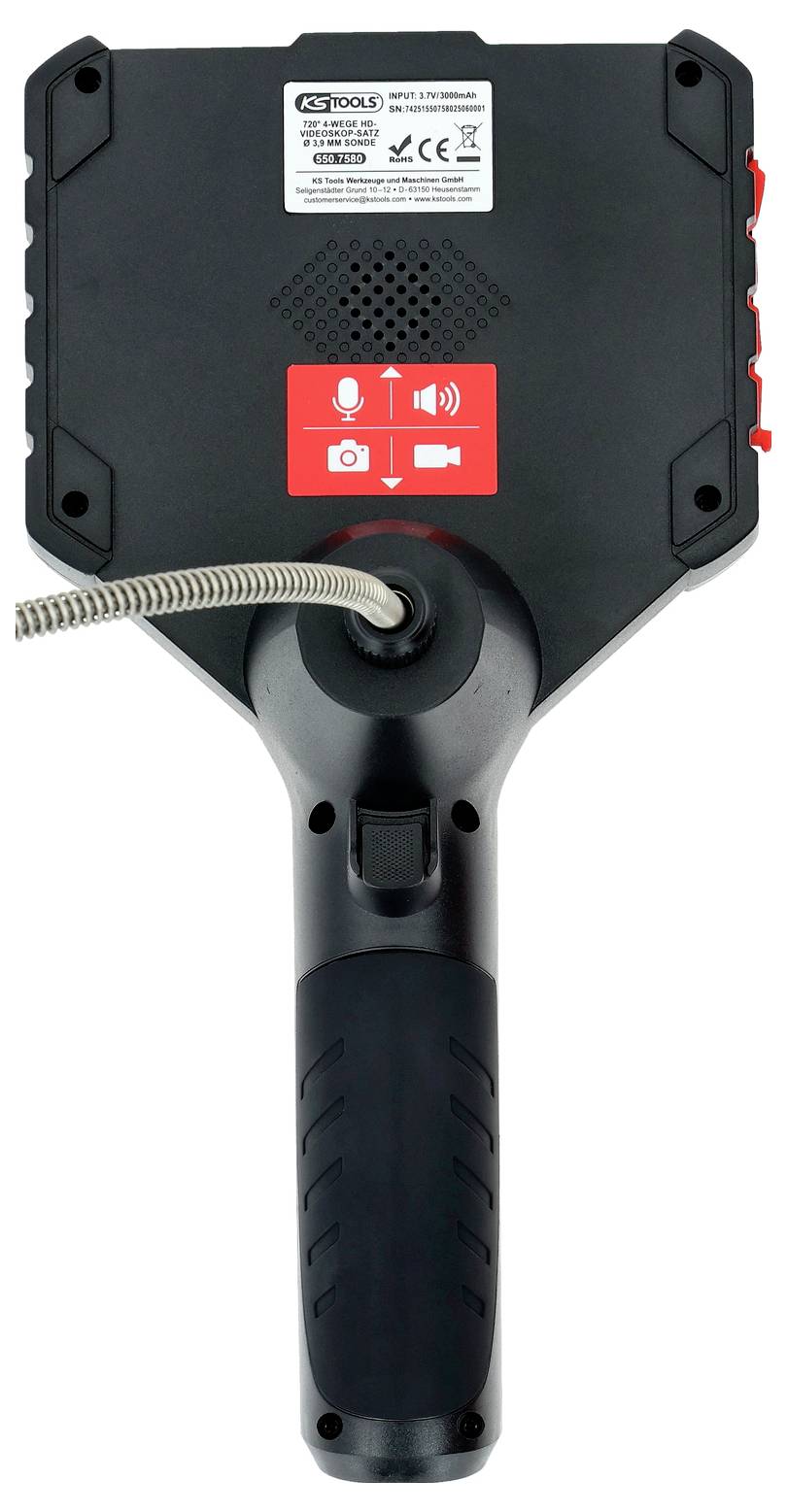

Handheld device with a black handle and square-shaped head featuring audio and light symbols. A flexible cable extends from the bottom.

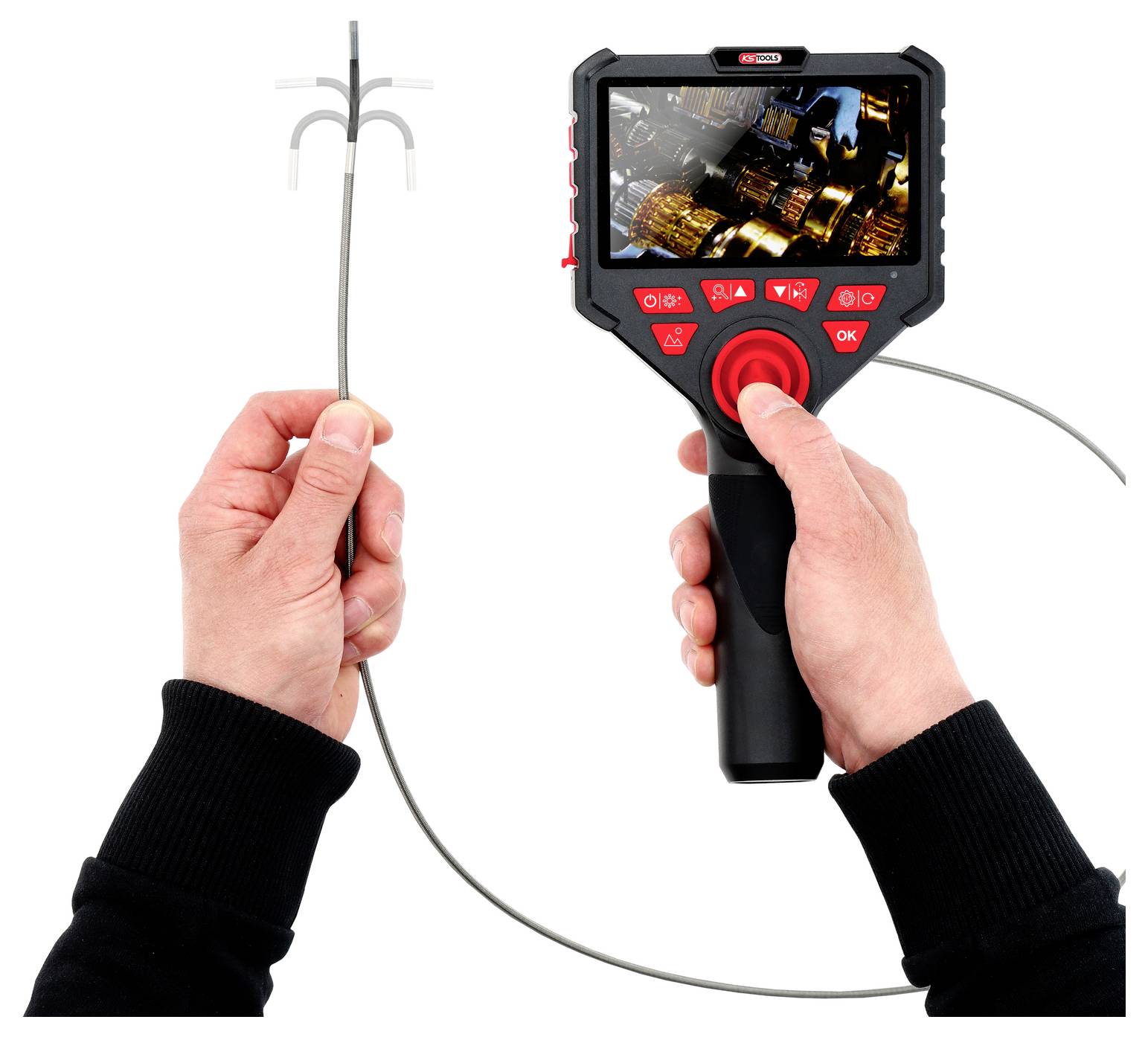

A person operates an inspection camera, examining machinery. The screen displays detailed internal components, highlighting diagnostic use.

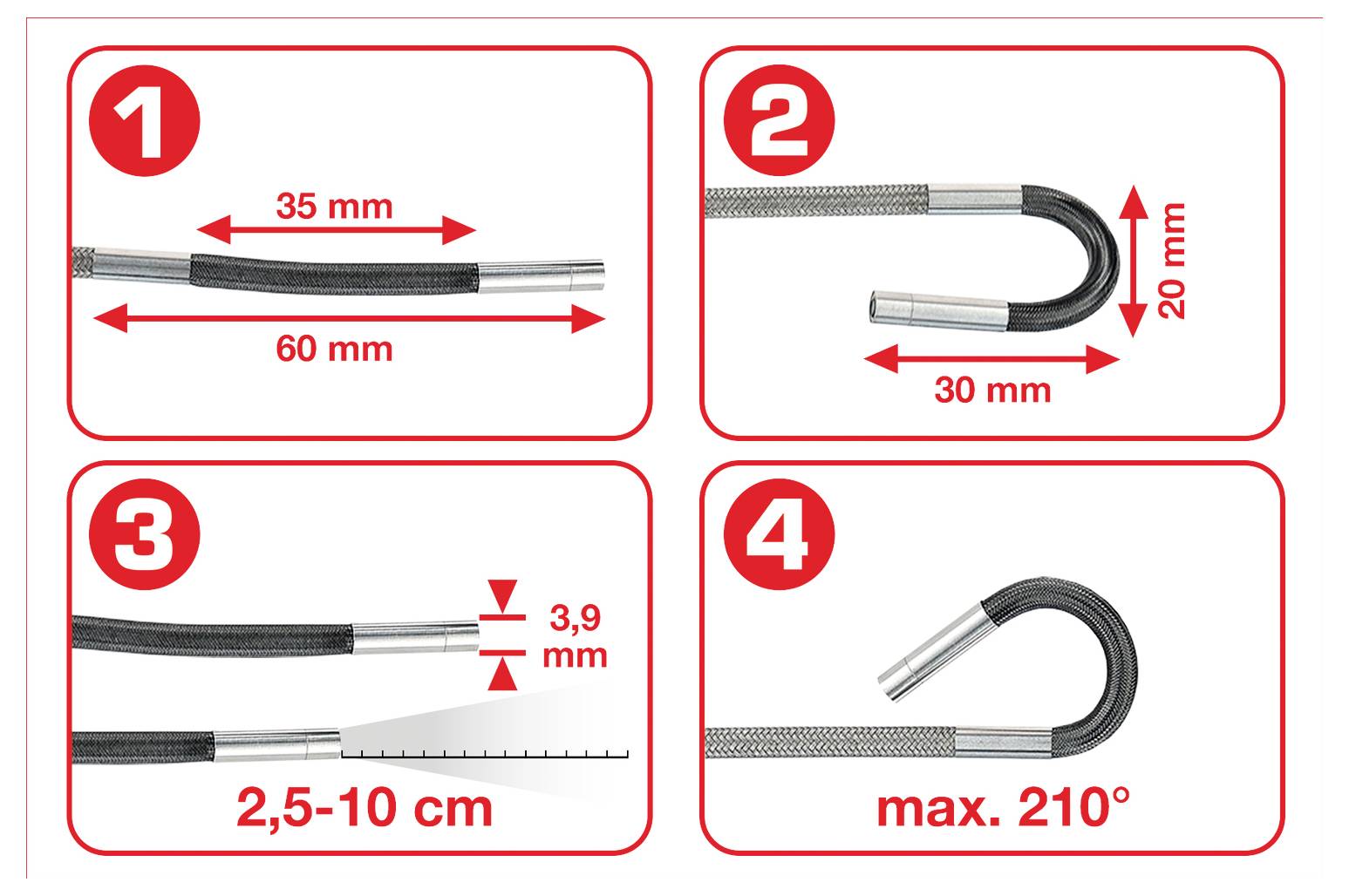

'Diagram showing bending instructions: 1. Max bend 35mm at 60mm length; 2. 30mm bend at 20mm height; 3. Adjust 2.5-10cm intervals; 4. Max angle 210°.'

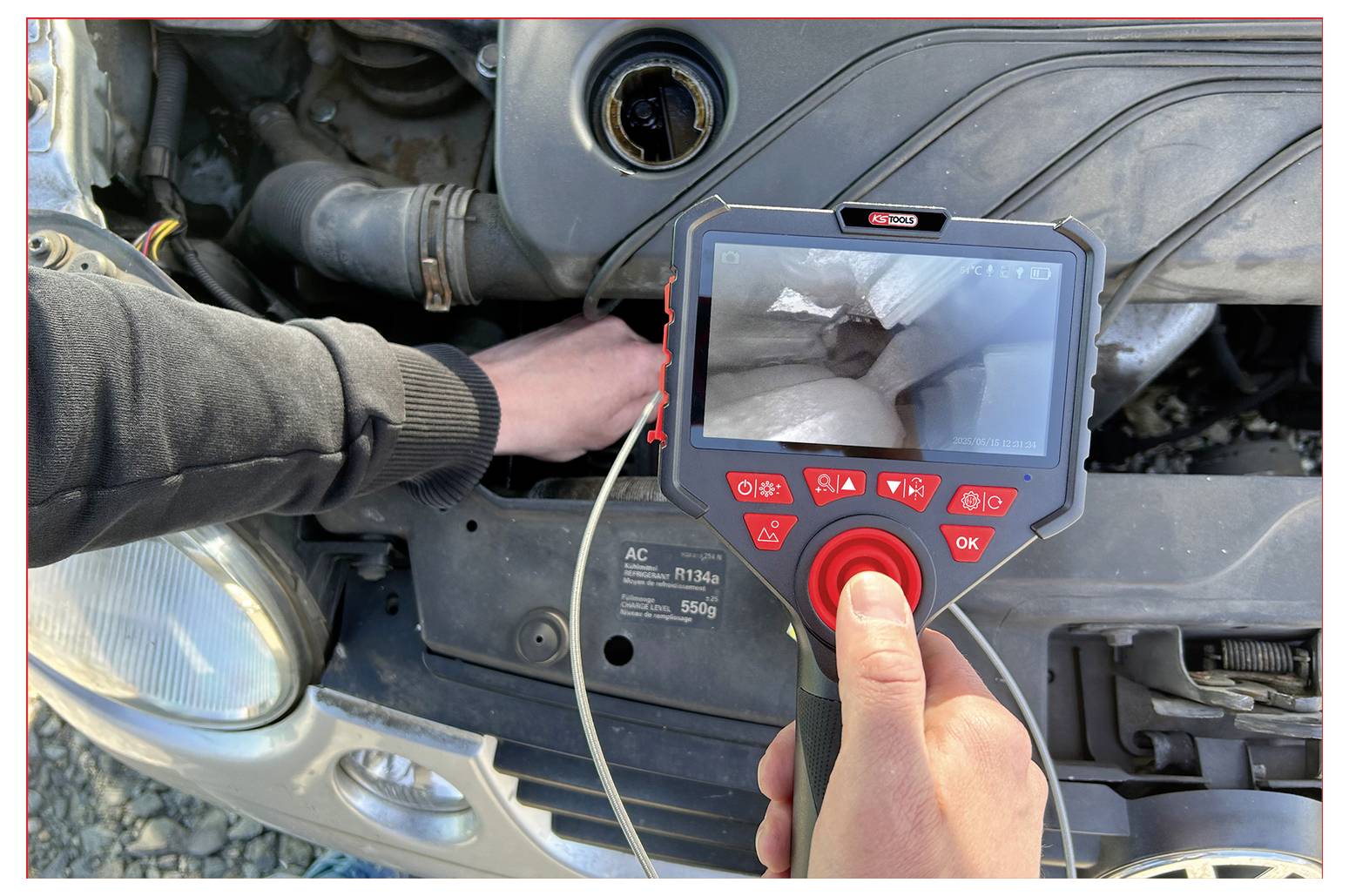

'A person uses a diagnostic device with a screen to inspect an area under a car hood, capturing a close-up view of an engine component.'

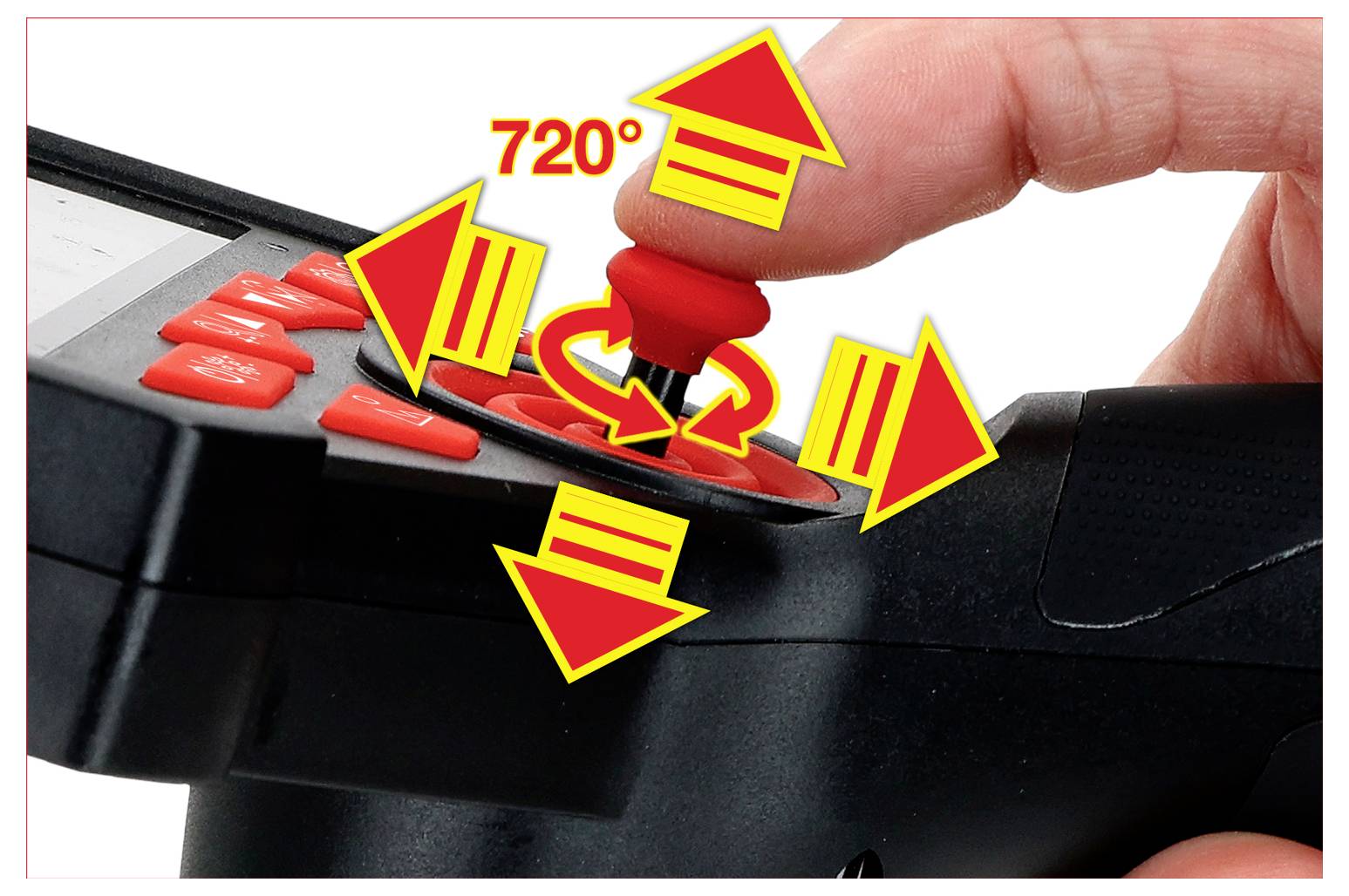

A hand operates a joystick on a black gaming controller, showing multidirectional arrows and '720°', indicating rotational movement capability.

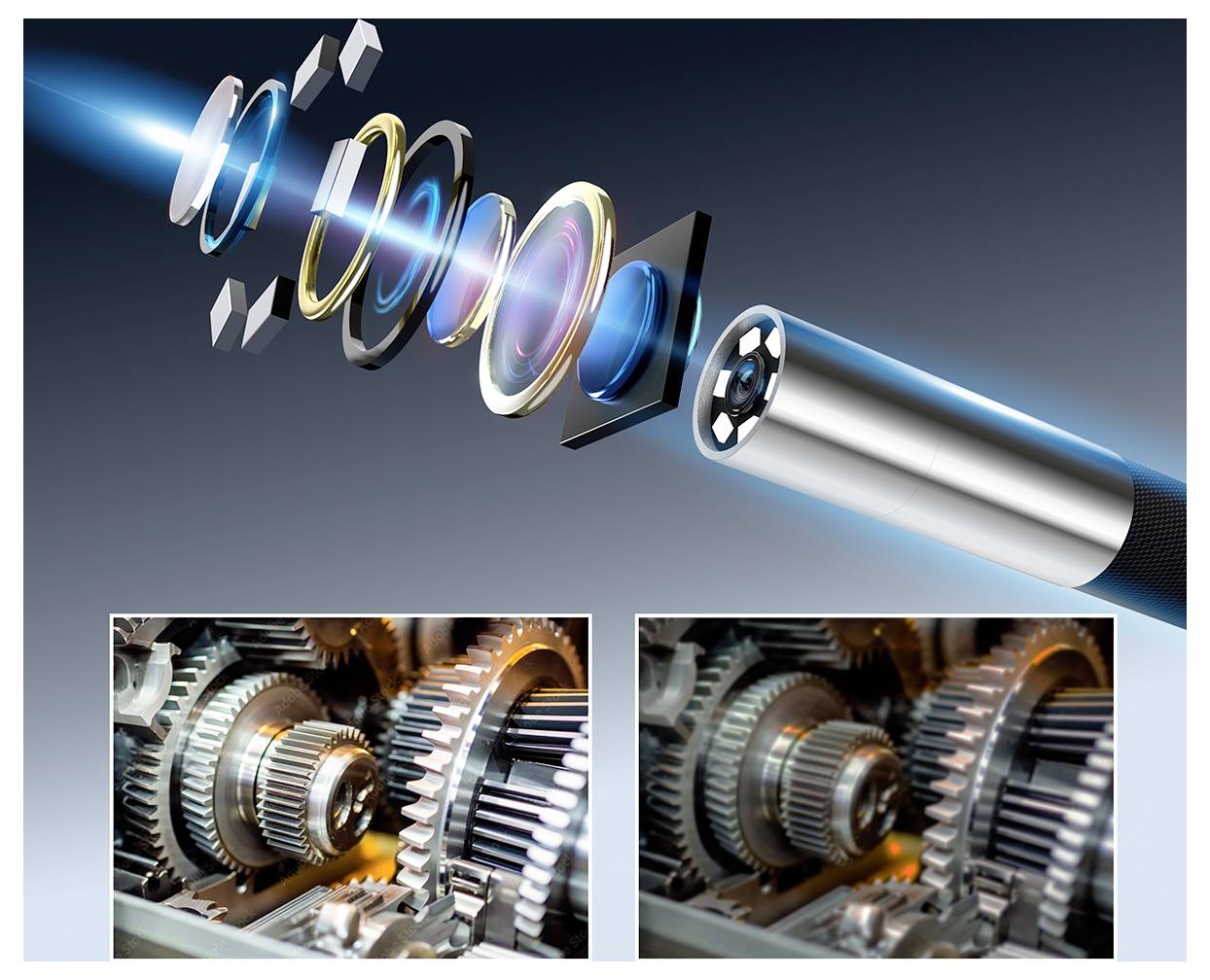

Exploded view of a camera lens assembly illustrating various lens components. Below, two images show detailed mechanical gears.
A hand holds a red and black HD inspection camera, highlighting features like 360-degree rotation, 210-degree angle, and 9.3mm lens.
1/15
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Report legal concerns

Highlights & Details

HD-video scope-set with Ø 3.9 mm 720° and 0° HD front camera probe, flexible PVC cover

  • 720° Joystick (4-way probe)
  • 3.9 mm HD camera - can be positioned freely
  • Joystick to control the camera probe
  • 6 dimmable mini-LED-lamps
  • Portable and mains-independent system
  • Optimum handling through work independent of power supply
  • Probes: Anti-kink because no fiber glass cable
  • Operating temperature from -10°C to +70°C.
  • Largest possible viewing angle through special camera in the probe head
  • Very good image and video quality
  • Image recording option in JPEG format
  • Video recording in AVI-format
  • many possible applications
  • With integrated battery, charging control lamp and light
  • Approx. 150 minutes of continuous operation
  • The device is charged via USB-C.
  • Including 32 GB memory card
  • With practical carrying case
  • This text is machine translated.

Technical specifications

Product type

Video borescope

Probe diameter

3.9 mm

Probe length

1 m

Endoscope features

Oil-resistant

Camera resolution

1920 x 1080 Pixel

Focus

Focused depth of field: 2.5 ~ 10 cm

IP67

Power supply (details)

With built-in rechargeable battery
Charging is done via USB-C.
Battery voltage: 3.7 V
Rechargeable battery capacity 3000 mAh (3.0 Ah)
Li-polymer rechargeable battery technology
Battery type 18650

Field of view

Öffnungswinkel: 70°

Light source

6 dimmable white mini-LED

Max. bend radius

30 mm

Weight

990 g

Length

1 m

Type

550.7580

Ambient temperature

-10°C to +70 °C

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3521528 KS Tools 550.7580 Video borescope Probe diameter: 3.9 mm Probe length: 1 m

What kind of Endoscope Cameras are you looking for?

Accessories

(*All information is plus legal VAT)

The necessary accessories are required to use the article as described.
