Name: LAPP 0031388/100 Data transfer cable UNITRONIC® FD Li2YCY (TP) A 3 x 2 x 0.25 mm² Black 100 m
Brand: LAPP
SKU: 3351290

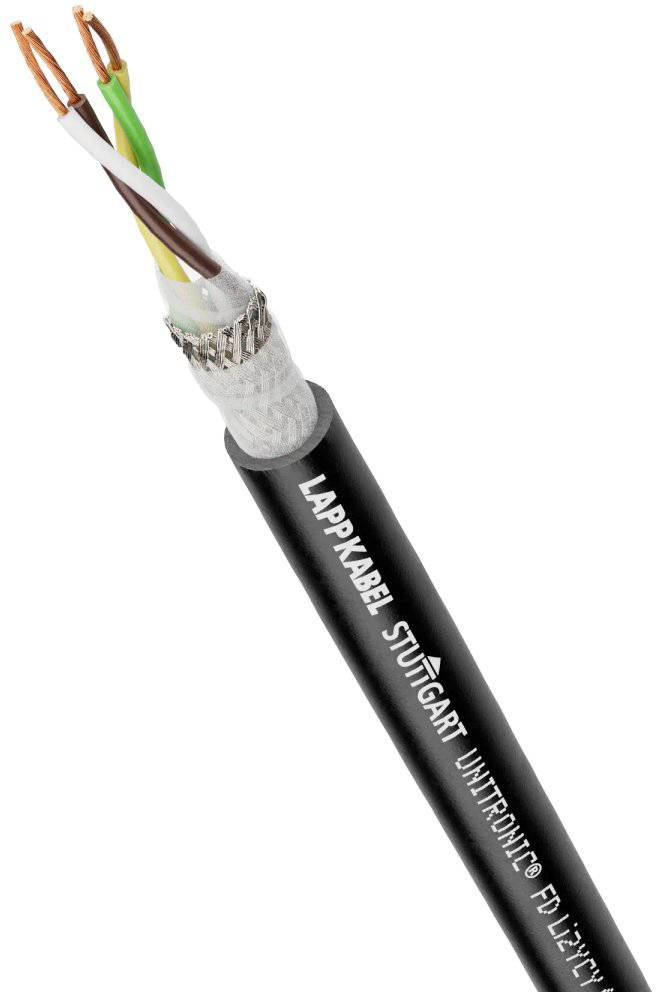

Close-up of a black-sheathed cable with exposed, coloured wire ends. Text on the cable: 'LAPPKABEL STUTTGART UNITRONIC FD'.

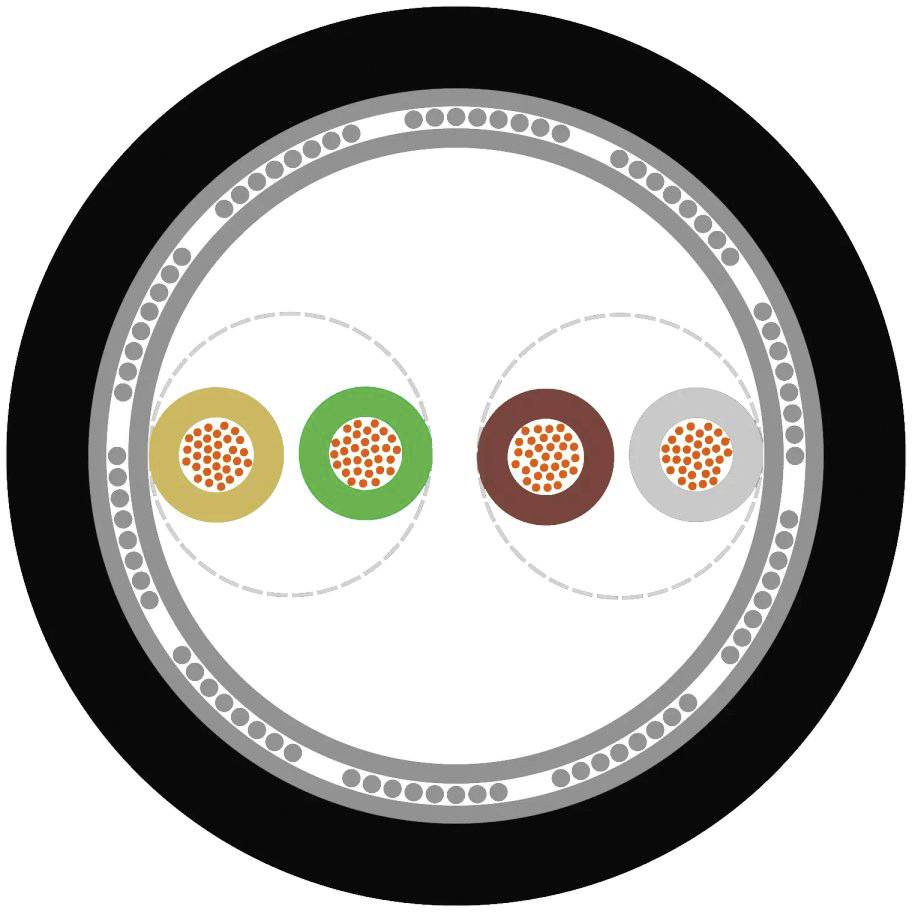

A schematic diagram of a cable cross-section with four coloured conductors: yellow, green, brown and grey, surrounded by a protective sheath.

1/2

Image similar

Product type

Data transfer cable

No. of leads

6 x

Cross section (each core)

0.25 mm²

Cable features

Shielded

Cable type

UNITRONIC® FD Li2YCY (TP) A

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Product type: Data transfer cable

Cable type: UNITRONIC® FD Li2YCY (TP) A

No. of leads: 6 x

Cross section (each core): 0.25 mm²

Twisted pair cabling (part 1): Yes (1)

Cross section: 3 x 2 x 0.25 mm²

Cable features: Shielded

Outside Ø: 7 mm

Factory colour: Black

Content: 100 m

Bend radius (no. of ODs for fixed installation): 4

Halogen-free: No

Shielded: Yes

Manufacturer part #: 0031388/100

Insulation material: Polyvinyl chloride

Min. temperature range (fixed installation): -40 °C

Max. temperature range (fixed installation): 70 °C

Max. length sold by the metre: 100 m

Type: UNITRONIC® FD Li2YCY (TP) A BE 3X2X0,25

: FALSE

: 0.25 mm²

: Other

: Colour

: Black

: Copper

: Polyvinyl chloride (PVC)

: -40-70 °C

: FALSE

: FALSE

: 7 mm

: FALSE

: Bare

: Other

: 28.0 mm

: Polyethylene (PE)

: Other

: Round

: FALSE

Documents & Downloads

Datasheet

Datasheet 3351290 LAPP 0031388/100 Data transfer cable UNITRONIC® FD Li2YCY (TP) A 3 x 2 x 0.25 mm² Black 100 m

User & Safety Instructions

User & Safety Instructions 3351290 LAPP 0031388/100 Data transfer cable UNITRONIC® FD Li2YCY (TP) A 3 x 2 x 0.25 mm² Black 100 m

Description

UNITRONIC ® FD Li2YCY (TP) A BE 3X2X0.25 Data cable low frequency; 3X2X0.25; Wire color code: DIN 47100; PVC; shielded; UL recognized; drag chain

This text is machine translated.

Description

UNITRONIC ® FD Li2YCY (TP) A BE 3X2X0.25 Data cable low frequency; 3X2X0.25; Wire color code: DIN 47100; PVC; shielded; UL recognized; drag chain

This text is machine translated.
