Name: LAPP 0033305/1000 Data cable UNITRONIC® LiYD11Y 5 x 0.25 mm² Black 1000 m
Brand: LAPP
SKU: 3357240

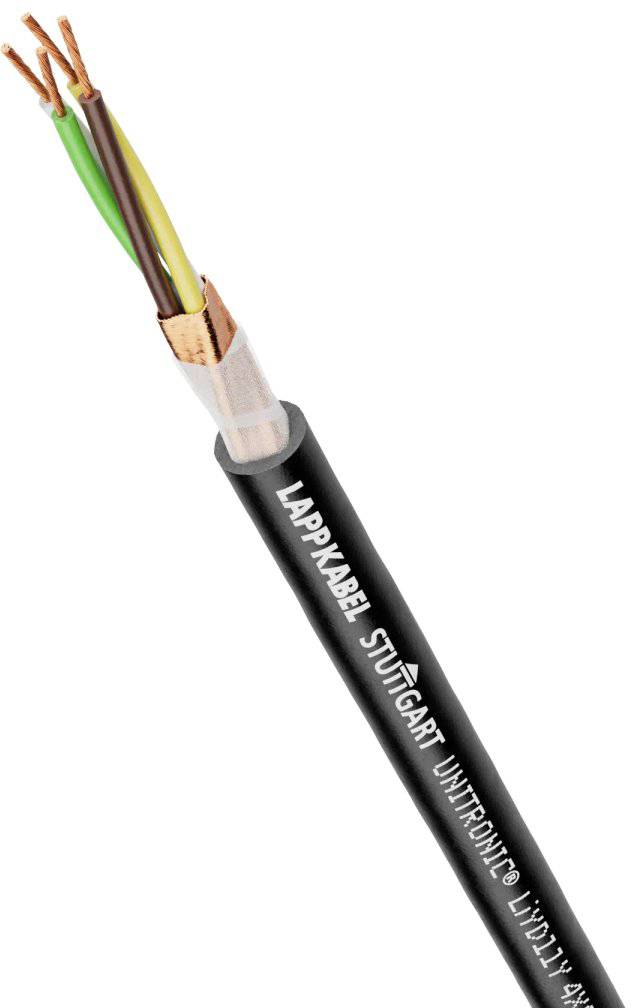

A black cable with exposed copper cores, marked with 'LAPPKABEL STUTTGART UNITRONIC'.

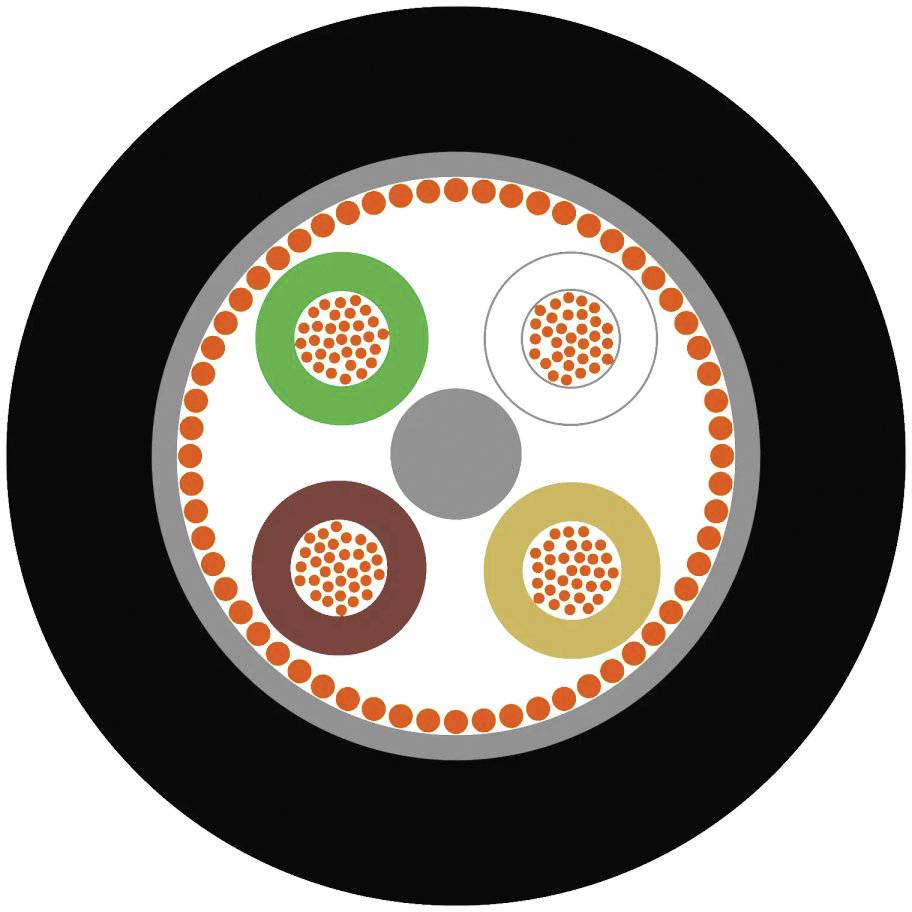

Cross-section of a cable with four colour-coded cores: green, brown, beige, and grey. Surrounded by a black sheath.

1/2

Image similar

Product type

Data cable

No. of leads

5 x

Cross section (each core)

0.25 mm²

Cable features

Shielded

Cable type

UNITRONIC® LiYD11Y

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Product type: Data cable

Cable type: UNITRONIC® LiYD11Y

No. of leads: 5 x

Cross section (each core): 0.25 mm²

Cross section: 5 x 0.25 mm²

Cable features: Shielded

Outside Ø: 6 mm

Factory colour: Black

Content: 1000 m

Bend radius (no. of ODs for fixed installation): 6

Bend radius (no. of ODs for flexible installation): 10

Sold per metre: Yes

Halogen-free: No

Shielded: Yes

Manufacturer part #: 0033305/1000

Insulation material: Polyurethane

Min. temperature range (flexible installation): -40 °C

Max. temperature range (flexible installation): 80 °C

Min. temperature range (fixed installation): -40 °C

Max. temperature range (fixed installation): 80 °C

Max. length sold by the metre: 1000 m

Type: UNITRONIC® LiYD11Y 5x0,25

: TRUE

: 0.25 mm²

: Polyvinyl chloride (PVC)

: Colour

: Black

: Copper

: Polyurethane (PUR)

: -40-80 °C

: 5

: FALSE

: FALSE

: 6 mm

: FALSE

: Bare

: 60.0 mm

: 36.0 mm

: Other

: Other

: Round

: FALSE

Documents & Downloads

Datasheet

Datasheet 3357240 LAPP 0033305/1000 Data cable UNITRONIC® LiYD11Y 5 x 0.25 mm² Black 1000 m

User & Safety Instructions

User & Safety Instructions 3357240 LAPP 0033305/1000 Data cable UNITRONIC® LiYD11Y 5 x 0.25 mm² Black 1000 m

Description

UNITRONIC® LiYD11Y 5x0.25 Data cable, low frequency, 5X0.25, wire color code: DIN 47100, PUR, shielded; flexible

This text is machine translated.

Description

UNITRONIC® LiYD11Y 5x0.25 Data cable, low frequency, 5X0.25, wire color code: DIN 47100, PUR, shielded; flexible

This text is machine translated.
