Name: LAPP 0035822/500 Data transfer cable UNITRONIC® LiYCY (TP) 2 x 2 x 0.75 mm² Grey 500 m
Brand: LAPP
SKU: 3351442

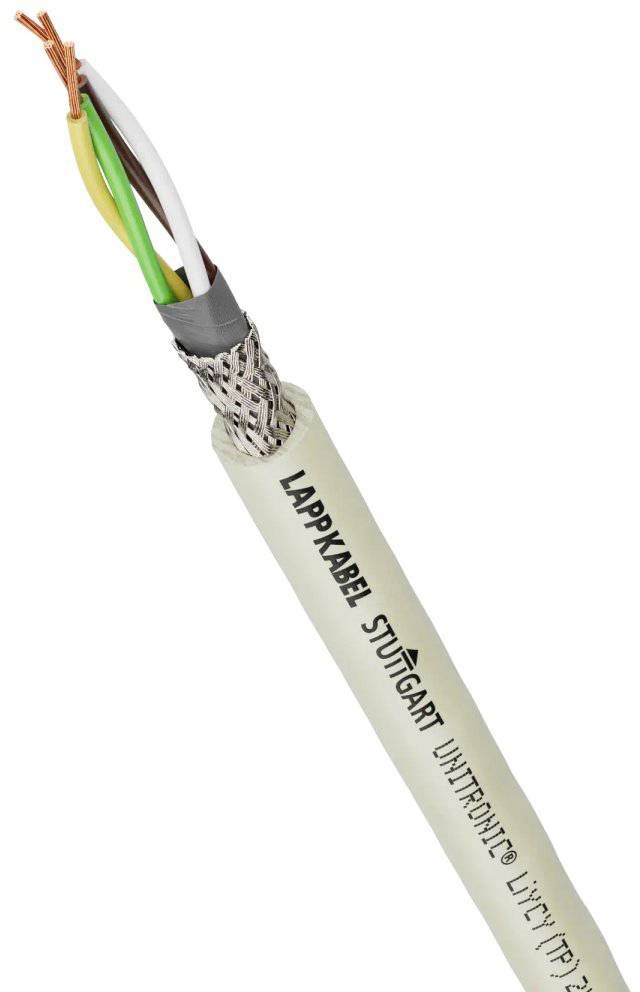

Insulated cable harness with multiple coloured wires, sheathed in a white protective jacket. Used for electrical connection.

Cross-section of a four-core cable with different insulation colours: Gold, Green, Brown and White, surrounded by a grey outer sheath.

1/2

Image similar

Product type

Data transfer cable

No. of leads

4 x

Cross section (each core)

0.75 mm²

Cable features

Flexible

Cable type

UNITRONIC® LiYCY (TP)

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Product type: Data transfer cable

Cable type: UNITRONIC® LiYCY (TP)

No. of leads: 4 x

Cross section (each core): 0.75 mm²

Twisted pair cabling (part 1): Yes (1)

Cross section: 2 x 2 x 0.75 mm²

Cable features: Flexible

Outside Ø: 10 mm

Factory colour: Grey

Content: 500 m

Bend radius (no. of ODs for fixed installation): 6.0

Bend radius (no. of ODs for flexible installation): 15.0

Sold per metre: Yes

Halogen-free: No

Shielded: Yes

Manufacturer part #: 0035822/500

Insulation material: Polyvinyl chloride

Min. temperature range (fixed installation): -40 °C

Max. temperature range (fixed installation): 80 °C

Max. length sold by the metre: 500 m

Type: UNITRONIC® LiYCY (TP) 4x2x0,75

: FALSE

: 0.75 mm²

: Polyvinyl chloride (PVC)

: Colour

: According to IEC/EN 60332-1-2

: Grey

: Copper

: Polyvinyl chloride (PVC)

: -40-80 °C

: FALSE

: FALSE

: 10.7 mm

: FALSE

: Bare

: Eca

: 160.5 mm

: 64.2 mm

: Other

: Other

: Round

: FALSE

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 3351442 LAPP 0035822/500 Data transfer cable UNITRONIC® LiYCY (TP) 2 x 2 x 0.75 mm² Grey 500 m

User & Safety Instructions

User & Safety Instructions 3351442 LAPP 0035822/500 Data transfer cable UNITRONIC® LiYCY (TP) 2 x 2 x 0.75 mm² Grey 500 m

Description

UNITRONIC ® LiYCY (TP) 4x2x0.75 Data cable low frequency; 4x2x0.75; Wire color code: DIN 47100; PVC; Shielded; flexible

This text is machine translated.

Description

UNITRONIC ® LiYCY (TP) 4x2x0.75 Data cable low frequency; 4x2x0.75; Wire color code: DIN 47100; PVC; Shielded; flexible

This text is machine translated.
